Quick Details
Quick Details
-
Place of Origin:
-
Shandong, China

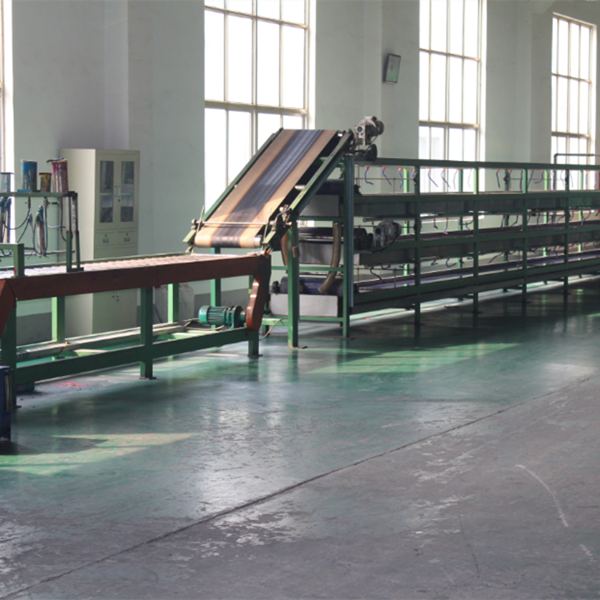

Product Description
| line speed | 5-25m/min |
| production roll width | 650mm |
| extraction height | 900mm |
| pick-up temperature | <=40℃ |
| cutter | max thickness of the tread cutting 20mm |
| max cutting width | 450mm |
| cutting angle adjustment range | 35 +-5 (adjustable) |
| length tolerance of the cutting component less than | +-3 |
| cutting frequency | 10-15cuts/min |
| pressure of compressed air | 0.6-0.8Mpa |
| total motor power | 23.3kw |
| cooling water consumption | 50-60 |
| dimension | 28000x2000x2800mm |
| weight | 20000kg |
| type | NSX-ML | NSX-L |
| inner tube specification | motorcycle and bicycle inner tube | light car inner tube |
| tube double layer width | <200mm | <420mm |
| line speed | 10-40m/min | 8-35m/min |
| beat the bore diameter | 6-8mm | 8-10mm |
| air pressure | 0.6Mpa | 0.7Mpa |
| total capacity | 14kw/h | 22kw/h |
| single machine weight | 5000kg | 7000kg |
| shape size | 23500x1000x850mm | 35000x1300x850mm |
| type | NJQ-120G4 | NJQ-120H6 | NJQ-120G6 | NJQ-160G8 |
| splicing width(mm) | 25-120 | 50-120 | 25-120 | 25-160 |
| double layer thickness(mm) | 1.6-6 | 1.6-6 | 1.6-6 | 1.6-6 |
| splicing force(kg)(max) | 1200 | 1200 | 1200 | 2000 |
| claming force(kg)(max) | 220 | 220 | 220 | 250 |
| tube circumference(mm)(min) | 300 | 600 | 600 | 800 |
| working pressure(Mpa) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
| working power | AC220V 50HZ | AC220V 50HZ | AC220V 50HZ | AC220V 50HZ |
| dimension(mm) | 950x1150x1700 | 950x1150x1700 | 950x1150x1700 | 975x1285x1715 |
| weight(kg) | 800 | 800 | 800 | 1500 |
| type | LLN-800 |
| total pressure | 120kn |
| plunger diameter | 140mm |
| high pressure | 10Mpa |
| low pressure | 1.8Mpa |
| steam working pressure | 0.7-1.0Mpa |
| motor power | 3kw |
| electric control system | PLC |
| dimension | 6500x1100x1800mm |
| type | XLB-D350x350x2 | XLB-D400x400x2 | XLB-D500X500X5 | XLB-D600X600X2/4 | XLB-D750X850X2 |
| mold closing force(mn) | 0.25 | 0.5 | 0.8 | 1.0 | 1.6 |
| hot plate spacing(mm) | 125 | 125 | 125 | 125/250 | 125 |
| hot plate layer | 2 | 2 | 2 | 2/4 | 2 |
| plunger stroke(mm) | 250 | 250 | 250 | 250/500 | 250 |
| heaing way | electric/steam | electric/steam | electric/steam | electric/steam | electric/steam |
| main motor power(kw) | 2.2 | 2.2 | 2.2 | 2.2 | 3 |
| product type | YLL-600 | YLL-800 | YLL-900 |
| working layer | 4-5 | 4-5 | 4-5 |
| outside diameter of plate(mm) | 600 | 800 | 900 |
| total pressure(T) | 60 | 90 | 100 |
| plunger diameter(mm) | 200 | 240 | 250 |
| steam working pressure(Mpa) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
| electric control system | PLC | PLC | PLC |
