Quick Details
-
Production Capacity:
-
40-230bag/min
-
Applicable Industries:
-
food, hardware, medical products, daily use products, stationary, toys, hotel supplies, electric products
-
Weight (KG):
-
500
-
Voltage:
-
220V 50/60Hz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BOGA
-
Dimension(L*W*H):
-
L)4020X(W)745X(H)1450mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Film width:
-
Max.350mm
-
Bag length:
-
65-190mm 90-260mm or 90-280mm 150-330mm
-
Bag width:
-
50-160mm
-
Product Height:
-
45-60MM
-
Packing Speed:
-
40-230 bag/min
-
Film roll diameter:
-
Max.320mm
-
Weight:
-
About 650KG
-
Name:
-
Semi-automatic pita bread automatic wrapping pack machine supplier
Quick Details
-
Function:
-
FILLING, Sealing, SLITTING, Wrapping
-
Packaging Type:
-
Bags, CANS, Capsule, Film, Foil, Pouch
-
Packaging Material:
-
Paper, Plastic, OPP,PE,PVC
-
Production Capacity:
-
40-230bag/min
-
Applicable Industries:
-
food, hardware, medical products, daily use products, stationary, toys, hotel supplies, electric products
-
Weight (KG):
-
500
-
Voltage:
-
220V 50/60Hz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BOGA
-
Dimension(L*W*H):
-
L)4020X(W)745X(H)1450mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Film width:
-
Max.350mm
-
Bag length:
-
65-190mm 90-260mm or 90-280mm 150-330mm
-
Bag width:
-
50-160mm
-
Product Height:
-
45-60MM
-
Packing Speed:
-
40-230 bag/min
-
Film roll diameter:
-
Max.320mm
-
Weight:
-
About 650KG
-
Name:
-
Semi-automatic pita bread automatic wrapping pack machine supplier
Best quality Semi-automatic pita bread automatic wrapping pack machine supplier
What technologlcal parameter of our Packing machine?
Best quality Semi-automatic pita bread automatic wrapping pack machine supplier |
|||
What feature of our Packing machine?
1. Double motor, double Panasonic transducer and PLC controller,flexible bag length setting and cutting,saving time and film.
2.human-machine interface, convenient and quick parameter settings.
3.Self diagnosis failure function, failure displayed clearly.
4.High sensitive optical electric color mark tracking system and digital input cut position, which make the sealing and cutting more accurate.
5.Separated PID control system for temperature, suitable for various packing materials.
6.Stopping the machine in selected position, no sticking on the knife and no waste of the film.
7.Simple driving system, reliable working, convenient maintenance.
8.All controlled by program, convenient for function adjusting and upgrading.
2.human-machine interface, convenient and quick parameter settings.
3.Self diagnosis failure function, failure displayed clearly.
4.High sensitive optical electric color mark tracking system and digital input cut position, which make the sealing and cutting more accurate.
5.Separated PID control system for temperature, suitable for various packing materials.
6.Stopping the machine in selected position, no sticking on the knife and no waste of the film.
7.Simple driving system, reliable working, convenient maintenance.
8.All controlled by program, convenient for function adjusting and upgrading.
You can also choose the machine model according to the size of the product.
| Modle | ALD-250 | ALD-320 | ALD-350 | ALD-400 | ALD-450 | ALD-600 | ALD-700 |
| Film Width | Max.250mm | Max.320mm | Max.320mm | Max.400mm | Max.450mm | Max.600mm | Max.700mm |
| Bag Length | 65-190mm | 65-190mm | 65-190mm | 130-230mm | 120-450mm | 120-450mm | 120-450mm |
| Bag Width | 30-110mm | 30-150mm | 50-160mm | 50-180mm | 50-180mm | 80-270mm | 100-330mm |
| Product Height | Max.40mm | Max.40mm | Max.45mm | Max.65mm | Max.80mm | Max.80mm | Max.80mm |
| Film Roll Diameter | Max.320mm | Max.320mm | Max.320mm | Max.320mm | Max.320mm | Max.320mm | Max.320mm |
| Packing Speed | 40-230 bags/min | 40-230 bags/min | 40-230 bags/min | 40-230 bags/min | 30-150 bags/min |
20-80
bags/min |
20-80
bags/min |
| Power Specification |
220V,50/60
Hz,2.4KW |
220V,50/60
Hz,2.4KW |
220V,50/60
Hz,2.4KW |
220V,50/60
Hz,2.8KW |
220V,50/60
Hz,2.8KW |
220V,50/60
Hz,3.2KW |
220V,50/60
Hz,3.2KW |
| Machine Size |
3770*670*
1450mm |
3770*670*
1450mm |
3770*670*
1450mm |
4020*800*
1450mm |
4020*800*
1450mm |
4380*970*
1500mm |
3770*670*
1450mm |
| Machine Weight | 500KG | 500KG | 500KG | 600KG | 700KG | 850KG | 900KG |

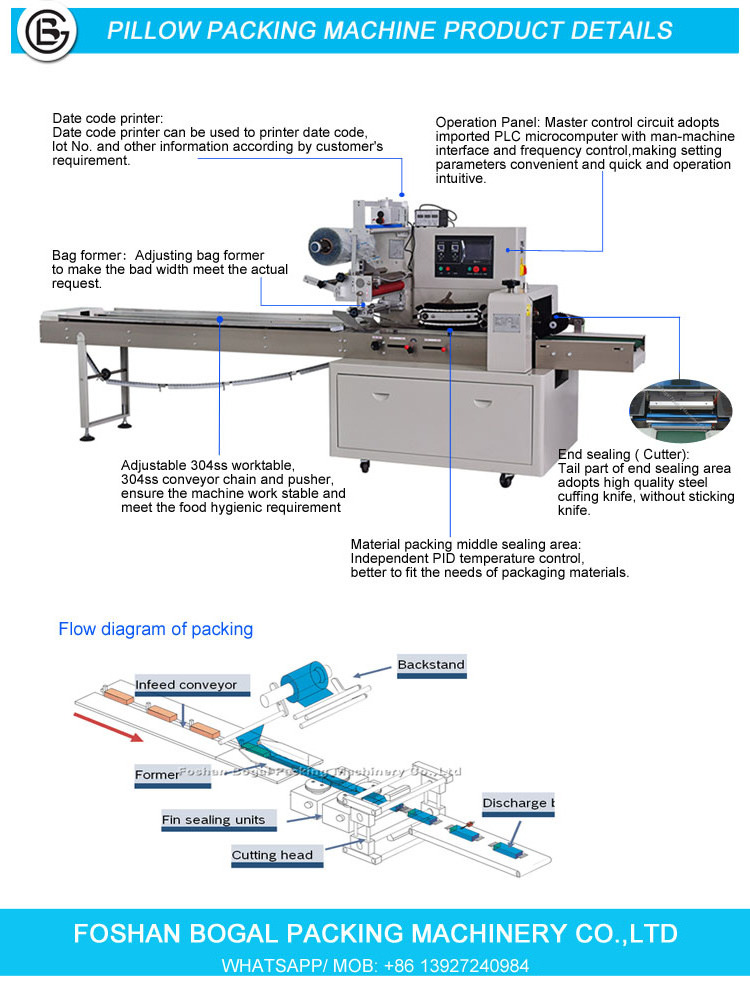

More Detailed Packing Machine Pictures
What is the product that our machine can pack?
| Food | cake, bread, meat muffin, flaky pastry, biscuits, green bean cake, several sausage in a bag, noodles, beef jerky, egg roll, etc. |
| Hardwares | hinge, stainless steel pipe, bearings , screw, nuts and washer, etc. |
| Hotel supplies | Soap, disposable comb, tooth paste and brush in one set. |
| Stationary | pencil, eraser, notebook, paper card, adhensive tape. |
| Electric products | battery, usb cable, earphone, user manual and accessories in one set. |
| Medical products | mask, glove, gauze, capsule. |
| Daily use products | plastic knife, fork, plate, sponge, scourer, wipes, several straws in a bag, cups, bottles, napkin etc. |
