Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Talos Plus
-
Dimension(L*W*H):
-
387 x 330 x 365mm
-
Weight:
-
16
-
Rated power/speed:
-
3.68kW(5HP)@3600RPM
-
Marketing Type:
-
Hot Product
-
Model & HP:
-
T200(6.5HP)
-
Bore x Stroke:
-
68 x 54mm
-
Speed:
-
3600RPM
-
Rated Output:
-
3.68kW(5HP)@3600RPM
-
Torque:
-
13N.m@2500RPM
-
Crankshaft Type:
-
Q-type, key shaft
-
Starting System:
-
Recoil Start
-
Fuel Tank Capacity:
-
3.6L / 0.95gal
-
Certification:
-
CE/EPA/CARB
Quick Details
-
Displacement:
-
196cc, 196cc
-
Emission Standard:
-
EURO 5
-
Power:
-
3.68kW
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Talos Plus
-
Dimension(L*W*H):
-
387 x 330 x 365mm
-
Weight:
-
16
-
Rated power/speed:
-
3.68kW(5HP)@3600RPM
-
Marketing Type:
-
Hot Product
-
Model & HP:
-
T200(6.5HP)
-
Bore x Stroke:
-
68 x 54mm
-
Speed:
-
3600RPM
-
Rated Output:
-
3.68kW(5HP)@3600RPM
-
Torque:
-
13N.m@2500RPM
-
Crankshaft Type:
-
Q-type, key shaft
-
Starting System:
-
Recoil Start
-
Fuel Tank Capacity:
-
3.6L / 0.95gal
-
Certification:
-
CE/EPA/CARB
Product Description

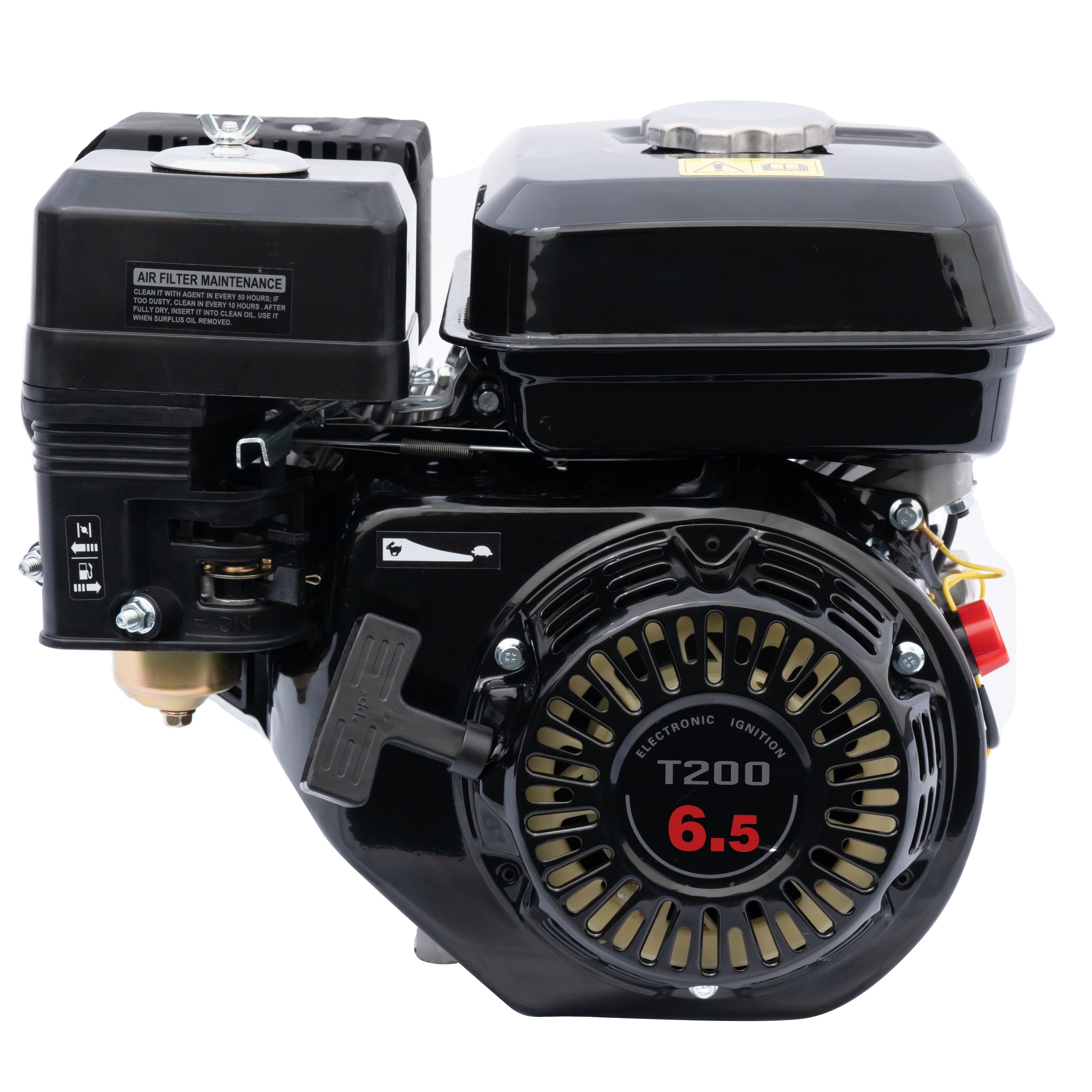

6.5 HP Air Cooled Horizontal Gasoline Engine T200
|
Model
|
T200
|
Engine Type
|
OHV, Single cylinder
|
||
|
Bore x Stroke
|
68 x 54mm
|
Displacement
|
196cc
|
||
|
Compression Ratio
|
8.5 : 1
|
Start Type
|
Recoil Start
|
||
|
Speed
|
3600RPM
|
Rated Output
|
3.68kW@360
0RPM
|
||
|
Maximum Output
|
4.0kW@3600RPM
|
Torque
|
13N.m@2500RPM
|
||
|
Fuel Consumption
|
395g/kW.h
|
Shaft Output
|
Horizontal
|
||
|
Crankshaft
|
Q-type
|
Cooling System
|
Air cooled
|
||
|
Fuel Type
|
Fuel Type
|
Fuel Tank Capacity
|
3.6L
|
||
|
Oil capacity
|
0.6L
|
Lubrication System
|
Forced splash
|
||
|
Low Oil Alert
|
Yes
|
Low Oil Shutdown
|
Yes
|
||
|
Governor System
|
Centrifugal mechanical
|
Throttle Control
|
Remote (cable)
|
||
|
Carburetor
|
Float
|
Choke Control
|
Manual
|
||
|
Net Weight
|
16kg
|
Gross Weight
|
17.5kg
|
||
|
Dimension(L x W x H)
|
387 x 330 x 365mm
|
CE Approval
|
Yes
|
||
|
Available Option
|
Electric start, PTO shaft
|
Warranty
|
1 Year
|
||
|
Shaft Rotation
|
(From PTO Shaft Side) Counterclockwise
|
|
|
||
|
Application
|
Pressure washer, pump, air compressor, water pump, log splitters, go-karts and etc.
|
|
|
||
Features + Benefits
OHV design for increased efficiency and optimal power transfer
High compression ratio for better fuel efficiency
High compression ratio for better fuel efficiency
Low vibration from precision-engineered components
Cast iron cylinder sleeve
Recoil start with compression release helps you start on the first pull
Low oil shutdown turns the engine off if it runs low on oil, preventing serious damage or failure
Cast iron cylinder sleeve
Recoil start with compression release helps you start on the first pull
Low oil shutdown turns the engine off if it runs low on oil, preventing serious damage or failure
