Used in large construction vehicles, ships, yachts, motorhomes,campervans, caravans,trucks, ATVs, UTV.
Contact us For product pricing, customization, or other inquiries:
Contact Us
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Blue Sea
-
Model Number:
-
6010
-
Max. Current:
-
300A
-
Product Name:
-
6007 1+2 m-Series Mini Selector Battery Switch
-
Volts:
-
32V DC
-
Continuous Amps:
-
300A
-
Cranking Rating:
-
675A
-
Intermittent Rating:
-
450A
-
No of Positions:
-
2
-
Color:
-
Red
-
PAYMENT:
-
T/T, PAYPAL
-
MOQ:
-
10pcs
-
OEM:
-
Available
-
Certification:
-
CE
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
32V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Blue Sea
-
Model Number:
-
6010
-
Max. Current:
-
300A
-
Product Name:
-
6007 1+2 m-Series Mini Selector Battery Switch
-
Volts:
-
32V DC
-
Continuous Amps:
-
300A
-
Cranking Rating:
-
675A
-
Intermittent Rating:
-
450A
-
No of Positions:
-
2
-
Color:
-
Red
-
PAYMENT:
-
T/T, PAYPAL
-
MOQ:
-
10pcs
-
OEM:
-
Available
-
Certification:
-
CE
Product Description
Manual Battery Switches m-series
DC 32V 6010 m-Series Dual Circuit Master Battery Switch
Simultaneously switches two isolated battery banks
|
Product Name
|
m-Series 6010 Mini Dual Circuit Battery Switch
|
|
Switch Positions
|
2
|
|
Switch Type
|
dual circuit
|
|
Battery Inputs
|
2
|
|
Max Voltage
|
32V DC
|
|
Battery Combine
|
YES
|
|
Continuous Rating
|
300A
|
|
Cranking Rating 30s
|
675A per circuit
|
|
Intermittent Rating
|
450A (5 min)
|
|
Color
|
Red
|
|
Mount Holes
|
Accept #10 screw
|
|
Stud Material
|
Tinned copper
|
|
Terminal Stud
|
M10 3/8''-16
|
|
N.W
|
360g
|
|
Cable Size
|
4/0 AWG
|
Applications
Function: Dual circuit enhancement, switching two separate battery packs simultaneously
• Simultaneously switches two isolated battery banks or circuits. May be used to switch the positive and negative conductors for
required applications.
required applications.
• Tin-plated copper studs for maximum conductivity and corrosion resistance
• Studs accept 3/8" (M10) ring terminals
• One-piece terminal stud design never loosens over time
• Isolating cover with three snap-off side pieces protects rear contacts and allows wire access in any direction

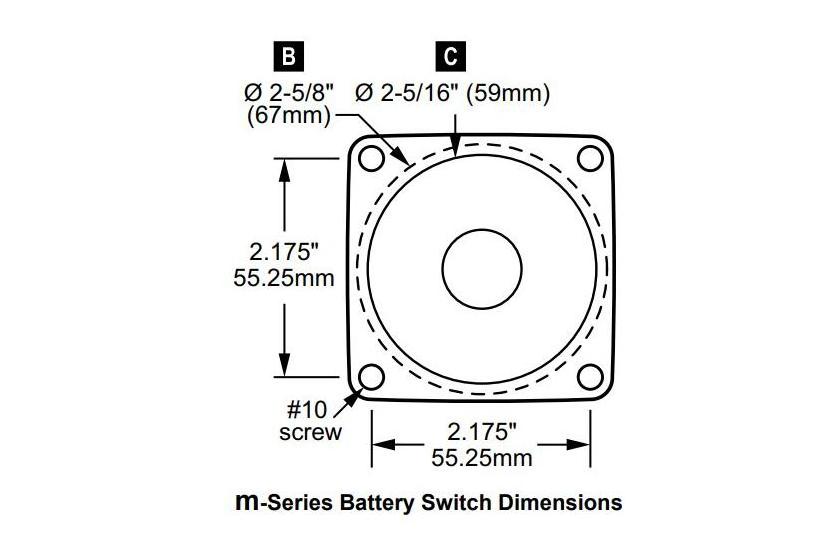

Dimension
