Quick Details
-
Brand Name:
-
KAIHUI
-
Model Number:
-
KDC350-24
-
Output Frequency:
-
47-63 Hz
-
Output Current:
-
12A/1A
-
Product Name:
-

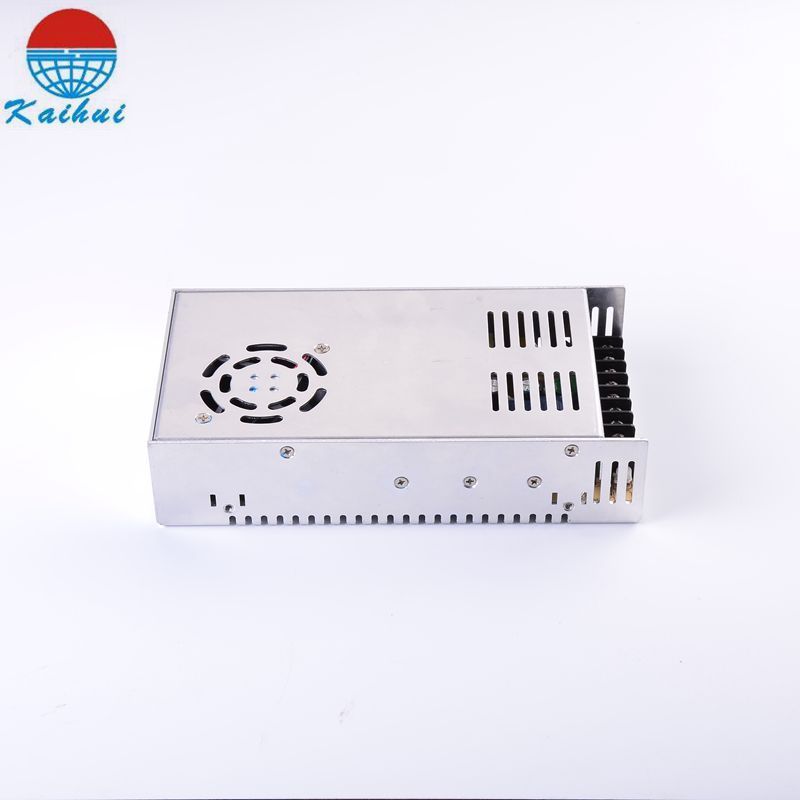

battery backup power supply 350w 24v
-
Size:
-
215*110*50mm
-
Protection:
-
Short circuit, overload, overvoltage
-
Safety Standards:
-
GB4943
-
Efficiency:
-
>85% @ 220V AC
-
Certification:
-
RoHS ISO9001
-
Warranty:
-
2 Years
-
Application:
-
ecurity equipment, power engineering, CCTV camera
-
OEM/ODM:
-
Yes
-
Weight:
-
1KG
Quick Details
-
Input Voltage:
-
88~132V,176~264V AC
-
Output Voltage:
-
27.6V/+27.6V(charging)
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KAIHUI
-
Model Number:
-
KDC350-24
-
Output Frequency:
-
47-63 Hz
-
Output Current:
-
12A/1A
-
Product Name:
-
battery backup power supply 350w 24v
-
Size:
-
215*110*50mm
-
Protection:
-
Short circuit, overload, overvoltage
-
Safety Standards:
-
GB4943
-
Efficiency:
-
>85% @ 220V AC
-
Certification:
-
RoHS ISO9001
-
Warranty:
-
2 Years
-
Application:
-
ecurity equipment, power engineering, CCTV camera
-
OEM/ODM:
-
Yes
-
Weight:
-
1KG
Product Description
| Output accuracy | ±5% | ||||
| Line Regulation | ±0.5% ; ± 1% | ||||
| Load Regulation | ±0.5% ; ±4% | ||||
| Inrush current | |||||
| Leakage Current | |||||
| Over load protection | |||||
| Over voltage | |||||
| OVER TEMPERATURE | |||||
| Note: |
1.All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation and so on; 3. Ripple Test: 30cm long strands connect the power supply and the load, the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end; 4. Line regulation: at rated load conditions, the input voltage changes from low to high measured; 5. Load regulation: the measured output load from 0 to 100% load change measured; |
