Quick Details
-
Mold Height(mm):
-
150 - 400 mm
-
Ejector Number:
-
5
-
Ejector Stroke(mm):
-
125 mm
-
Ejector Force(kN):
-
50 kN
-
Theoretical Shot Volume(cm³):
-
180 cm³
-
Injection Rate (g/s):
-
98 g/s
-
Injection Weight (g):
-
162 g
-
Screw Speed (rpm):
-
1 - 190 rpm
-
Screw diameter (mm):
-
38 mm
-
Screw L/D Ratio:
-
20.5
-
Distance between Tie Bars:
-
385*350mm
-
Weight (KG):
-
3400 kg
-
Place of Origin:
-
Jiangsu, China
-
Open Stroke(mm):
-
320 mm
-
Model Number:
-
BST-1000A
-
Brand Name:
-
BEST Machine
-
Power (kW):
-
18.6 kW
-
Product name:
-
Chinese Mini High Plastic Water Taps
-
Injection pressure:
-
183 Mpa
-
Mould thickness:
-
150-400 mm
-
Ejector tonnage:
-
50 KN
-
Ejector number:
-
5 PieceS
-
Hole diameter:
-
100 mm
-
Max pump pressure:
-
16 Mpa
-
Machine dimension:
-
4.3*1.5*1.6 m
-
Machine weight:
-
3.4 t
-
Oil tank capacity:
-
180 L
Quick Details
-
Distance between Tie Bars(Width)(mm):
-
385mm
-
Distance between Tie Bars(Height)(mm):
-
350mm
-
Plasticizing Capacity(g/s):
-
98
-
Mold Height(mm):
-
150 - 400 mm
-
Ejector Number:
-
5
-
Ejector Stroke(mm):
-
125 mm
-
Ejector Force(kN):
-
50 kN
-
Theoretical Shot Volume(cm³):
-
180 cm³
-
Injection Rate (g/s):
-
98 g/s
-
Injection Weight (g):
-
162 g
-
Screw Speed (rpm):
-
1 - 190 rpm
-
Screw diameter (mm):
-
38 mm
-
Screw L/D Ratio:
-
20.5
-
Distance between Tie Bars:
-
385*350mm
-
Weight (KG):
-
3400 kg
-
Place of Origin:
-
Jiangsu, China
-
Open Stroke(mm):
-
320 mm
-
Model Number:
-
BST-1000A
-
Brand Name:
-
BEST Machine
-
Power (kW):
-
18.6 kW
-
Product name:
-
Chinese Mini High Plastic Water Taps
-
Injection pressure:
-
183 Mpa
-
Mould thickness:
-
150-400 mm
-
Ejector tonnage:
-
50 KN
-
Ejector number:
-
5 PieceS
-
Hole diameter:
-
100 mm
-
Max pump pressure:
-
16 Mpa
-
Machine dimension:
-
4.3*1.5*1.6 m
-
Machine weight:
-
3.4 t
-
Oil tank capacity:
-
180 L
Products Description
Best Machine BST-1000A 100 ton Plastic Injection Molding Machine
The injection molding machine can be used to produce plastic water taps .
Pictures Of Finished Products Made By Our Machine
Plastic water taps
The specifications are as follows:
|
MODEL
|
|
BST-1000A
|
|
|||
|
INJECTION UNIT
|
|
A
|
B
|
|||
|
Screw Diameter
|
mm
|
36
|
38
|
|||
|
Shot Size(Theoretical)
|
cm
3
|
143
|
180
|
|||
|
Shot Weight
|
g
|
128
|
162
|
|||
|
Injection Pressure
|
MPa
|
183
|
164
|
|||
|
Injection Rate
|
g/s
|
90
|
98
|
|||
|
Screw L/D Ratio
|
L/D
|
21.6
|
20.5
|
|||
|
Screw Speed
|
r.p.m
|
0-190
|
|
|||
|
Nozzle Diameter
|
srmm
|
10
|
|
|||
|
CLAMPING UNIT
|
|
|
|
|||
|
Clamp Tonnage
|
KN
|
1000KN
|
|
|||
|
Toggle Stroke
|
mm
|
320
|
|
|||
|
Mould Thickness
|
mm
|
150-400
|
|
|||
|
Space Between Tie-bars
|
mm
|
385*350
|
|
|||
|
Ejector Stroke
|
mm
|
125
|
|
|||
|
Ejector Tonnage
|
KN
|
50
|
|
|||
|
Ejector Number
|
Piece
|
5
|
|
|||
|
Hole Diameter
|
mm
|
100
|
|
|||
|
OTHERS
|
|
|
|
|||
|
Heat Power
|
KW
|
7.6
|
|
|||
|
Max. Pump Pressure
|
MPa
|
16
|
|
|||
|
Pump Motor Power
|
KW
|
11
|
|
|||
|
Valve Size
|
mm
|
10
|
|
|||
|
Machine Dimension
|
m
|
4.3*1.5*1.6
|
|
|||
|
Machine Weight
|
T
|
3.4
|
|
|||
|
Oil Tank Capacity
|
L
|
180
|
|
|||

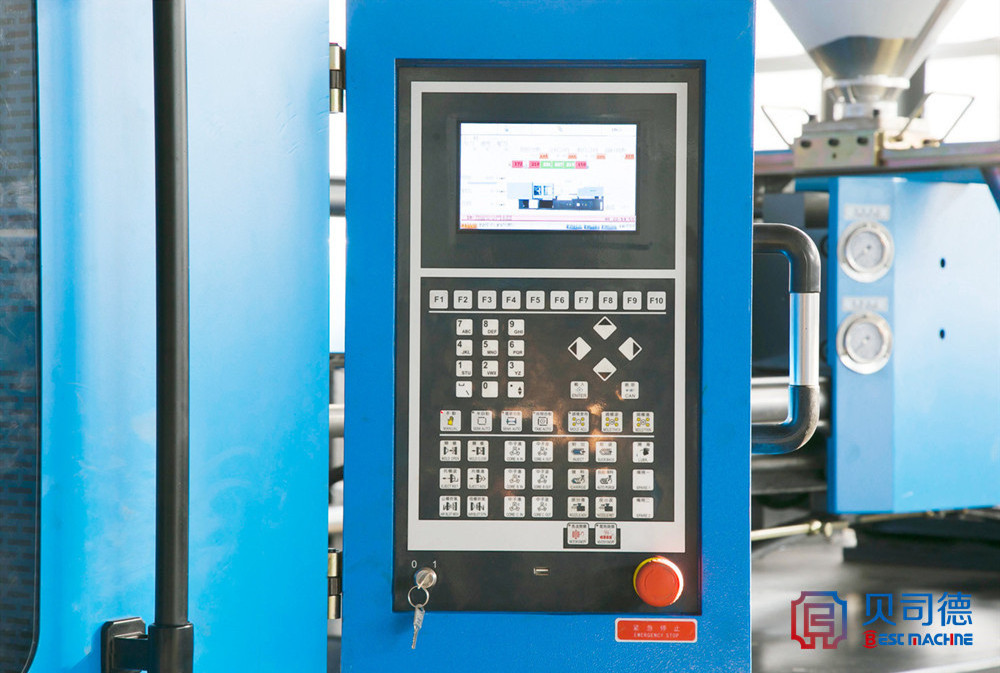

Micropcomputer
The machine is controled by
TECHMATION microcomputer, which makes the
work reliable and automatic in high level.
The advantages are as follows:
1. L
arge LCD screen
2.
Multi-language control interface: Chinese, English, Russian, Spanish, French, Arabic, etc.
3. Can save 100 sets of mould parameter.
4.
Automatic alarm, can display problem location, easy for maintenance.
Screw
Using Screw for feeding raw material, allowing p
rocessing of various materials.
Strong plasticizing ability, high injection speed.
Using resistance heating coils to heat the barrel, adopting cold screw protecting device, the screw will not operate until the temperature reaches the setting value.
Safety Door
Adopts e
lectrical and mechanical double safety device. The mould will not clamp when the door is open, which makes the production process safer and reliable.
Clamping Mechanism & Pull Rod
5-point double-elbow clamping mechanism allows a high and stable clamping speed.
Pull rods are made of high-quality steel, chrome-plated, makes the service life longer.
Ejector Device
Multi-point hydraulic ejector device, can choose the suitable number of ejector rod according to the actual working needs. It makes the d
emolding more even
Mould Adjustment Device
Mould adjustment device is drive by hydraulic controlled gear transmission, which is easy for operation.
Electric Gauge
Imported travel switch or electronic gauge, makes the operation in higher precise.
Packing & Shipping
We take care of our machine packing and loading.
Injection machine with anti-rust process, make sure no rust due to ocean shipment.
Each package would be fixed stable inside container, make sure no damage or crash during whole shipment.
We will take photos of loading, and send to you for reference before shipping.
After Sales Service
1.
Free spare parts
within warranty period.
2.
Field installation, commissioning and training.
3.
Field maintenance and repair service.
4.
Video technical support.
5. 24 hours online service
