Quick Details
-
Mold Height(mm):
-
170 - 450 mm
-
Ejector Stroke(mm):
-
120 mm
-
Ejector Force(kN):
-
40 kN
-
Theoretical Shot Volume(cm³):
-
256 cm³
-
Injection Rate (g/s):
-
90 g/s
-
Injection Weight (g):
-
220 g
-
Screw Speed (rpm):
-
1 - 220 rpm
-
Screw diameter (mm):
-
42 mm
-
Distance between Tie Bars:
-
420*380mm
-
Weight (KG):
-
3500
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
360 mm
-
Model Number:
-
KBD1380
-
Brand Name:
-
KEBIDA
-
Power (kW):
-
14 kW
-
Automatic:
-
Yes
-
max. mold thickness:
-
450mm
-
min. mold thickness:
-
170mm
-
space Between Tie Bars:
-
420mm*380mm
-
Other Function:
-
pp, pe, ps, pu, tpu, pet, pa, pvc, ppr, abs, acrylic, etc processing
-
Product name:
-
pet preform injection molding machine
-
machine purpose:
-
This machine is suitable for making various size pet preforms.
-
machine warranty:
-
stable quality, whole machine 1 year.
-
discount:
-
discount could be made according to quantity.
-
Plastic Type:
-
pp, pe, ps, pu, tpu, pet, pa, pvc, ppr, abs, pmma, Thermoplastic
-
Certification:
-
CE ISO9001
-
Marketing Type:
-
Hot Product 2021
Quick Details
-
Distance between Tie Bars(Width)(mm):
-
420mm
-
Distance between Tie Bars(Height)(mm):
-
380mm
-
Plasticizing Capacity(g/s):
-
14
-
Mold Height(mm):
-
170 - 450 mm
-
Ejector Stroke(mm):
-
120 mm
-
Ejector Force(kN):
-
40 kN
-
Theoretical Shot Volume(cm³):
-
256 cm³
-
Injection Rate (g/s):
-
90 g/s
-
Injection Weight (g):
-
220 g
-
Screw Speed (rpm):
-
1 - 220 rpm
-
Screw diameter (mm):
-
42 mm
-
Distance between Tie Bars:
-
420*380mm
-
Weight (KG):
-
3500
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
360 mm
-
Model Number:
-
KBD1380
-
Brand Name:
-
KEBIDA
-
Power (kW):
-
14 kW
-
Automatic:
-
Yes
-
max. mold thickness:
-
450mm
-
min. mold thickness:
-
170mm
-
space Between Tie Bars:
-
420mm*380mm
-
Other Function:
-
pp, pe, ps, pu, tpu, pet, pa, pvc, ppr, abs, acrylic, etc processing
-
Product name:
-
pet preform injection molding machine
-
machine purpose:
-
This machine is suitable for making various size pet preforms.
-
machine warranty:
-
stable quality, whole machine 1 year.
-
discount:
-
discount could be made according to quantity.
-
Plastic Type:
-
pp, pe, ps, pu, tpu, pet, pa, pvc, ppr, abs, pmma, Thermoplastic
-
Certification:
-
CE ISO9001
-
Marketing Type:
-
Hot Product 2021

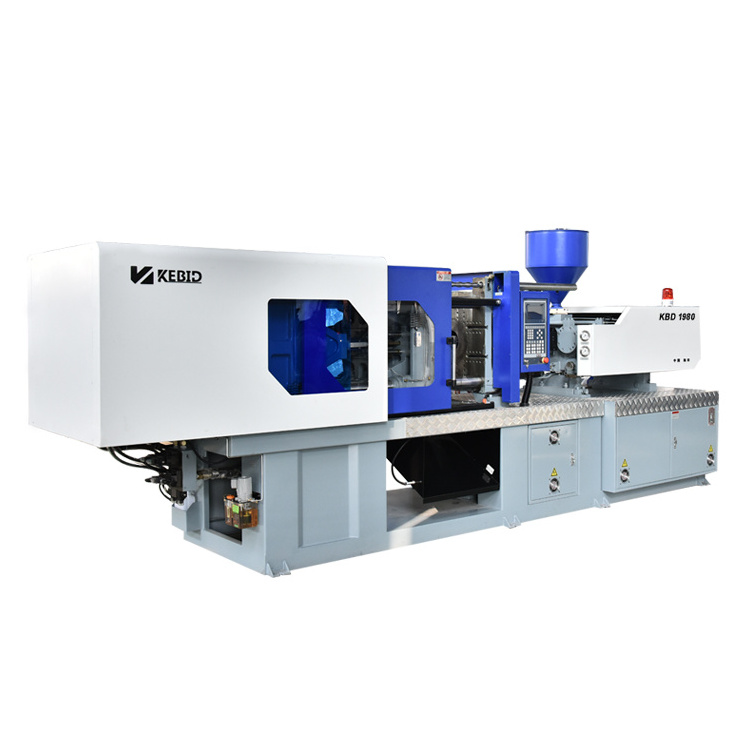

Product Overviews
Injection molding machines are also known as injection molding machines or injection machines. It is the main molding equipment for thermoplastic or thermosetting plastics using plastic molding dies to make plastic products of various shapes. Divided into vertical, horizontal, all-electric. The injection molding machine heats the plastic and applies a high pressure to the molten plastic to eject it to fill the mold cavity.
Machine details
| ITEM | KBD1380 | |||
| INJECTION UNIT | Unit | A | B | C |
| SCREW DIA | mm | 40 | 42 | 45 |
| SHOT VOLUME(THEORETICAL) | cm3 | 232 | 256 | 294 |
| INJECTION WEIGHT(PS) | g | 197 | 220 | 249 |
| INJECTION PRESSURE | Mpa | 168 | 152 | 132 |
| SCREW SPEED | rpm | 0-220 | ||
| CLAMPING UNIT | ||||
| CLAMPING FORCE | KN | 1380 | ||
| TOGGLE STROKE | mm | 360 | ||
| SPACE BETWEEN TIE BARS | mm | 420*380 | ||
| MAX.MOLD HEIGHT | mm | 450 | ||
| Min.MOLD HEIGHT | mm | 170 | ||
| EJECTOR STROKE | mm | 120 | ||
| EJECTOR TONNAGE | KN | 45 | ||
| OTHERS | ||||
| PUMP MOTER POWER | Kw | 13 | ||
| HEATING POWER | Kw | 7.5 | ||
| MACHINE DIMENSION(L*W*H) | m | 4.3*1.3*1.7 | ||
| MACHINE WEIGHT | T | 3.5 | ||
Product Description
- Strong rigidity of the template and Stable operation
- The optimized front joint connecting rod adopts integral casting, which has good rigidity and stable operation.
- The railings and guides are made of aluminum/copper sleeves or self-lubricating guide sleeves, which have a special wear resistance and low friction coefficient. it dramatically increases the life service of the draw bar.
