Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
yalight
-
Model Number:
-
YLRS-180
-
Output Frequency:
-
47-63Hz
-
Output Current:
-
7.5A
-
Working temperature:
-
- 10 ~ + 40 ℃
-
Storage temperature:
-
- 20 ~ + 60 ℃
-
Holding time:
-
10 ms (typical)
-
Boot time:
-
2 s or less (typical)
-
Safety standards:
-
GS
-
The cooling way:
-
Self-Cooling
Quick Details
-
Output Power:
-
180w
-
Input Voltage:
-
AC100-240V
-
Output Voltage:
-
24V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
yalight
-
Model Number:
-
YLRS-180
-
Output Frequency:
-
47-63Hz
-
Output Current:
-
7.5A
-
Working temperature:
-
- 10 ~ + 40 ℃
-
Storage temperature:
-
- 20 ~ + 60 ℃
-
Holding time:
-
10 ms (typical)
-
Boot time:
-
2 s or less (typical)
-
Safety standards:
-
GS
-
The cooling way:
-
Self-Cooling
Specification

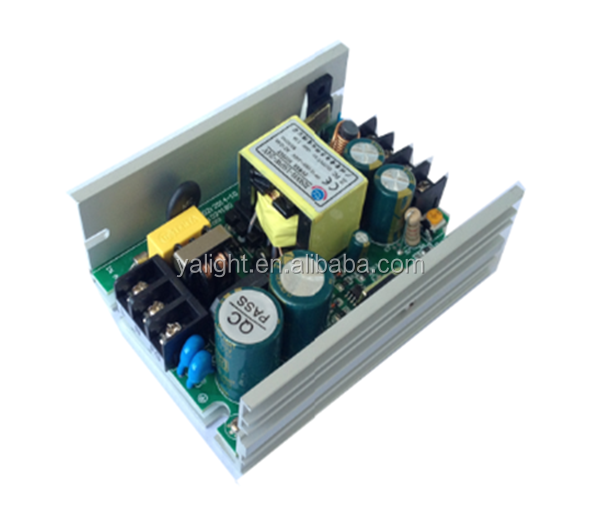

LED Switching Power Supply 180w power switch
| Built-in EMI filter | |
| 100% load aging | |
| With over voltage, | |
| over current and short circuit protection | |
| - 100-240 - v AC input voltage | |
| Input frequency - 47-63 hz | |
| Output voltage adjustment range - | |
| plus or minus 5% to plus or minus 10% | |
| Output overload protection - | |
| 105% - 150% of the rated power output, | |
| automatic recovery | |
| Withstand voltage test -- | |
| Input to output: 3.0 KV AC / 1 min | |
| Input to ground: 1.5 KV AC / 1 min | |
| The output of: 0.5 KV AC / 1 min | |
| Boot time: 2 s or less (typical) | |
| Holding time: 10 ms (typical) | |
| Working temperature: - 10 ~ + 40 ℃ | |
| Storage temperature: - 20 ~ + 60 ℃ | |
| Safety standards, UL, c - UL, GS, | |
| The cooling way: Self-Cooling |

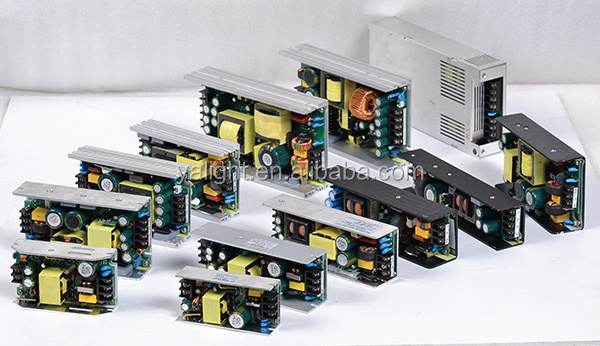

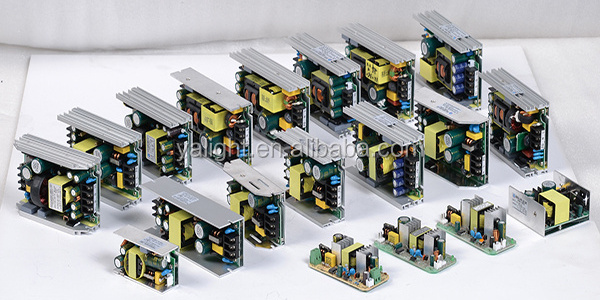

product show
| mode | output voltage/current | stability rate | power | Ripple | Efficiency | PFC |
| RS-180W-24V | 24V/7.5A | ±0.5% | 180W | ≤240mVp-p | ≥88% | none |
