Quick Details
-
Dimension(L*W*H):
-
to be specified
-
Power (kW):
-
44 kW
-
Weight (KG):
-
8000 KG
-
Name:
-
tire shredder machine rubber crusher for rubber crumb powder
-
Advantage:
-
Environmental friendly, energy saving
-
End product:
-
Rubber block, rubber crumb, rubber powder
-
Machine Type:
-
Automatic waste tire recycling production line
-
Tire procesing machines:
-
tire cutter machine, steel remove machine, rubber powder crusher
-
capacity:
-
200kg/h-3000kg/h
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Adapt tire:
-
nylon tire , steel tire , truck tire
-
Keyword:
-
tire recycling plant
-
Application:
-
tire recyling machine for rubber powder
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HVST
-
Voltage:
-
as request
-
Dimension(L*W*H):
-
to be specified
-
Power (kW):
-
44 kW
-
Weight (KG):
-
8000 KG
-
Name:
-
tire shredder machine rubber crusher for rubber crumb powder
-
Advantage:
-
Environmental friendly, energy saving
-
End product:
-
Rubber block, rubber crumb, rubber powder
-
Machine Type:
-
Automatic waste tire recycling production line
-
Tire procesing machines:
-
tire cutter machine, steel remove machine, rubber powder crusher
-
capacity:
-
200kg/h-3000kg/h
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Adapt tire:
-
nylon tire , steel tire , truck tire
-
Keyword:
-
tire recycling plant
-
Application:
-
tire recyling machine for rubber powder
product description
Product Description

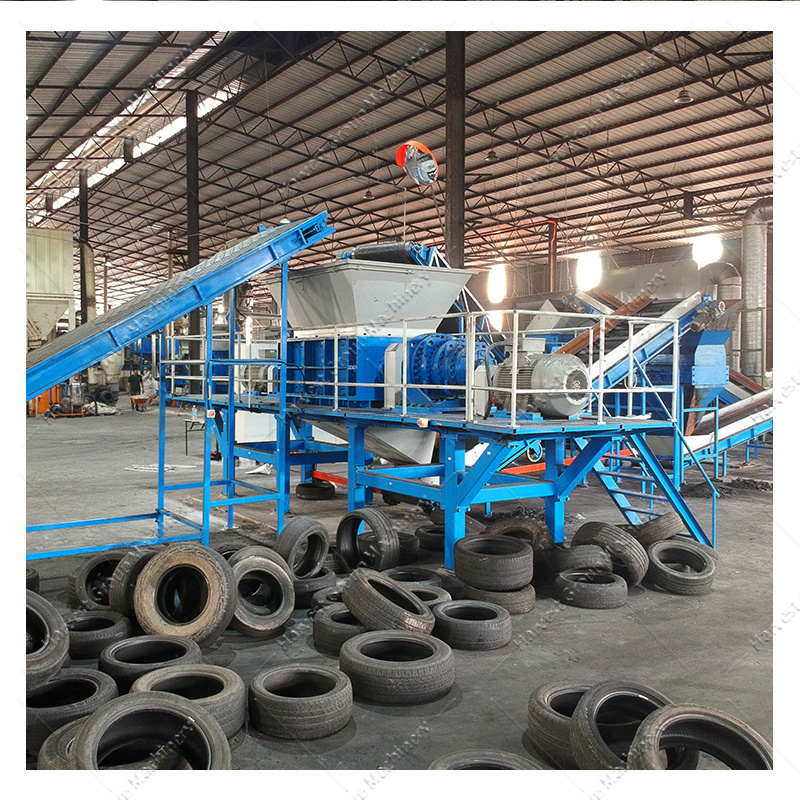

HVST double shaft shredder is specially designed for tire chips size separation. The shredded chips from prime shredder will drop on the rotary screen, and small chips will fall on the conveying belt, the big chips will be feed in the shredder for shredding and recycling again. The final chips will be around 50~60mm.
1.Provide the floor space and size required for recycling machine.
2.Provide the complete recycling line layout and its 3D drawing
3.After machine reach the customer's working site, We will assemble the main parts, then mark all the joint parts and send videos to guide the installation and training
Technical Parameter
|
Model
|
Input size
|
Output size
|
Capacity
|
Motor
|
Weight
|
|
TS-800
|
800mm
|
50*50mm
|
1-2t/h
|
2*22kw
|
8t
|
|
TS-1200
|
1200mm
|
60*60mm
|
3-5t/h
|
2*37kw
|
14t
|
|
TS-1600
|
1600mm
|
50-150mm
|
6-8t/h
|
2*45kw
|
18t
|
|
TS-1800
|
1800mm
|
50-150mm
|
7-10t/h
|
2*55kw
|
23t
|
tire shredder machine rubber crusher for rubber crumb powder
Flow chart of fully-automatic tire recycling line
(Fully-automatic Production Line):
Waste tire - Tire de beader- whole tire cutting - tire shredder - Rubber crushing - magnetic separator - fiber separator - Rubber powder
Flow chart of semi automatic tire recycling line
Product Paramenters
Rubber Grinder
Input materials≤50mm tire rubber blocks Finally products ≤20mm. and can remove 96% of the tire steel wire Motor: as per request Reducer: as per request
|
Rasper
|
LK-R315
|
LK-R132
|
LK-R90
|
LK-R75
|
LK-R55
|
LK-R45
|
|||||
|
Motor
|
Siemens
|
Siemens
|
Siemens
|
Siemens
|
Siemens
|
Siemens
|
|||||
|
Power
|
315kw
|
132kw
|
90kw
|
75w
|
55w
|
45kw
|
|||||
|
Voltage
|
As per request
|
As per request
|
As per request
|
As per request
|
As per request
|
As per request
|
|||||
|
Cutting chamber
|
697*1562
|
742*1200
|
550*1000
|
550*800
|
450*800
|
45-*600
|
|||||
|
Equipment dimensions mm
|
6217*2168*3561
|
2010*2562*4110
|
2095*2180*4105
|
1995*1980*4105
|
1720*1730*2316
|
1400*1200*2260
|
|||||
|
Hopper opening
|
1726*877*906
|
1412*902*1410
|
1182*700*1255
|
982*700*1255
|
922*580*916
|
722*580*916
|
|||||
|
Equipment weight
|
24000kg
|
6100kg
|
4200kg
|
3500kg
|
1850kg
|
1700kg
|
|||||
|
Capacity
|
3-6T/H
|
1.5-3T/H
|
1-1.5T/H
|
700KG-1T/H
|
500-700KG/H
|
300-500KG/H
|
|||||
|
Final product
|
10-30mm
|
10-30mm
|
10-30mm
|
10-30mm
|
10-30mm
|
10-30mm
|
|||||
Steel Wire Separator
The rubber grinder is a device that pulverizes 2-6mm pure rubber granules into a fine powder of10-140 mesh at room temperature. Motor: as per request
Product size: one or more sizes are discharged at the same time
|
Granulator
|
LK-G90
|
LK-G45
|
LK-G37
|
LK-R75
|
LK-R55
|
LK-R45
|
|||||
|
Motor specifications
|
Electric-Siemens
|
Electric-Siemens
|
Electric-Siemens
|
Siemens
|
Siemens
|
Siemens
|
|||||
|
Power
|
90kw
|
45kw
|
37kw
|
75w
|
55w
|
45kw
|
|||||
|
Voltage
|
As per request
|
As per request
|
As per request
|
As per request
|
As per request
|
As per request
|
|||||
|
Cutting chamber L*W
|
742*1200
|
580*1000
|
580*800
|
550*800
|
450*800
|
45-*600
|
|||||
|
Equipment Dimensions
|
2150*2250*2950
|
1765*1900*2435
|
1765*1660*2435
|
1995*1980*4105
|
1720*1730*2316
|
1400*1200*2260
|
|||||
|
Equipment weight
|
5600kg
|
3300kg
|
2950kg
|
982*700*1255
|
922*580*916
|
722*580*916
|
|||||
|
Hopper opening L*W*H
|
895*1434*1160
|
602*994*916
|
602*794*916
|
3500kg
|
1850kg
|
1700kg
|
|||||
|
Capacity
|
800-1500kg/h
|
500-800kg/h
|
300-500kg/h
|
700KG-1T/H
|
500-700KG/H
|
300-500KG/H
|
|||||
|
Final product
|
1-6mm
|
1-6mm
|
1-6mm
|
10-30mm
|
10-30mm
|
10-30mm
|
|||||
|
Miller
|
LK-M280
|
|
Motor Specifications
|
Electric-Siemens
|
|
Power
|
30Kw*4
|
|
Voltage
|
as per request
|
|
Equipment Dimensions L*W*H
|
2404*1100*1093
|
|
Equipment Weight
|
5000Kg
|
|
Capacity
|
400-600kg/hr
|
|
Final Product
|
30-120 mesh
|
Application of rubber particles and rubber powder
Customer feedback
Why Choose Us
Zhengzhou Harvest Machinery Co., Ltd
HVET's main focus is to provide our customer cost-effective waste recycling system applied in all kinds of waste recycling like tire/plastic/wood/metal/car/pcb board recycling and could provide output products like chips(50-150mm), mulches( 10-30mm), granules (1-6mm), powder (30-120 mesh) and other size as customer required. HVET also offers machines for specialized markets. The most important to theHVET family of products is the Tire Shredding System. These machines are designed to process used car and truck tires. We offer complete systems to produce separated crumb or powder.
