Quick Details
-
Working area:
-
1300x2500*200mm, 4*8 feet
-
Control system:
-
Wehong 95A-3L
-
Spindle:
-
3.5/4.5kw HQD/HSD air cooled spindle
-
Transmission:
-
Taiwan HIWIN 20mm 25mm guide rails, Taiwan TBI Ball Screw
-
Drive motor:
-
Leadshine 750w servo motor driver
-
Inverter:
-
Fuling Inverter
-
Table:
-
Aluminum table
-
Dust collection:
-
double bag dust collection
-
After-sales Service Provided:
-
Field maintenance and repair service
-
Certification:
-
CE ISO
Quick Details
-
Place of Origin:
-
China
-
Product name:
-

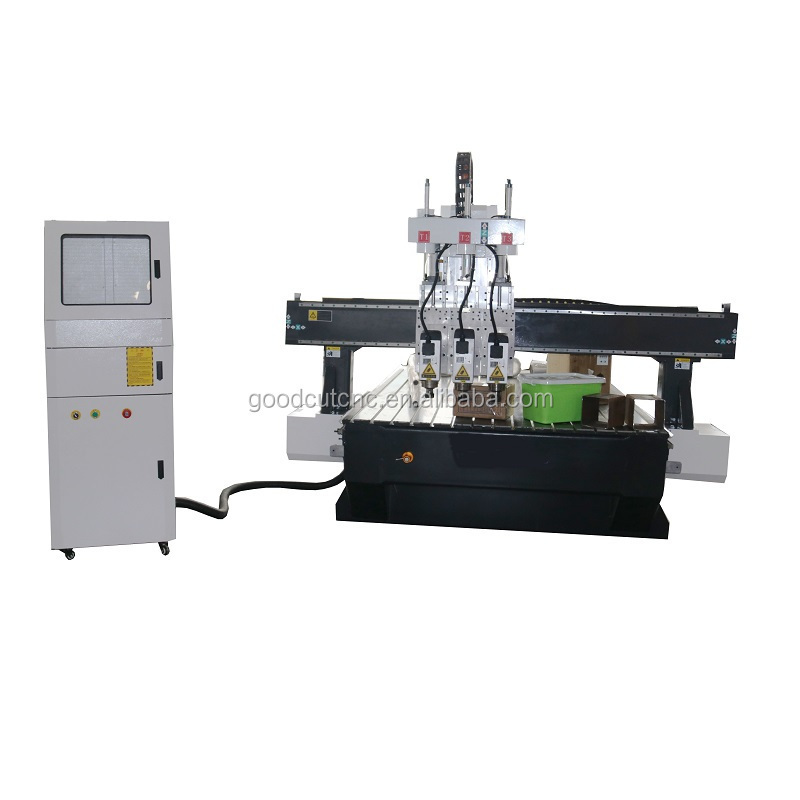

Multi head drilling cnc wood carving machine router with good price
-
Feature:
-
3/4process spindle,3/4 different change tool
-
Working area:
-
1300x2500*200mm, 4*8 feet
-
Control system:
-
Wehong 95A-3L
-
Spindle:
-
3.5/4.5kw HQD/HSD air cooled spindle
-
Transmission:
-
Taiwan HIWIN 20mm 25mm guide rails, Taiwan TBI Ball Screw
-
Drive motor:
-
Leadshine 750w servo motor driver
-
Inverter:
-
Fuling Inverter
-
Table:
-
Aluminum table
-
Dust collection:
-
double bag dust collection
-
After-sales Service Provided:
-
Field maintenance and repair service
-
Certification:
-
CE ISO
|
Working Area
|
1300*2500mm ( can be customized)
|
|
Z axis Feeding Height
|
180mm( can be customized )
|
|
Spindle Model
|
3 x 3.5/4.58kw water cooling spindle (Air cooling optional)
|
|
Moving System
|
Leadshine Servo motors and drivers
|
|
Control System
|
Wehong 95A-3L |
|
X Y axis transmission
|
Gear and Rank
|
|
Z axis transmission
|
Ball screw
|
|
Rails
|
X Y Z axis Hiwin Linear Square Rails
|
|
Table
|
Aluminum table
|
|
Motion Positioning Accuracy
|
± 0.03mm
|
|
Repositioning Accuracy
|
± 0.05mm
|
|
Z-axis setting
|
Auto Z origin tool high sensor
|
|
Voltage
|
220V/380V
|
|
Software
|
ArtCAM software
|
|
Optional Parts
|
Dust Collect
Stainless Water tank and Water pump
Rotary for cylinder materials
|
