Quick Details
-
Color:
-
Black /Silver Grey
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
NMPC
-

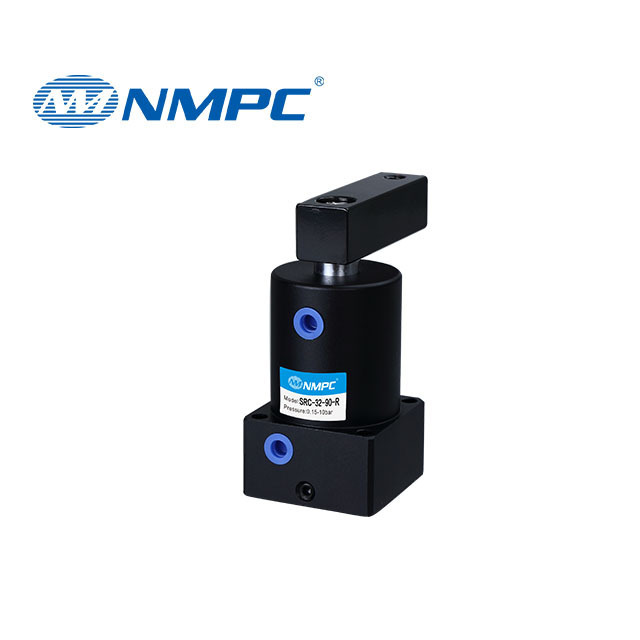

Product name:
-
SRC32X90-R
-
Color:
-
Black /Silver Grey
Product Description
| Item ⁄ Bore size(mm) | ∅25 | ∅32 | ∅40 | ∅50 | ∅63 |
| Action Forms | Double acting type | ||||
| The use of fluid | Air(filtered through 40µ filter element) | ||||
| Operating pressure range Kgf/cm²(Kpa) | 1.5~9.5(150~950) | ||||
| Temperature °C | 0~60 | ||||
| The use of speed mm/sec | 30~500 | ||||
| Rotary Stroke mm | 11 | 13 | 15 | ||
| Under the pressure stroke mm | 11 | 13 | 15 | ||
| Rotation Angle | 90° Customizable(0 °,45°,60°) | ||||
| Rotation Direction | Turn left(from right to left)-L;turn right (from left to right)-R | ||||
| Buffer Direction | Rubber gasket buffer | ||||
| Lubrication | Free supply mode | ||||
| Caliber | M5x0.8 | PT1/8 | |||
