Quick Details
-
Brand Name:
-
DTEC
-
Model Number:
-
HBW
-
Indenter type:
-
HBW Brinell ball indenter
-
Suitable hardness tester:
-
all brand
-
Model:
-
HBW
-
ball diameter:
-
1mm,2.5mm,5mm,10mm
-
Resolution(R):
-
0.2mm
-
Indicating Value(HRC):
-
high:+0.1 medium:+0.3 low:0
-
diameter of cone:
-
10mm
-
lengh:
-
27mm
-
ball material:
-
carbon steel
Quick Details
-
Warranty:
-
1 year
-
Type:
-
ball indenter
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
DTEC
-
Model Number:
-
HBW
-
Indenter type:
-
HBW Brinell ball indenter
-
Suitable hardness tester:
-
all brand
-
Model:
-
HBW
-
ball diameter:
-
1mm,2.5mm,5mm,10mm
-
Resolution(R):
-
0.2mm
-
Indicating Value(HRC):
-
high:+0.1 medium:+0.3 low:0
-
diameter of cone:
-
10mm
-
lengh:
-
27mm
-
ball material:
-
carbon steel
Product Description

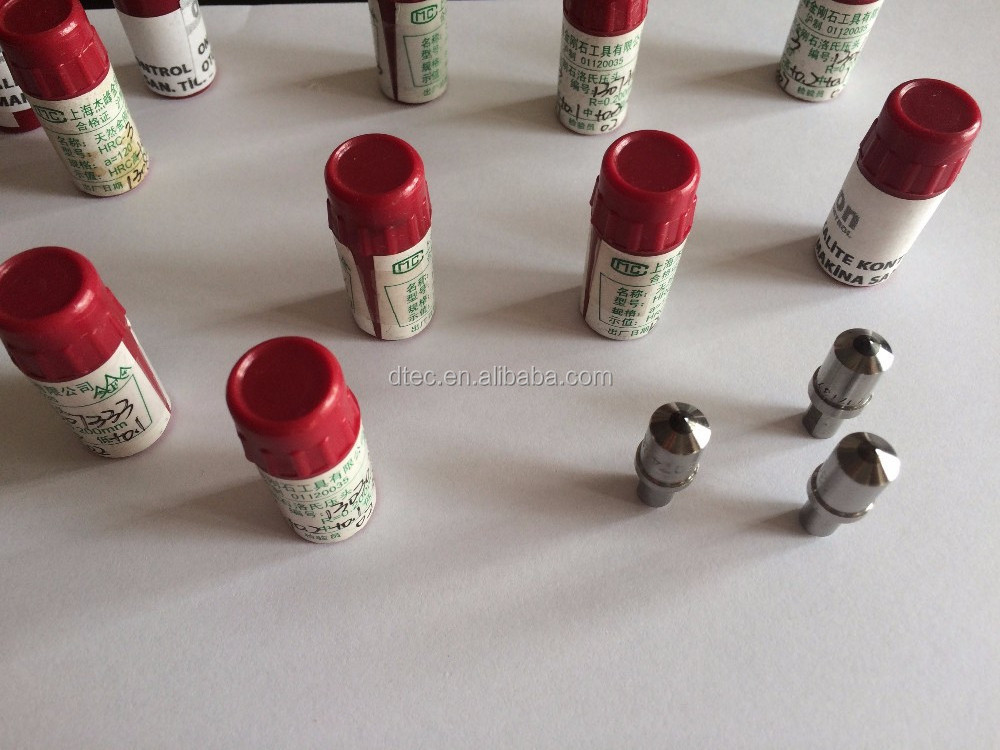

- Rockwell Diamond Cone Indenter: with a cone angle of 120 degrees and a top spherical radius of 0.2 mm. (applicable to HRA, HRC, HRD, and HRN scales);
- Rockwell WC Ball Indenter :with a ball diameter of 1.588mm(1/16'),applicable to HRB,HRF,HRG and HRJ scales;
- Plastic Rockwell WC Ball Indenter: with ball indenter diameter of 3.175mm(1/8')for HRE, HRH, and HRK scales;diameter of 6.35mm (1/4')for HRL and HRM scales,;diameter of 12.7mm (1/2')for HRR scales;
- Brinell WC Ball Indenter: with ball diameter of 10mm,5mm,2.5mm,1mm;
- Vickers Diamond Square Pyramid Indenter: with an opposite angle of 136 degree;
- Knoop Diamond Square Pyramid Indenter: with an opposite angle of 130 and 172.30 degree;
- Shore hardness Diamond indenter(Symmetrical Punch): with a spherical radius of 1.0 mm at the top;
- Leeb hardness impact body: made of tungsten carbide and diamond,wxcept E-type impact body made of diamond, other types are made of tungsten carbide. There are six types: D, DC, D+15, G, E, and C. While the G-ball is set to 5mm, other balls are 3mm.
| Indenter Ball or Diamond | Diameter |
| Steel Ball/Tungsten Carbide(WC) | Φ1.5875 |
| Diamond Square Pyramid Indenter | opposite angle 136° |
| Steel Ball/Tungsten Carbide(WC) | Φ1.5875 |
| Knoop Indenter | Diamond |
| Steel Ball/Tungsten Carbide(WC) | Φ1.5875 |
| Steel Ball/Tungsten Carbide(WC) | Φ3.175 |
| Steel Ball/Tungsten Carbide(WC) | Φ6.35 |
| Steel Ball/Tungsten Carbide(WC) | Φ12.7 |
| Steel Ball/Tungsten Carbide(WC) | Φ10 |
| Diamond Cone Indenter |
Angle120°
R0.2 mm |
| Steel Ball/Tungsten Carbide(WC) | Φ10,Φ12.7,Φ6.35,Φ3.175,Φ1.5875 | |
| Tungsten Carbide(WC) | Φ10,Φ5,Φ2.5,Φ2,Φ1 | |
| Leeb Impact Body | Φ3 | D,DC,D+15 Tye Impact Device |
| Φ5 | G Type |
- Rockwell Hardness Tester(rockwell diamond indenter in HRC,HRA scales).
- Vickers Hardness Tester(vickers indenter HV2,HV6).
- Micro Vickers Hardness Tester(knoop intender).
Specification

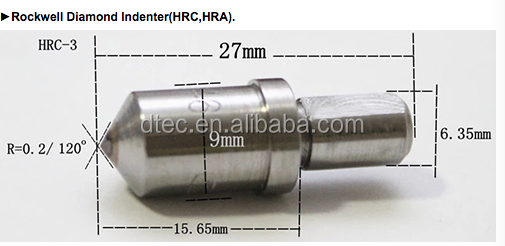

- Rockwell Diamond Indenter(HRC,HRA).
- Vickers Indenter and Knoop Intender for Micro Vickers Hardness Tester.
