Quick Details
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Dongfeng
-
Rated Power:
-
85 kw
-
Extension mileage:
-
260km
-
Motor Type:
-
TZ365XSB01
-
Max torque:
-
600N.m
-
Controller:
-
21EV06-08030-A
-
Total voltage:
-
386.4
-
Battery capacity:
-
5255kwh
-
Front Axle:
-
2.3T
-
Rear Axle:
-
4.2T, Speed Ratio 6.14
Quick Details
-
Seats:
-
11 - 20
-
Emission Standard:
-
electric
-
Dimensions (L x W x H) (mm):
-
6200*2000*2890mm
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Dongfeng
-
Rated Power:
-
85 kw
-
Extension mileage:
-
260km
-
Motor Type:
-
TZ365XSB01
-
Max torque:
-
600N.m
-
Controller:
-
21EV06-08030-A
-
Total voltage:
-
386.4
-
Battery capacity:
-
5255kwh
-
Front Axle:
-
2.3T
-
Rear Axle:
-
4.2T, Speed Ratio 6.14

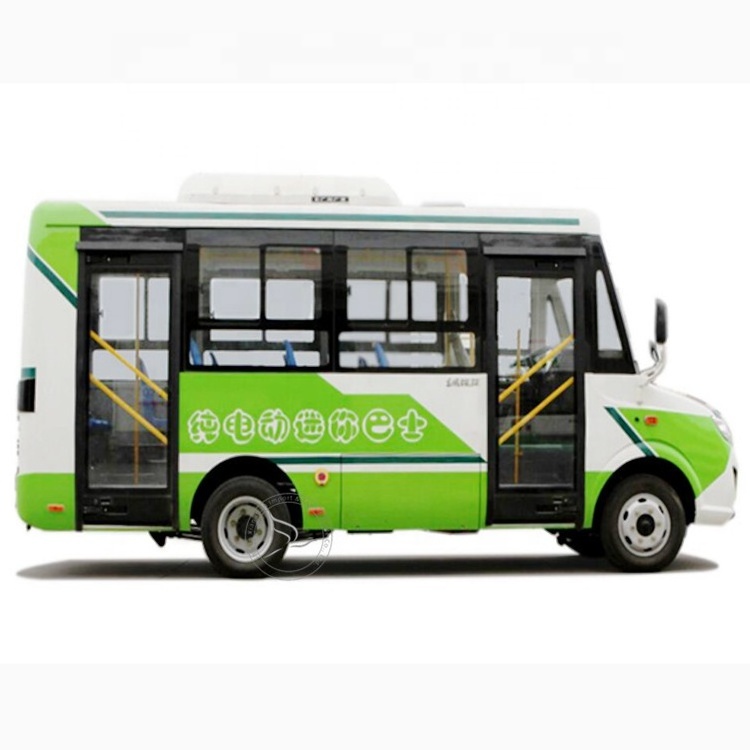

Dongfeng 12 seats mini electric bus
Product Description
| Model: EQ6620CLBEV6 | |
| Length/Width/Height (mm) | 6200*2000*2890(With A/C system) |
| Wheelbase | 3300mm |
| Rated Passenger Capacity | 30/10--17 |
| Front/Rear Overhang | 1000/1900 |
| Max Speed | 69 Km/H |
| G.V.W | 6500 KG |
| Extension mileage | 260( constant speed) |
| Performance | |
| Chassis model | EQ6560KRLEV |
| Motor type | TZ365XSB01 |
| Rated power(kw) | 85 |
| Max. power(kw) | 135 |
| Rated torque(Nm) | 325 |
| Max. torque(Nm) | 600 |
| Rated speed(r/min) | 2500 |
| Body Specification | |
| Door and door pump | Front and rear open pneumatic swing door; |
| Window | aluminum alloy push up and pull down side window |
| A/C system | Air condition interior |
| Video and Audio | MP3 and Monitoring system |
| Lamp | Combination headlight, front top display high lights, body side sign lights. |
| Others | |
| Chassis Specification | |
| Controller | 21EV06-08030-A |
| Battery type | Lithium iron phosphate battery |
| Total voltage of battery kit system | 386.4 |
| Battery capacity | 136 Ah |
| Total quantity of electricity | 52.55kwh |
| Battery maker system manufacturer | Beijing |
| Front axle | |
| Rear Axle | |
| Service brake | braking system, steel pipe line, dryer, ABS |
| Parking brake | Air braking |
| Suspension type | Spring Leaf |
| Leaf spring | Front 3/ Rear 4 |
| Steering system | Power steering |
| Tyre type | 215/75R16LT |
| Tyre number | 2/4(6+1) with one spare tire. |
