Quick Details
-
Diameter:
-
275/220mm
-
raised height:
-
600-800mm(optional)
-
Material:
-
304 stainless steel
-
Control mode:
-
remote control
-
system control:
-
hydraulic and electric control
-
Working temperature:
-
-30℃~+75℃
-
Embedded cylinder depth:
-
1100mm
-
Lamp belt:
-
LED lamp(Acrylic light circle)
-
weight:
-
100-155kg
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZENTO
-
Raising/lowering speed:
-
3-6s(adjustable)
-
Diameter:
-
275/220mm
-
raised height:
-
600-800mm(optional)
-
Material:
-
304 stainless steel
-
Control mode:
-
remote control
-
system control:
-
hydraulic and electric control
-
Working temperature:
-
-30℃~+75℃
-
Embedded cylinder depth:
-
1100mm
-
Lamp belt:
-
LED lamp(Acrylic light circle)
-
weight:
-
100-155kg

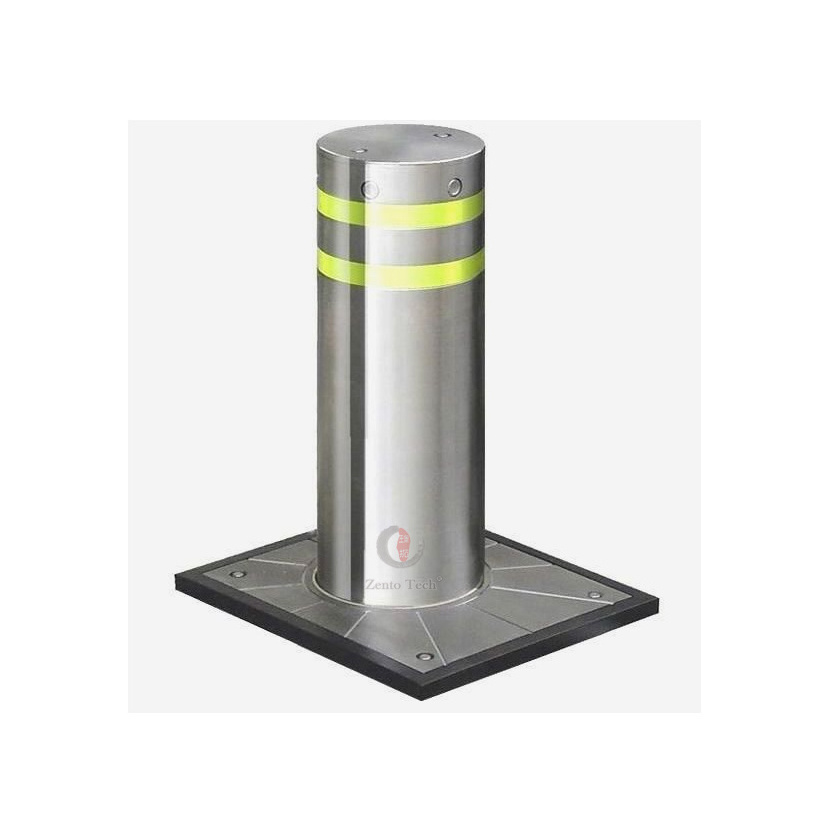

Product Description
Information
| Body cylinder Material | 304 stainless stee l |
| Outer cylinder diameter | 325mm |
| Body Thickness | 6mm |
| Body Diameter | 219mm( + 1) |
| Surface finis | Drawing / polishing / painting |
| Body height | 600mm |
| Embedded cylinder depth | 1100mm |
| Weight | 50kg |
| Embedded cylinder material | 5mm thickness carbon steel with powder coating or zinc coating surface finish |
| Reflective Strip | Available |
| Flashing light | Customized |
| Work frequency | 1500 cycles /day |
| Service life | 10-15years |
| Impact Resistance | More than 60,000 joules |
| Bearing Capacity | More than 40 ton |
| Level of noise | Less than 60 decibel |
| Control method | Cable button or wireless remote |
| Rising/lowering speed | 3s-6s(adjustable) |
| Movement | electric hydraulic |
| Installation | Cemented into the ground |
| Power Supply | 380V(control voltage 24V) |
| System Dynamic Power | 3.7Kw |
| Protection standard | IP67 anti-water, anti-shock, anti-dust,antiimpact |
