Quick Details
-
Application:
-
high temperature muffle Lab Furnace
-
Color:
-
Blue
-
Max temp:
-
1700C
-
Work temp:
-
1600C
-
Heating rate:
-
40C/min
-
Usage:
-
High temperature Heating treatment
-
work chamber Size:
-
support customized
-
Temperature Accuracy:
-
+/- 1.C
-
heating elements:
-
mosi2 heater
-
packing:
-
export wood double packing
Quick Details
-
Brand Name:
-
Yifan
-
Model Number:
-
YF1700
-
Place of Origin:
-
Henan, China
-
Application:
-
high temperature muffle Lab Furnace
-
Color:
-
Blue
-
Max temp:
-
1700C
-
Work temp:
-
1600C
-
Heating rate:
-
40C/min
-
Usage:
-
High temperature Heating treatment
-
work chamber Size:
-
support customized
-
Temperature Accuracy:
-
+/- 1.C
-
heating elements:
-
mosi2 heater
-
packing:
-
export wood double packing
Product Description

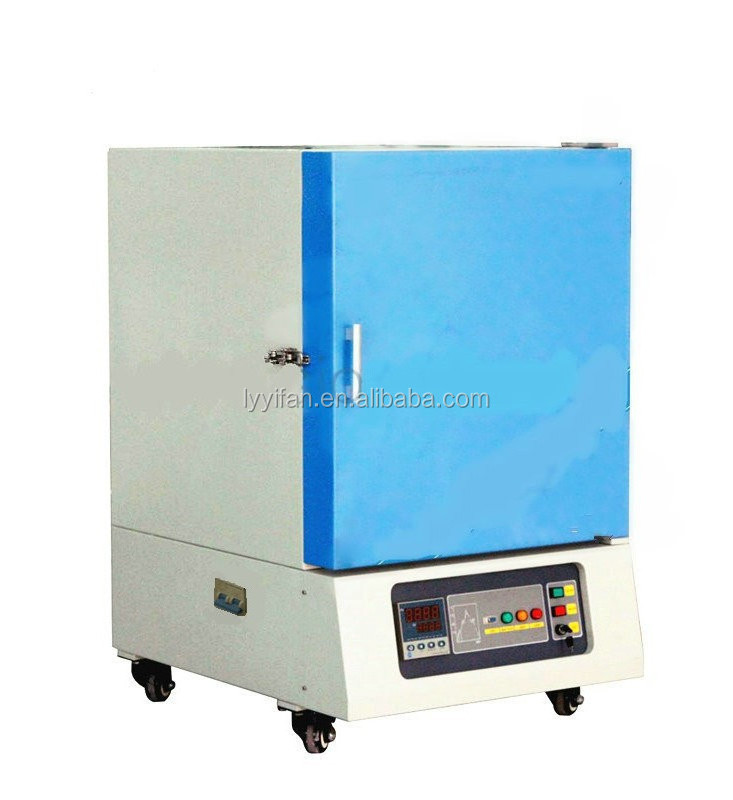

| YF1700 muffle furnace CE certified compact high temperature muffle furnace up to 1700°C with for max energy saving. It is an ideal tool for preparing new generation material in research laboratories | |
| The furnace consists of high quality alumina fiber brick and Kathnal Super-1800 MoSi2 heating elements with double layer case. | |
| Gas inlet and venting port are installed for using at oxygen or inert gas rich atmospheres. | |
| Design of sliding down /Side open/lift up door is for loading sample at easy. | |
| Specifications: | |
| Inside Chamber Size | 150 x 150 x 150mm (6" x 6" x 6 "), 3.4 L Customized size is available upon request |
| Furnace Structure | Double layer steel structure with air cooling fan to keep case temperature below 55°C |
| Standard Working Temperature | 1600°C (continuous) |
| Maximum Working Temperature | 1700°C (< 3 hours) |
| Temperature Control | PID automatic control via SCR (Silicon Controlled Rectifier) power controlwith 50 steps programmable |
| Heating Rate | 0 ~40°C / min (suggestion =< 20°C) |
| Temperature Accuracy & stability | +/- 1 o C |
| Heating Element | Super 1800C grade Made in Sweden |
| Thermo Couple | B Type (Pt-Rh to Pt-Rh)with Alumina tube |
| Working Voltage | AC 208V-240V single phase, 50/60 Hz (30A air breaker required) |
| Max. Power | 2.5 KW (30A breaker required) |
| Power cable & plug | 10 feet lengthheavy duty power cable is included,Plug is not included.) |
| Outside Size | 380 x 410 x 620 mm (15" x 16" x 24.5") |
| Warranty | One year limited warranty with life time support. (Consumable parts such as sample plates and heating elements are not covered by the warranty) |
| Certificate | CE Certified |
| Application Notes |
For preserving the longevity of the furnace components, we recommend the heating rate not to exceed 20 °C /min.
Cooling rate shall also not exceed 10 °C /min. This furnace lacks vacuum sealing, toxic or explosive gases are not recommended for use with this furnace without necessary safety controls and supervision. Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating. |
| Package Dimension after crating | 650x720x920mm |
| Shipping Weight | 100kgs |
| Standard parts include in the Package | |
| Description | Quantity |
| High Temperature Muffle Furnace | 1 set |
| Super-1800 grade Kathnal MoSi2 Heating Element | 4 pcs |
| B-Type Pt-Rh to Pt-Rh Thermocouples with Alumina Protection Tube | 1 set |
| Al2O3 Sample Plate | 1 pcs |
| Al2O3 Furnace Door Block | 1 pcs |
| Crucible Clip | 1 pcs |
| Operation Manual | 1 set |
| Gloves | 1 pair |
| Model | Chamber size(WxHxDmm) |
| YF-1700 | 100x100x100mm |
| YF-1700 | 120x120x130mm |
| YF-1700 | 150x150x150mm |
| YF-1700 | 200x200x200mm |
| YF-1700 | 200x200x300mm |
| YF-1700 | 250x250x300mm |
| YF-1700 | 300x300x400mm |
| YF-1700 | 450x450x500mm |
| YF-1700 | 600x600x600mm |
