Quick Details
-
Place of Origin:
-
Shandong,China
-
Product name:
-
Pillow Bloock Bearing
-
Material:
-
Chrome Steel GCR15
-
Application:
-
Machinery
-
Feature:
-
Long Life
-
Service:
-
OEM Customized Services
-
Housing material:
-
Stainless Steel AISI304
-
Brand:
-
Follow Customer's Request
-
Package:
-
Original Package
-
Structure:
-
Housed Bearing Units
-
Cage:
-
Steel Cage
Quick Details
-
Applicable Industries:
-
Machinery Repair Shops, Food & Beverage Factory, Energy & Mining, Food & Beverage Shops, Other
-
Brand Name:
-
Neutral
-
Model Number:
-
UCPPL 204
-
Place of Origin:
-
Shandong,China
-
Product name:
-
Pillow Bloock Bearing
-
Material:
-
Chrome Steel GCR15
-
Application:
-
Machinery
-
Feature:
-
Long Life
-
Service:
-
OEM Customized Services
-
Housing material:
-
Stainless Steel AISI304
-
Brand:
-
Follow Customer's Request
-
Package:
-
Original Package
-
Structure:
-
Housed Bearing Units
-
Cage:
-
Steel Cage

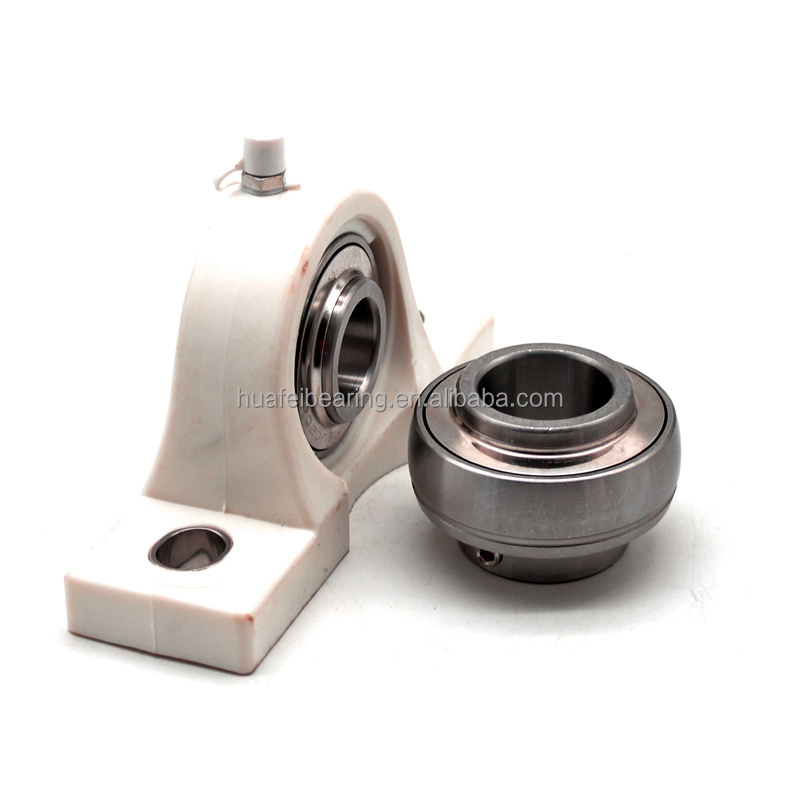

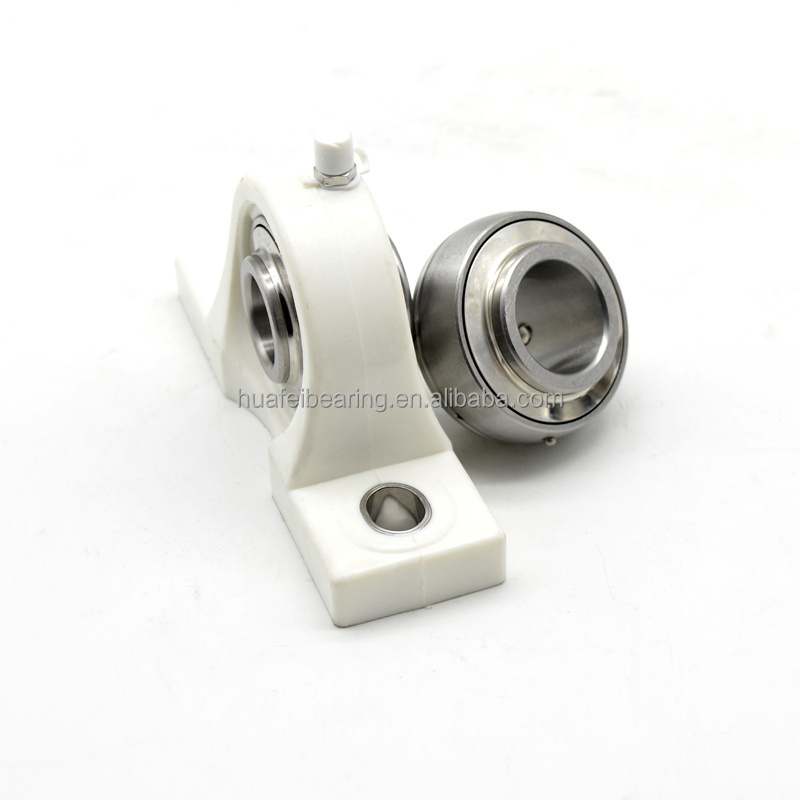

High speed UCPPL series
Plastic Plummer Block Bearing Housing Bearing
Products Description
Brief introduction:
The plastic bearing pedestal has the advantages of light weight, easy installation and free from maintenance. At the same time, the common cast iron bearing pedestal or stamping bearing pedestal does not have the performance of shock absorption and impact resistance. With the continuous development of new materials of bearing housing, it is widely used in engineering more and more. For different situations, plastic spherical bearings can be made of different materials such as POM, HDPE, PP, UPE, PTFE, and so
on. Compared with plastic spherical bearings, PBT materials are generally used.
PTFE and PVDF are the most typical varieties of fluoroplastics, PTFE and PVDF have the best corrosion resistance, PTFE is the best corrosion resistance of all known engineering plastics, can be used for all concentrated acid and alkali occasions, including HF and fuming sulfuric acid nitric acid (more than 98%), and has good high temperature performance. PTFE proves that it can be used at high temperature of 180°C, and PVDF can also be used at 150 °C. However, PTFE material has very low mechanical strength, poor dimensional stability and large temperature deformation. Compared with PVDF, PVDF has better comprehensive performance. The ball is usually glass or ceramic ball.
Features:
1. Chemical corrosion resistance is excellent, can withstand in addition to the molten alkali gold, fluorinated medium and higher than 300° C sodium hydroxide except all the strong acid (including aqua regia), as well as strong oxidant, reducing agent and various organic solvents
The plastic bearing pedestal has the advantages of light weight, easy installation and free from maintenance. At the same time, the common cast iron bearing pedestal or stamping bearing pedestal does not have the performance of shock absorption and impact resistance. With the continuous development of new materials of bearing housing, it is widely used in engineering more and more. For different situations, plastic spherical bearings can be made of different materials such as POM, HDPE, PP, UPE, PTFE, and so
on. Compared with plastic spherical bearings, PBT materials are generally used.
PTFE and PVDF are the most typical varieties of fluoroplastics, PTFE and PVDF have the best corrosion resistance, PTFE is the best corrosion resistance of all known engineering plastics, can be used for all concentrated acid and alkali occasions, including HF and fuming sulfuric acid nitric acid (more than 98%), and has good high temperature performance. PTFE proves that it can be used at high temperature of 180°C, and PVDF can also be used at 150 °C. However, PTFE material has very low mechanical strength, poor dimensional stability and large temperature deformation. Compared with PVDF, PVDF has better comprehensive performance. The ball is usually glass or ceramic ball.
Features:
1. Chemical corrosion resistance is excellent, can withstand in addition to the molten alkali gold, fluorinated medium and higher than 300° C sodium hydroxide except all the strong acid (including aqua regia), as well as strong oxidant, reducing agent and various organic solvents
2.The heat resistance is very good, the melting temperature of 324℃, decomposition temperature of 415℃, the highest service
temperature of 250℃C, embrittlement temperature of -190° C, thermal deformation temperature (under the condition of 0.46MPa) is 120° C.
3. It has the smallest surface tension in solid materials and does not adhere to any material
4. Low friction performance, friction coefficient is known to be the lowest of solid materials
5. Ageing resistance
6. Good elasticity
temperature of 250℃C, embrittlement temperature of -190° C, thermal deformation temperature (under the condition of 0.46MPa) is 120° C.
3. It has the smallest surface tension in solid materials and does not adhere to any material
4. Low friction performance, friction coefficient is known to be the lowest of solid materials
5. Ageing resistance
6. Good elasticity

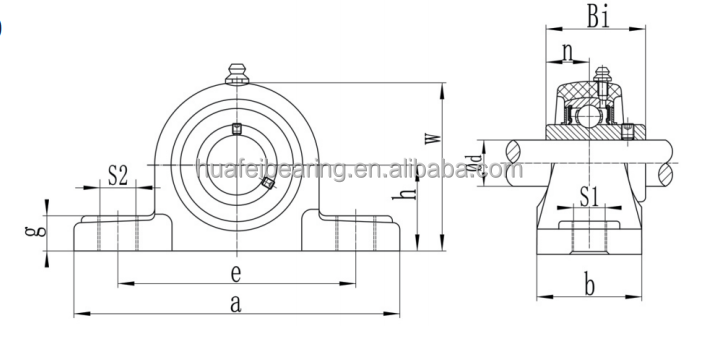

Engineering plastic pillow block bearing
|
带座轴承型号 Bearing Unit No
|
|
轴径 Bore Dia
|
外形尺寸（毫米） Dimensions（mm）
|
|
|
|
|
|
|
|
d
|
h
|
a
|
e
|
b
|
|
|
|
|
mm
|
|
|
|
|
|
|
UCPPL 201
|
|
12
|
33.3
|
127
|
95
|
38
|
|
|
UCPPL 202
|
|
15
|
33.3
|
127
|
95
|
38
|
|
|
UCPPL 203
|
|
17
|
33.3
|
127
|
95
|
38
|
|
|
UCPPL 204
|
|
20
|
33.3
|
127
|
95
|
38
|
|
|
UCPPL 205
|
|
25
|
36.5
|
140.5
|
105
|
38
|
|
|
UCPPL 206
|
|
30
|
42.9
|
163.5
|
119
|
46
|
|
|
UCPPL 207
|
|
35
|
47.6
|
168
|
127
|
48
|
|
|
UCPPL 208
|
|
40
|
49.2
|
184
|
137
|
54
|
|
|
UCPPL 209
|
|
45
|
54
|
192
|
146
|
54
|
|
|
UCPPL 2010
|
|
50
|
57.2
|
206
|
159
|
60
|
|
|
UCPPL 2011
|
|
55
|
63.5
|
220
|
171
|
60
|
|
|
UCPPL 212
|
|
60
|
69.8
|
241
|
184
|
70
|
|
Ps: This is part model number of
Engineering plastic pillow block bearing
we have, if you are fail to find the one you need, please contact us directly
Product Details
Product Parameter
|
Product name
|
High speed UCPPL series Plastic Plummer Block Bearing Housing Bearing
|
|
Place of origin
|
Shandong,China
|
|
Product Brand
|
SHJZ
|
|
Technics
|
automation
|
|
delivery date
|
3-10 days in stock if oem,it needs ti be negotiated
|
|
warranty
|
1 Year
|
