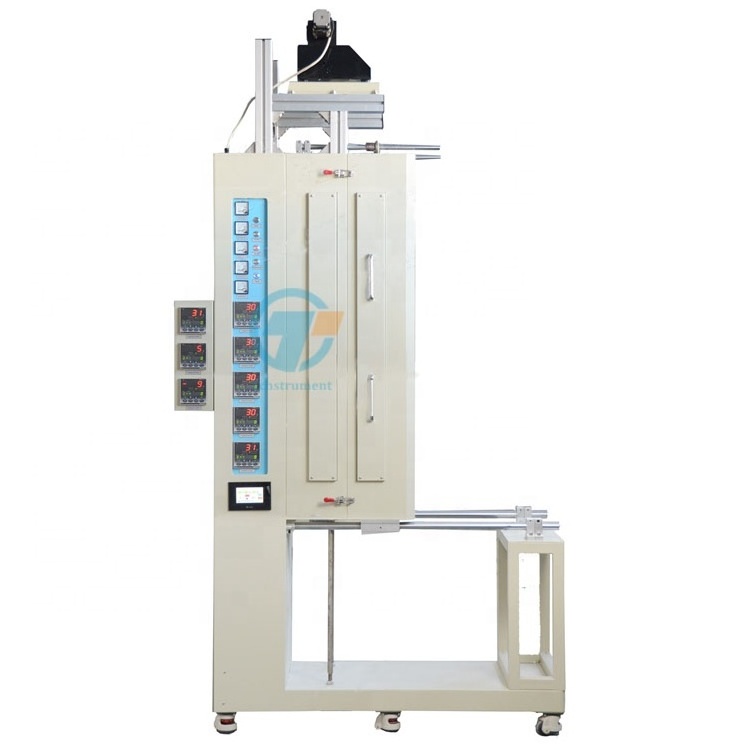

Laboratory Five heating zones Bridgman Crystal Growth Tube Furnace with Hanging Wire Mechanism Up to 1500C
Laboratory Five heating zones Bridgman Crystal Growth Tube Furnace with Hanging Wire Mechanism Up to 1500C

Laboratory Five heating zones Bridgman Crystal Growth Tube Furnace with Hanging Wire Mechanism Up to 1500C

FOB Reference Price: Get Latest Price
≥1 Sets
US $1000
Free Inquiry
Customized Request
Contact us For product pricing, customization, or other inquiries:
Contact Us
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
China
Product name:
Bridgman Crystal Growth Tube Furnace
Certification:
CE

Quick Details

Warranty:
1 year
Brand Name:
TCH
Model Number:
TCH-VTL1500-1500-1500-1500-1500
Place of Origin:
China
Product name:
Bridgman Crystal Growth Tube Furnace
Certification:
CE
Product Description
Vertical Two Zone Tube Furnace


  • Compact five zones split vertical tube furnace
  • Working Voltage: 380V,50/60HZ selectable
  • Max. Power Consumption: 15 KW
  • Five Heating Zone: 200 mm L for each Zone, 1000 mm L in total
  • Max. heating temperature: 1500°C
  • Continuous working temperature: 1400°C
  • five programmable digital temperature controllers which control five heating zone independently
  • Max. Temperature gradient: 1ºC/Cm
    • Finding a suitable thermal gradient is user responsibility
    • Adjusting the heating zone's temperature can create different thermal gradient profile
    • Adjusting furnace opening diameter also can change the thermal gradient
  • Quartz tube is included with sealed flange )
heating elements SiC rods

Hanging wire

  • One set of Ni-SS hanging wire is included . Max. working temperature is 800C.
  • Optional hanging wire for higher working temperature is available upon request:
    • Ni-Cr-Al wire (not included) Max. working temperature < 1100°C
    • Platinium wire (not included) Max.working temperature > 1200°C and < 1600°C
  • A thin hanging wire goes through the top flange. A positive inert gas can keep processing tube under controlled atmosphere
  • For air-sensitive material, the sample shall be sealed in a small quartz tube with pre-vacuumed.
  • 800C pulling wire (Ni-SS) sealed quartz tube as the crucible
Motor and Controller


  • 6"L x 4"W Touch Screen
  • Wire descending speed is programmable within 3 segments.
  • Precise DC stepper motor controls traveling speed.
  • Pulling  speed range: 1-500 um/sec adjustable with the accuracy of +/- 0.05%
  • Total stoke length controlled by touch screen: 350mm
  • Power: 50W, 110V - 240V C
  • Optional:   Lower speed range is available upon request at extra cost.
Product Dimensions 1300X550X2600mm
Compliance
  • CE Certified
  • NRTL certification is available upon request at an extra cost
Warranty
  • One Year limited warranty with lifetime support
  • Consumable parts such as processing tubes, O-rings, and heating elements are not covered by the warranty
Application Notes
  • In order to get better film coating, the substrate shall be treated by plasma cleaner (Please click on the first picture
