Contact us For product pricing, customization, or other inquiries:
Contact Us
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
500
-
Voltage:
-
110V/220V/380V/415V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Autompack
-
Dimension(L*W*H):
-
1315*1023*1343mm
-
Packing Film Material:
-
OPP/PE,PVC/OPP,CPP/PT,PE,KOP,Aluminum Film,VMCPP,VMPET
-
Bag length:
-
50-400mm
-
Bag width:
-
50-250mm
-
Film roll diameter:
-
400mm
-
Packing speed:
-
5-60bags/min
-
Range of measurement:
-
5g-5000ml
-
Film thickness:
-
0.04-0.12mm
-
Product name:
-
Automatic Sauce Gel Oil Honey Paste Vertical Liquid Packing Machine
-
Gas consumption:
-
0.8m3/min 0.65MPa
Quick Details
-
Function:
-
FILLING, Wrapping, Labeling, Laminating, Capping, COATING, Sealing, BOXING, Embossing, Gluing, SLITTING, counting
-
Packaging Type:
-
CANS, Bottles, Barrel, Stand-up Pouch, Bags, Film, Foil, Pouch
-
Packaging Material:
-
Plastic, Metal, Glass
-
Weight (KG):
-
500
-
Voltage:
-
110V/220V/380V/415V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Autompack
-
Dimension(L*W*H):
-
1315*1023*1343mm
-
Packing Film Material:
-
OPP/PE,PVC/OPP,CPP/PT,PE,KOP,Aluminum Film,VMCPP,VMPET
-
Bag length:
-
50-400mm
-
Bag width:
-
50-250mm
-
Film roll diameter:
-
400mm
-
Packing speed:
-
5-60bags/min
-
Range of measurement:
-
5g-5000ml
-
Film thickness:
-
0.04-0.12mm
-
Product name:
-
Automatic Sauce Gel Oil Honey Paste Vertical Liquid Packing Machine
-
Gas consumption:
-
0.8m3/min 0.65MPa

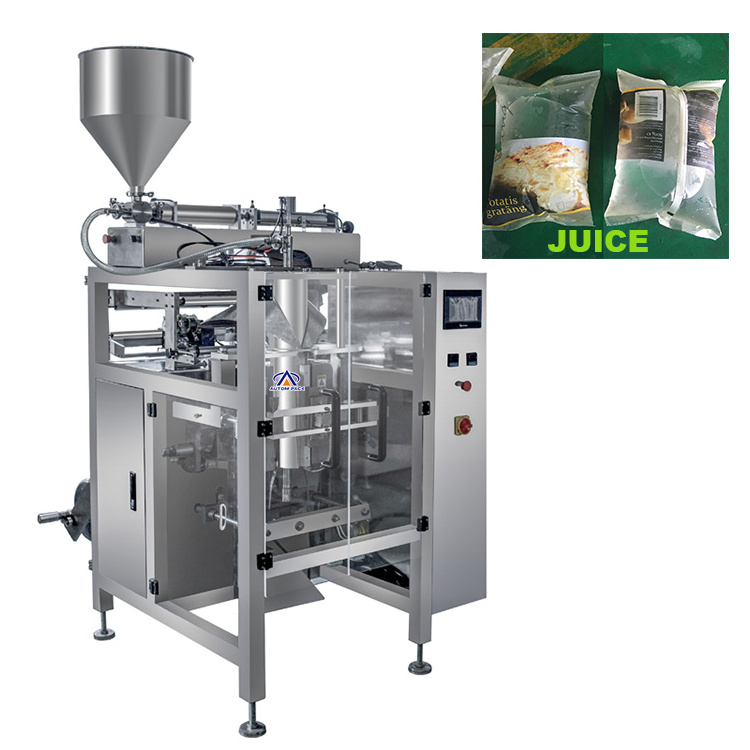

100g 1kg 2kg 5kg Automatic Vertical Film Bag Filling Sealing Sachet Liquid Salad Dressing Chili Sauce Honey Packing Machine
Product Description
Specification
| Model No. | ATM-420L | ATM-520L |
| Film width | Max. 420mm | Max. 520mm |
| Packing speed | 5-60bags/min | 5-60bags/min |
| Packing pouch size | L: 50-300mm; W: 60-200mm (Single belt pulling length) | |
| Range of measuring | 150-1000ml | 150-2000ml |
| Max. diameter of rolling film | ≤φ400mm | ≤φ400mm |
| Packing film thickness | 0.04-0.12mm | 0.04-0.12mm |
| Gas consumption | 0.8m3/min 0.65MPa | 0.8m3/min 0.65MPa |
| Total power | 3.0kw | 3.0kw |
| Working voltage | 220v 50hz | 220v 50hz |
| Packing material applications | POPP/CPP, POPP/VMCPP, BOPP/PE, PET/VMPET/PE, PET/AL/PE, NY/PE, PET/PET etc. | |
| Machine dimension(mm) | L1217×W1015×H1343mm | L1488×W1080×H1490mm |
| Gross weight(kg) | 420KG | 500KG |
OPTIONAL DEVICE FOR YOUR CHOICE:
1. Date Coder
2. Hole Punching Device(Pinhole, Round hole, the butterfly hole)
3. Linking bag control device
4. Air-filling Device
5. Air Exhaust Device
1. Date Coder
2. Hole Punching Device(Pinhole, Round hole, the butterfly hole)
3. Linking bag control device
4. Air-filling Device
5. Air Exhaust Device
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
1) Dedust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Shipping mark on the cases
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Shipping mark on the cases
Payment
1.T/T and Western Union are accepted.
2.30% deposit before production and 70% balance before shipment
3.All banking charges outside China are on buyers
Shipping
1.Upon receipt of payment , delivery date will be in 15-30 working days,
2.By Air, by Sea or by Express (DHL etc)
3.Shipment cost will depend on the destination, shipment way and the weight of the goods
1.T/T and Western Union are accepted.
2.30% deposit before production and 70% balance before shipment
3.All banking charges outside China are on buyers
Shipping
1.Upon receipt of payment , delivery date will be in 15-30 working days,
2.By Air, by Sea or by Express (DHL etc)
3.Shipment cost will depend on the destination, shipment way and the weight of the goods
