Quick Details
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Optical Valley Laser
-
Dimension(L*W*H):
-
800*500*250mm
-
Weight (KG):
-
95 KG
-
Core Components:
-
laser source
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support
-
marking machinesource:
-
IPG,Raycus
-
marking machine head:
-
Galvenometer
-
marking machine Speed:
-
7000mm/s
-
marking Depth:
-
0.01-4mm
-
marking machine Accuracy:
-
0.002mm
-
Fiber laser source lifespan:
-
100,000-200,000 hours
-
Marking Area:
-
50mm*50mm--- 300mm*300mm
-
Payment term:
-
TT, LC
Quick Details
-
Engraving Area:
-
70mm-300mm
-
Laser Type:
-
Fiber Laser
-
Engraving Speed:
-
7000mm/s
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Optical Valley Laser
-
Dimension(L*W*H):
-
800*500*250mm
-
Weight (KG):
-
95 KG
-
Core Components:
-
laser source
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support
-
marking machinesource:
-
IPG,Raycus
-
marking machine head:
-
Galvenometer
-
marking machine Speed:
-
7000mm/s
-
marking Depth:
-
0.01-4mm
-
marking machine Accuracy:
-
0.002mm
-
Fiber laser source lifespan:
-
100,000-200,000 hours
-
Marking Area:
-
50mm*50mm--- 300mm*300mm
-
Payment term:
-
TT, LC

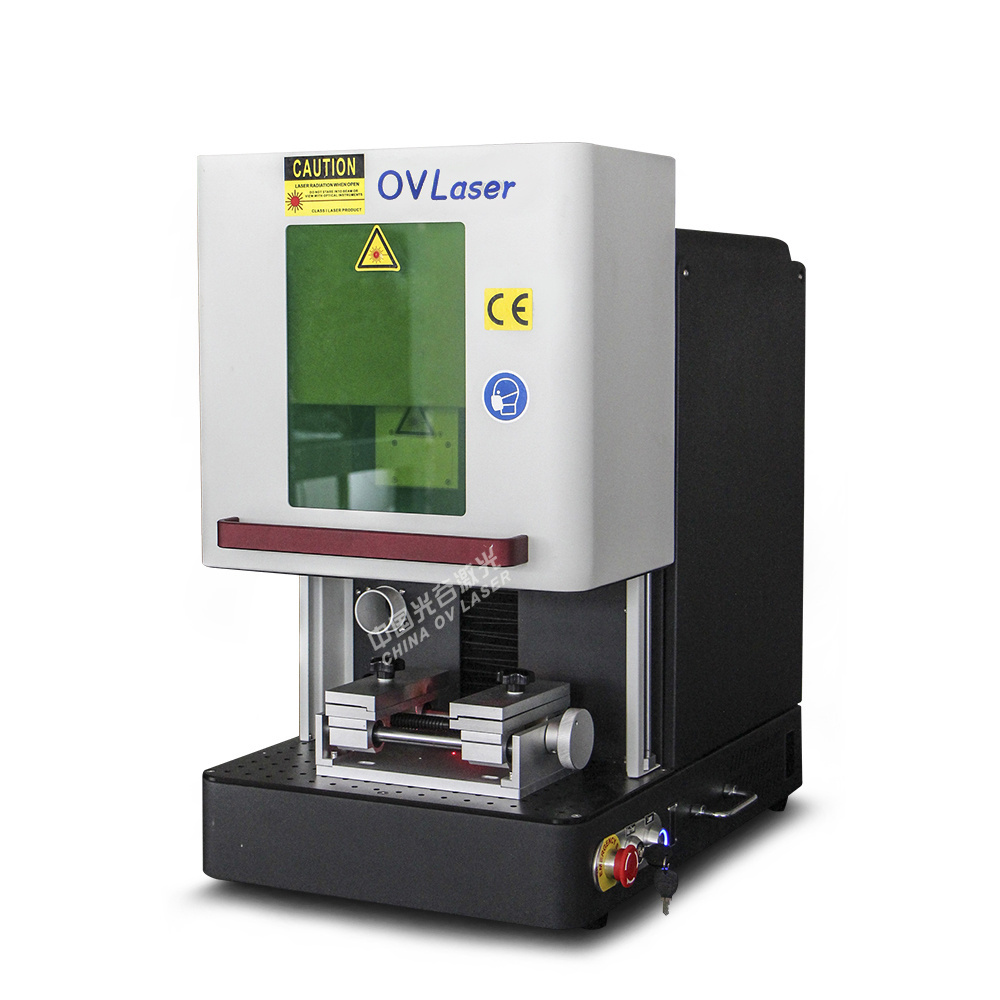

High quality Raycus enclosed 20w mini laser machine for jewelry gold tool metal 50w 60w m7 mopa color machine
The latest price and more product information please send message ,or contact :
Carrie Zhang, Tel/ Whatsapp / Wechat :
0086-13307109231
* Laser Solution Can be Customized ~ Factory Price Can be Negotiable !
Product Description
| Laser Wavelength | 1064nm |
| Optional Marking Area | 50mm*50mm / 100mm*100mm / 200mm*200mm / 300mm*300mm |
| Minimum Line Width | 0.015mm |
| Minimum Character | 0.2mm |
| Repeated Precision | ±0.003mm |
| JCZ from China | |
| Life-span of Fiber Laser Module | 100000-200000 hours |
| Beam Quality | M2 <1.6 |
| Focus Spot Diameter | <0.01mm |
| Power Stability (8h) | <±1.5%rms |
| System Operation Environment | Windows XP / Windows 7 / Windows 8 / Windows 10 |
| Cooling Mode | Air cooling--Built-in |
| Working Temperature | 0℃~40℃ |
| Voltage | 220V / 50HZ / 1-PH or 110V / 60HZ / 1-PH |
| Power Requirement | <500W |
| Computer Requested | There will be one PC with the machine |
| Dimension (L*W*H) | 750mm*200mm*500mm |
| Package Size | 850mm*300mm*600mm |
| Net Weight | 30KG |
| Gross Weight | 50KG |
| Rotary Device, Moving Table, other customized Automatic Matching System |
