Quick Details
-
Travel (X Axis)(mm):
-
320 mm
-
Travel (Y Axis)(mm):
-
315 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Place of Origin:
-
China
-
Weight (KG):
-
1700
-
CNC or not:
-
CNC
-
X/Z-axis rapid Traverse speed:
-
20m/min
-
Spindle nose size:
-
A2-5 N/A
-
Workpiece clamping method:
-
Hydraulic collet
-
Tool holder type:
-
Gang type tools
-
Tool size:
-
16*16mm
-
X\Z axis repeating positioning accuracy:
-
0.002mm
-
Cooling motor capacity:
-
120L
-
Hydraulic oil box capacity:
-
60L
-
Height from floor to spindle center:
-
1070mm
Quick Details
-
Working Table Size(mm):
-
300×400
-
Machine Type:
-
CNC Router
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
320 mm
-
Travel (Y Axis)(mm):
-
315 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Place of Origin:
-
China
-
Weight (KG):
-
1700
-
CNC or not:
-
CNC
-
X/Z-axis rapid Traverse speed:
-
20m/min
-
Spindle nose size:
-
A2-5 N/A
-
Workpiece clamping method:
-
Hydraulic collet
-
Tool holder type:
-
Gang type tools
-
Tool size:
-
16*16mm
-
X\Z axis repeating positioning accuracy:
-
0.002mm
-
Cooling motor capacity:
-
120L
-
Hydraulic oil box capacity:
-
60L
-
Height from floor to spindle center:
-
1070mm
|
Main Parameters
|
Unit
|
MLH650
|

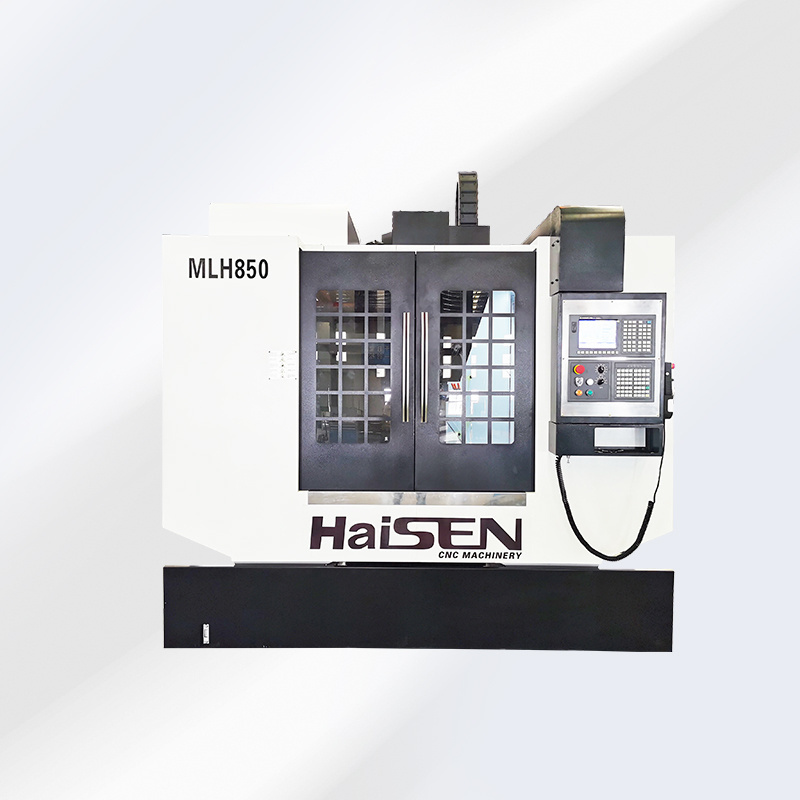

MLH850
|
MLH855
|
MLH1055
|
MLH1060
|
|
Worktable size
|
mm
|
410*700
|
500*1000
|
550*1000
|
550*1120
|
620*1300
|
|
X/Y/Z axis travel
|
mm
|
600/500/500
|
800/500/500
|
800/550/550
|
1050/550/550
|
1000/600/600
|
|
X/Y/Z rapid traverse speed
|
m/min
|
48/48/48
|
48/48/48
|
48/48/48
|
48/48/48
|
36/36/36
|
|
Worktable load
|
kg
|
450
|
520
|
550
|
800
|
800
|
|
Spindle taper
|
/
|
BT40
|
BT40
|
BT40
|
BT40
|
BT40
|
|
Spindle speed
|
rpm
|
8000(12000)
|
8000(12000)
|
8000(12000)
|
12000(18000)
|
8000(12000)
|
|
Spindle power
|
Kw
|
5.5
|
7.5
|
7.5
|
11
|
11
|
|
Positioning accuracy
|
mm
|
0.005/300
|
0.005/300
|
0.005/300
|
0.005/300
|
0.005/300
|
|
REpeated positioning accuracy
|
mm
|
0.003/300
|
0.003/300
|
0.003/300
|
0.003/300
|
0.003/300
|
|
Main Parameters
|
Unit
|
MLH1270
|
MLH1380
|
MLH1580
|
MLH1690
|
MLH1890
|
|
Worktable size
|
mm
|
700*1360
|
800*1400
|
800*1600
|
900*1800
|
900*2000
|
|
X/Y/Z axis travel
|
mm
|
1200/700/600
|
1300/800/700
|
1500/800/700
|
1600/900/680
|
1800/900/680
|
|
X/Y/Z rapid traverse speed
|
m/min
|
24/24/15
|
30/30/30
|
30/30/30
|
24/24/15
|
24/24/15
|
|
Worktable load
|
kg
|
1000
|
1000
|
1100
|
1600
|
1600
|
|
Spindle taper
|
/
|
BT50
|
BT50
|
BT50
|
BT50
|
BT50
|
|
Spindle speed
|
rpm
|
8000
|
8000
|
8000
|
8000
|
8000
|
|
Spindle power
|
Kw
|
15(18.5)
|
15(18.5)
|
15(18.5)
|
18.5(22)
|
18.5(22)
|
|
Positioning accuracy
|
mm
|
0.005/300
|
0.005/300
|
0.008/300
|
0.008/300
|
0.008/300
|
|
REpeated positioning accuracy
|
mm
|
0.003/300
|
0.003/300
|
0.005/300
|
0.005/300
|
0.005/300
|
