Quick Details
-
Dimension(L*W*H):
-
different as each model
-
Weight:
-
200 KG
-
Product name:
-
rotary drum screen
-
Certification:
-
S GS/CE/ISO 9001
-
Grid gap:
-
0.5mm-5mm
-
Optional:
-
automatic
-
Water flow rate:
-
450-1570m3/h
-
Drum diameter:
-
1400mm
-
Drum length:
-
1400mm
-
Power:
-
1.5kw
-
Material:
-
SS304/316
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
BOEEP
-
Voltage:
-
Cusomize
-
Dimension(L*W*H):
-
different as each model
-
Weight:
-
200 KG
-
Product name:
-
rotary drum screen
-
Certification:
-
S GS/CE/ISO 9001
-
Grid gap:
-
0.5mm-5mm
-
Optional:
-
automatic
-
Water flow rate:
-
450-1570m3/h
-
Drum diameter:
-
1400mm
-
Drum length:
-
1400mm
-
Power:
-
1.5kw
-
Material:
-
SS304/316
Why Choose Us

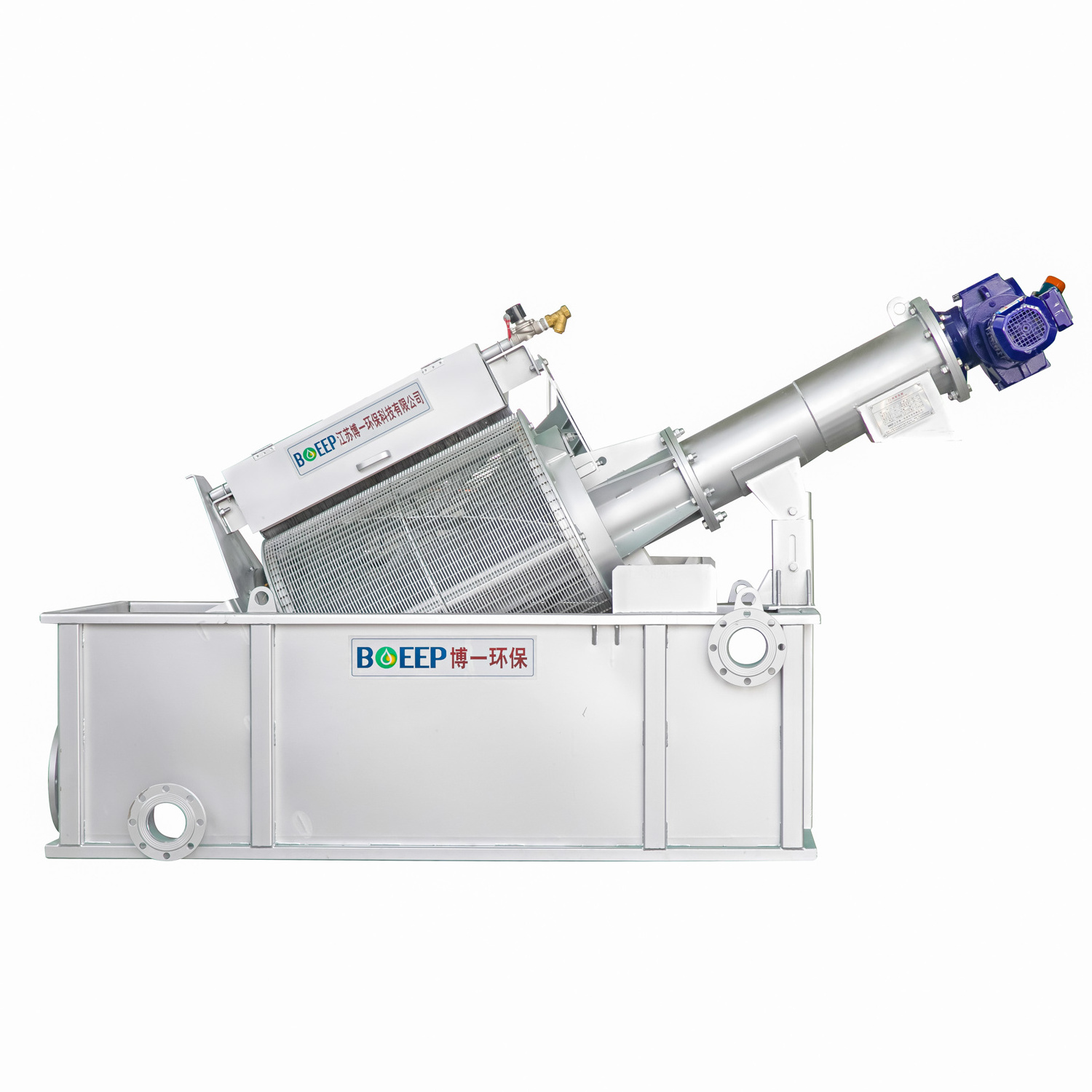

Product Description
BOEEP Rotary drum fine screen is widely applied for wastewater treatment projects such as urban wastewater, industry wastewater, food process industry, paper industry and so on. This equipment can clean scum, short fiber, and suspended matter from the water intake, and then discharge them after pressing. It can be used for wastewater treatment engineering such as high precision process, small screen gap and low depth of channel.
|
Product Name
|
rotary drum screen
|
|
Material
|
SS304/316
|
|
Grid gap
|
0.5mm-5mm
|
|
Water flow rate
|
80-250m3/h
|
|
Drum diameter
|
600-2600mm
|
|
Drum length
|
600-2400mm
|
|
Package
|
Plywood case
|
|
Motor
|
SEW/Customize
|
|
Warranty
|
1 year
|
|
Certification
|
SGS/CE/ISO9001
|

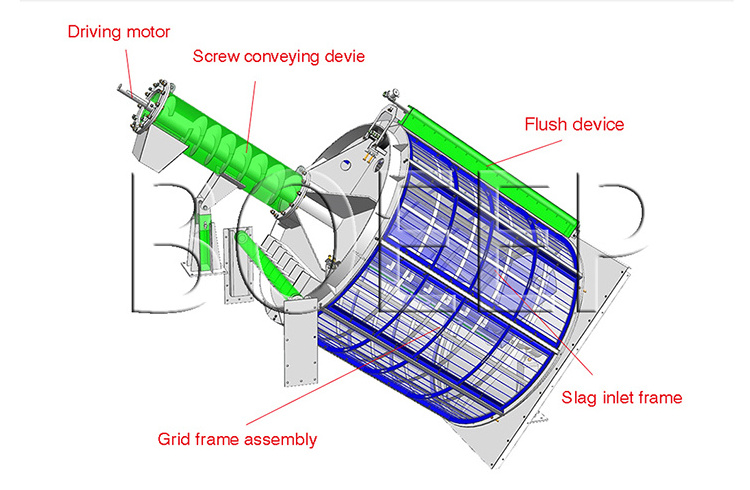

Structure Diagram
The Rotary Drum Fine Screen has four functions such as intercepting dregs, getting rid of dregs, spiral lifting and pressing dewatering. It is mounted in the channel with the angles of 35 degrees, and the wastewater flows into the drum from the port of the drum, and the grid can intercept the dregs. Then the drum rotates at a fixed speed, and the nylon brush and flush water spray nozzle above the drum can get rid of dregs and export them through spiral lifting. The dewatered and pressed dregs will be delivered to the container or the transportation equipment. The whole process is clear and no smell.
Product Features
1-
Little hydraulic loss, high efficiency, and large treating capacity.
2-
Whole stainless-steel structure, convenient in maintenance and long service life.
3-
The device can clean itself during working.
4-
Compact structure
.

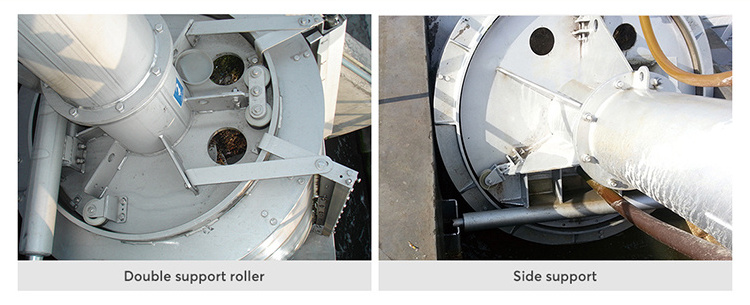

Product Details
Model Choice
Production Site

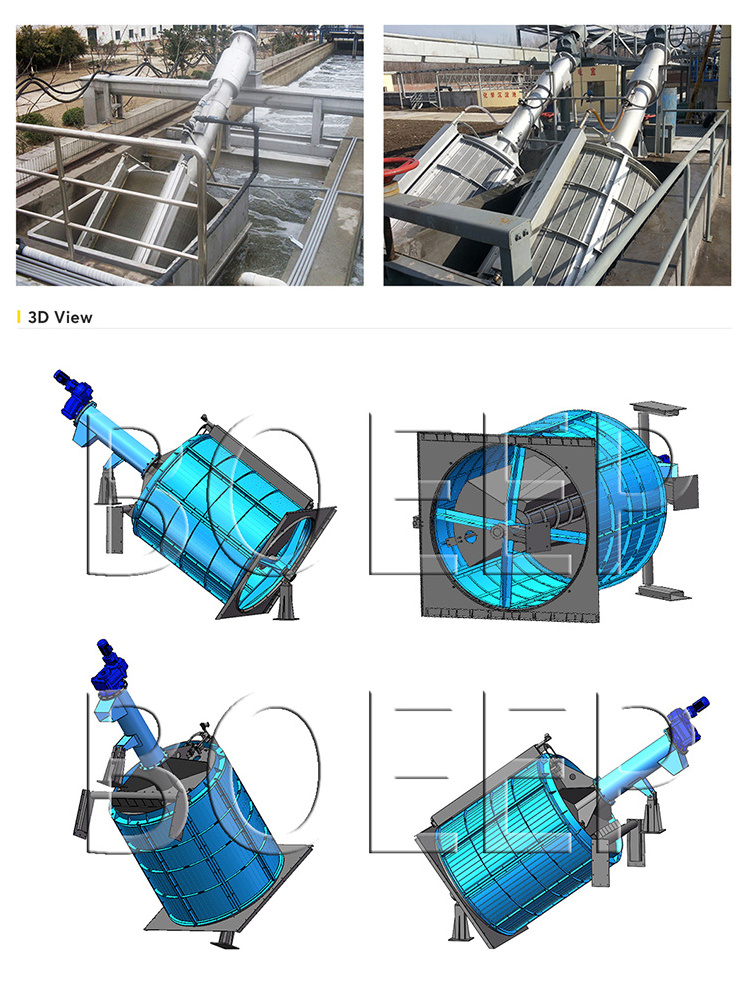

Project Site
