Quick Details
-
Certification:
-
CE/ROSH
-
Power/Capacity:
-
1K~12K Watts
-
AC Input Voltage:
-
100Vac/120Vac/220Vac/230Vac/240Vac
-
Phase & waveform:
-
single phase & sinewave
-
Battery voltage:
-
12V/24V/48V
-
Display:
-
LCD+LED
-
Communication interface:
-
RJ11/RS232(Optional)
-
Input voltage setting:
-
set in the LCD panel
-
Transfer Efficiency:
-
Line mode:>95% Battery Mode:>85%
Quick Details
-
Output Current:
-
30A
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
dc to ac pure sine wave 12 volt 220 volt inverter with charger
-
Certification:
-
CE/ROSH
-
Power/Capacity:
-
1K~12K Watts
-
AC Input Voltage:
-
100Vac/120Vac/220Vac/230Vac/240Vac
-
Phase & waveform:
-
single phase & sinewave
-
Battery voltage:
-
12V/24V/48V
-
Display:
-
LCD+LED
-
Communication interface:
-
RJ11/RS232(Optional)
-
Input voltage setting:
-
set in the LCD panel
-
Transfer Efficiency:
-
Line mode:>95% Battery Mode:>85%

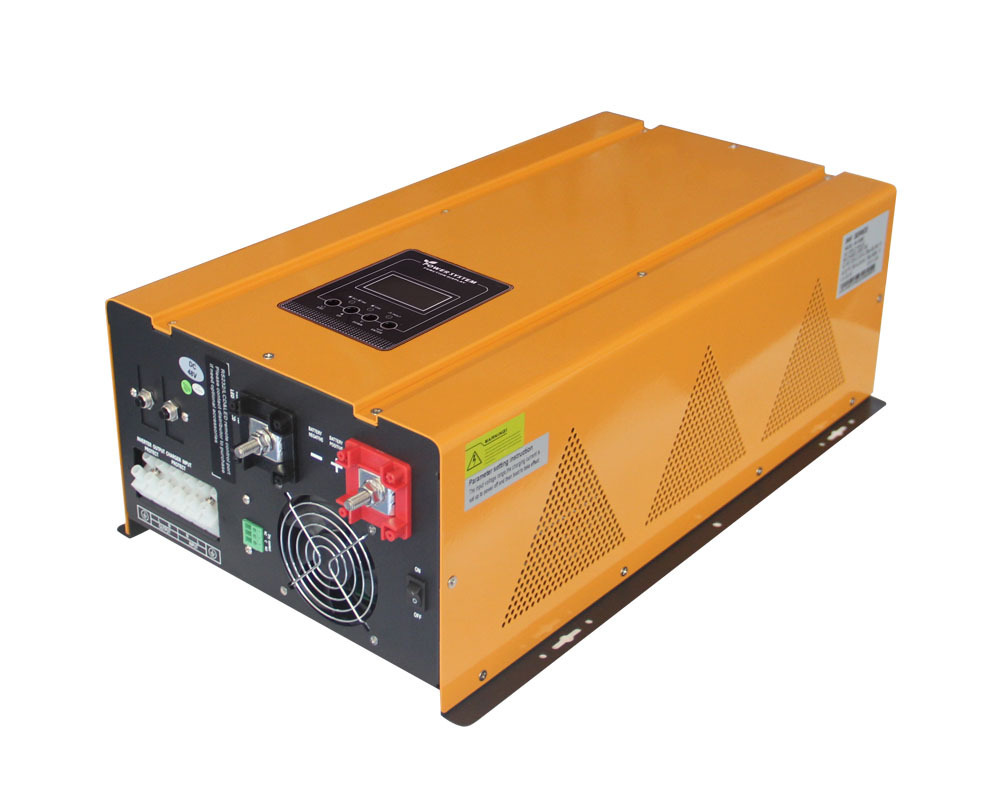

low frequency pure sine wave inverter charger power inverter 1000W to 12000W
1KW-12KW off grid DC to AC pure sine wave power inverter with inbuilt battery charger,12V/24V/48VDC to 100VAC/120VAC/220VAC/230VAC/240VAC for solar system use
| Model | 1012E | 2024E | 3024/48E | 4024/48E | 5024/48E | 6024/48E | ||
| Rated Power | 1000W | 2000W | 3000W | 4000E | 5000W | 6000W | ||
| Transfer time | Typical 10ms | |||||||
| Invert mode | ||||||||
| Norminal output volt | 120Vac/230Vac(100Vac~120Vac;200Vac~240Vac) | |||||||
| Output frequency | 50Hz+/-0.3Hz;60Hz+/-0.3Hz | |||||||
| Output wave | Pure Sine Wave | |||||||
| Output overload | 105%<load<120%+/-10%:Fault(turn off output after 10s) | |||||||
| 120%<load<150%+/-10%:Fault(turn off output after 3s) | ||||||||
| 150%<load+/-10%: Fault(turn off output after 1s) | ||||||||
| Short circuit protection | Software protection | |||||||
| Norminal efficiency | >88% | |||||||
| Power Factor | 0.9~1 | |||||||
| Line mode | ||||||||
| Input voltage range | Narrow range | Wide range | ||||||
| Norminal output voltage +/-15% | Norminal output voltage +15%,-23% | |||||||
| Input frequency | 40~70Hz | |||||||
| Input Wave form | Sine wave(Utility or generator) | |||||||
| Short circuit protect | Circuit breaker | |||||||
| Output overload | 120%<load<150%+/-10%:Fault(turn off output after 60s) | |||||||
| 150%<load+/-10%: Fault(turn off output after 1s | ||||||||
| Over charge protect shutdown | 16V for 12V(*2 for 24V,and *4 for 48V) | |||||||
| Efficiency online | >95% | |||||||
| AC charge | Charge current can be set(5A down/up setting) | |||||||
| Selection of battery charging voltage type | ||||||||
| Battery type | Fast V | Float V | ||||||
| Gel U.S.A | 14.0V | 13.7V | ||||||
| A.G.M1 | 14.1V | 13.4V | ||||||
| A.G.M2 | 14.6V | 13.7V | ||||||
| Sealed lead acid | 14.4V | 13.6V | ||||||
| Gel euro | 14.4V | 13.8V | ||||||
| Open lead acid | 14.8V | 13.3V | ||||||
| Calcium | 15.1V | 13.6V | ||||||
| De Sulphation | 15.5V for 4 hours then off | |||||||
| Lithium | 14.7V | |||||||
| Other | User-defined | |||||||
| battery | ||||||||
| Input | 12V | 24V | 24V/48V | 24V/48V | 24V/48V | 24V/48V | ||
| Voltage range | 12V(10V~16V)+/-0.3V;/*2 for 24V/*4for 48V | |||||||
| Low DC warning volt | 12V(10.5V+/-0.3V);/*2 for 24V/*4for 48V | |||||||
| Low dc cut-off volt | 12V(10V+/-0.3V);/*2 for 24V/*4for 48V | |||||||
| Other | ||||||||
| Operating temp range | 0~40℃ | |||||||
| Humidity | 0~95% | |||||||
| Noise | <50dB | |||||||
| Dimension(mm) | 422*217*210 | 574*345*197 | ||||||
- Pure sine wave inverter
- Output power factor 1
- Selectable high power charging current
- Selectable input voltage range for home appliances and personal computers
- Configurable AC/Battery input priority via LCD setting
- Compatible with generator power
- Dry contact port for generator to realize mutual control by generator and utility
- Auto restart while AC is recovering
- Overload and short circuit protection
- Smart battery charger design for optimized battery performance
- Cold start function
- Smart fan running control to extend service life and reduce noise
- Color LCD display
- Supports the use lithium batteries
- Wave by wave phase detection, more stable and reliable
- RS 232 communication port and remote control panel optional
