Quick Details
-
Model Number:
-
DSN5025 SERIES
-
Application:
-
smart phone, LCD, LED etc
-
Product name:
-
0.025mm Grafoil PGS Graphite Sheet
-
Thermal conductivity (X-Y-axis):
-
1500-1700 w/mk
-
Thermal conductivity (Z-axis):
-
15-20w/mk
-
Density:
-
2.1g/cm3
-
Hardness:
-
85 Shore A
-
Tensile strength:
-
650psi
-
Flammability rating:
-
94VO
-
Temperature resistance:
-
- 40℃ to 400℃
-
Thermal resistance:
-
450℃
-
Conductivity:
-
19000s/cm
Quick Details
-
C Content (%):
-
99.9%
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DSN
-
Model Number:
-
DSN5025 SERIES
-
Application:
-
smart phone, LCD, LED etc
-
Product name:
-
0.025mm Grafoil PGS Graphite Sheet
-
Thermal conductivity (X-Y-axis):
-
1500-1700 w/mk
-
Thermal conductivity (Z-axis):
-
15-20w/mk
-
Density:
-
2.1g/cm3
-
Hardness:
-
85 Shore A
-
Tensile strength:
-
650psi
-
Flammability rating:
-
94VO
-
Temperature resistance:
-
- 40℃ to 400℃
-
Thermal resistance:
-
450℃
-
Conductivity:
-
19000s/cm
Synthetic Graphite
Synthetic graphite sheet, also called artificial graphite sheet, is a new film material made of Polyimide
by sintering.
Synthetic graphite is available with an adhesive backing on one side, which can significantly improve
Synthetic graphite is available with an adhesive backing on one side, which can significantly improve
the thermal resistance. A wide range of die-cut shapes & components are manufactured to customer specifications on request.

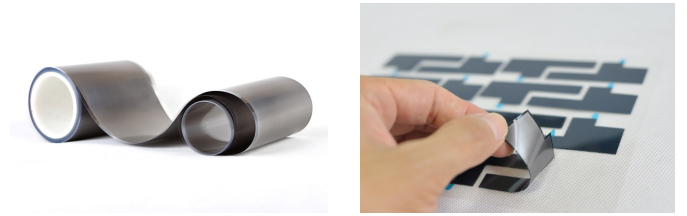

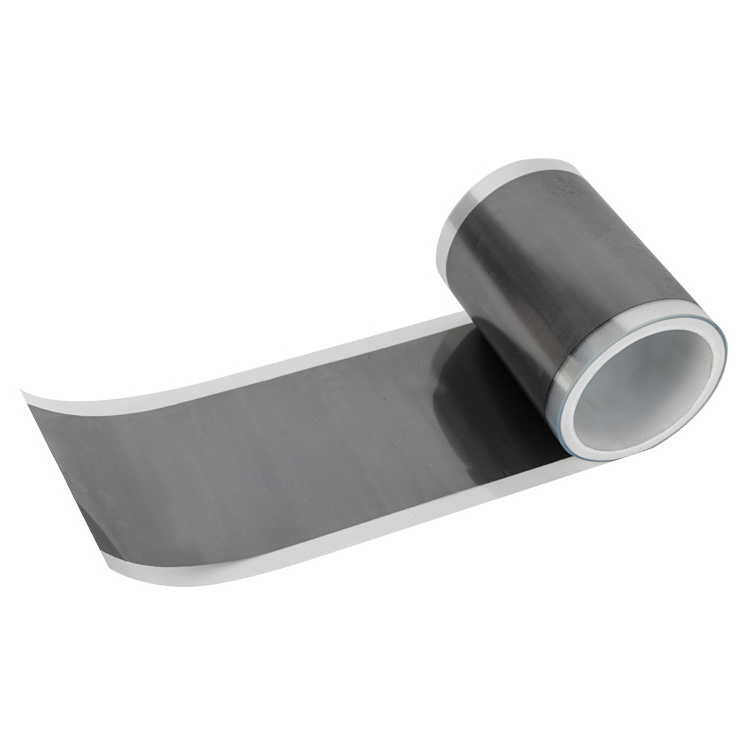

Pictures of synthetic graphite sheet
Features of synthetic graphite sheet:
Parameters of synthetic graphite sheet
|
Thickness (mm)
|
|
DSN5012
|
DSN5017
|
DSN5025
|
DSN5032
|
DSN5040
|
|
|
|
|
0.012±0.003
|
0.017±0.003
|
0.025±0.003
|
0.032±0.004
|
0.04±0.005
|
|
|
Thermal conductivity
|
X-Y axis
(w/m.k)
|
1700~1900
|
1500~1700
|
1400~1600
|
1300~1500
|
1200~1400
|
|
|
|
Z axis
(w/m.k)
|
10~15
|
10~15
|
12~18
|
12~18
|
18~20
|
|
|
Density (g/cm3)
|
|
2.15±0.1
|
2.12±0.1
|
2.1±0.1
|
2±0.1
|
1.9±0.1
|
|
|
Hardness(shore A)
|
|
85
|
85
|
85
|
85
|
85
|
|
|
Tensile strength (psi)
|
|
650
|
650
|
650
|
650
|
650
|
|
|
Heat resistance
temperature (℃) |
|
400
|
400
|
400
|
400
|
400
|
|
|
Thermal resistance (℃)
|
|
0.15%
|
0.15%
|
0.15%
|
0.15%
|
0.15%
|
|
|
Electric conductivity (s/cm)
|
|
50000
|
50000
|
50000
|
50000
|
50000
|
|
|
Thickness (mm)
|
|
DSN5050
|
DSN5070
|
DSN5100
|
DSN5150
|
DSN5200
|
|
|
|
|
0.05±0.005
|
0.07±0.007
|
0.1±0.01
|
0.15±0.015
|
0.2±0.02
|
|
|
Thermal conductivity
|
X-Y axis
(w/m.k)
|
1100~1300
|
1000~1200
|
800~1000
|
600~800
|
500~700
|
|
|
|
Z axis
(w/m.k)
|
15~22
|
15~22
|
15~22
|
15~22
|
15~22
|
|
|
Density (g/cm3)
|
|
1.85±0.1
|
1.8±0.1
|
1.5±0.1
|
1.1±0.5
|
1±0.1
|
|
|
Hardness(shore A)
|
|
85
|
85
|
85
|
85
|
85
|
|
|
Tensile strength (psi)
|
|
650
|
650
|
650
|
650
|
650
|
|
|
Heat resistance
temperature (℃) |
|
400
|
400
|
400
|
400
|
400
|
|
|
Thermal resistance (℃)
|
|
0.15%
|
0.15%
|
0.15%
|
0.15%
|
0.15%
|
|
|
Electric conductivity (s/cm)
|
|
50000
|
50000
|
50000
|
50000
|
50000
|
|

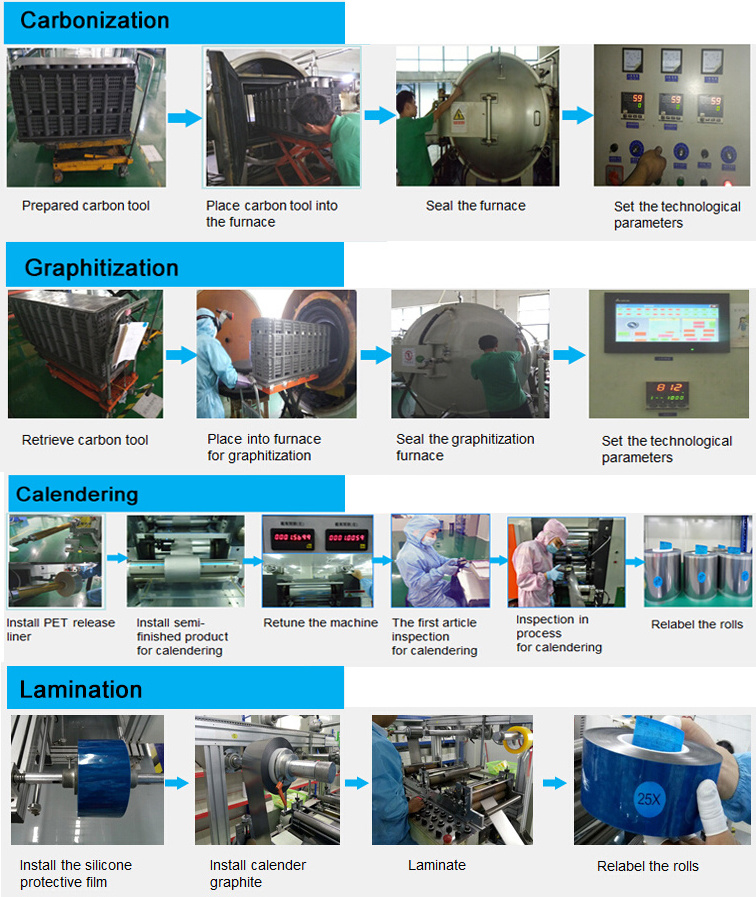

Production Process of Graphite Sheet
Product Application
Other Products
Quality Control
Laboratory and product inspection equipment
R & D Team
Certificates
ISO9001-2015, ISO14001-2015, IATF16949-2016, UL
