Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DANREL
-
Dimension(L*W*H):
-
150*110*190CM
-
Weight:
-
750 KG
-
Number of working stations:
-
12
-
Working Pressure:
-
0.5-0.7 MPa
-
Material:
-
SUS304
-
Carton Height Range:
-
60-200MM(customization offered)
-
Carton Length:
-
20-80MM(customization offered)
-
Carton Width:
-
20-80MM(customization offered)
-
Air consumption:
-
150L/min
-
Capacity:
-
30-60 cartons/min
-
Function:
-
Automatic Cartoning Machine
-
Certification:
-
CE
Quick Details
-
Application:
-
Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware
-
Packaging Material:
-
Plastic, Paper, Metal, Glass, Wood
-
Voltage:
-
AC 220V, Single Phase
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DANREL
-
Dimension(L*W*H):
-
150*110*190CM
-
Weight:
-
750 KG
-
Number of working stations:
-
12
-
Working Pressure:
-
0.5-0.7 MPa
-
Material:
-
SUS304
-
Carton Height Range:
-
60-200MM(customization offered)
-
Carton Length:
-
20-80MM(customization offered)
-
Carton Width:
-
20-80MM(customization offered)
-
Air consumption:
-
150L/min
-
Capacity:
-
30-60 cartons/min
-
Function:
-
Automatic Cartoning Machine
-
Certification:
-
CE
Product Description

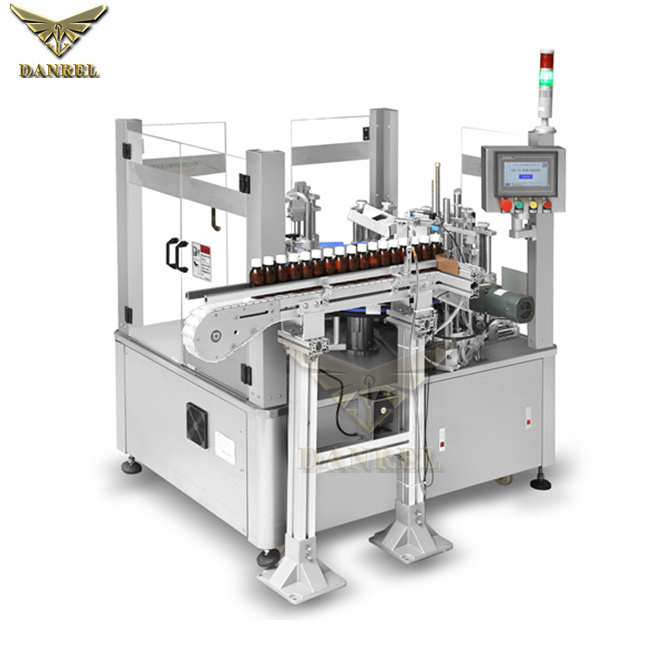

DANREL CARTON BOX PACKING MACHINE(CARTONER)
Main Functions:
1. Automatic Carton Box Loading
1. Automatic Carton Box Loading
2. Automatic Bottles & Jar Feeding(As request)
3. Automtic Cartoning
4. Coder for coding expiration date or series number on the box (As request)
5. Automatic Leaflet /Brochure Loading System(As
request)
* Absolutely Economic Automatic cartoning machine.
* Constructed with materials that meet cG.M.P.
* Small footprint is ideal for space sensitive operations.
* User friendly designed for high throughput with single operator
* Quick change tooling capable -- reduces downtime during tooling changeover.
* Simplified engineering design allow a easy operation and low maintenance.
* Security guarding provides safety operation for the operator.
* Speed regulation by means of a inverter.
* High precision index provide of accurate intermittent operation station.
* Torque limiter - preventing starwheel from colliding.
|
Model No
|
DR-ZH226A
|
|
|
||
|
Motor Power
|
1/4HP 15:1
|
|
|
||
|
Power Supply
|
AC 220V, Single Phase, 50/60Hz
|
|
|
||
|
Capacity
|
30-60 cartons per min
|
|
|
||
|
Carton Length Range
|
20-80MM(customization offered)
|
|
|
||
|
Carton Width Range
|
20-80MM
(customization offered)
|
|
|
||
|
Carton Height Range
|
60-200MM(customization offered)
|
|
|
||
|
Carton Paper Requirement
|
250-350g/m2(customization offered)
|
|
|
||
|
Working Pressure
|
0.5-0.8 MPa
|
|
|
||
|
Number of work-stations
|
12
|
|
|
||
|
Drive mode
|
Pneumatic
|
|
|
||
|
Air Consumption
|
150L/min
|
|
|
||
|
Packing Dimension
|
L*W*H 1800*1200*1900 mm
|
|
|
||
|
Gross Weight
|
750 KGS
|
|
|
||
