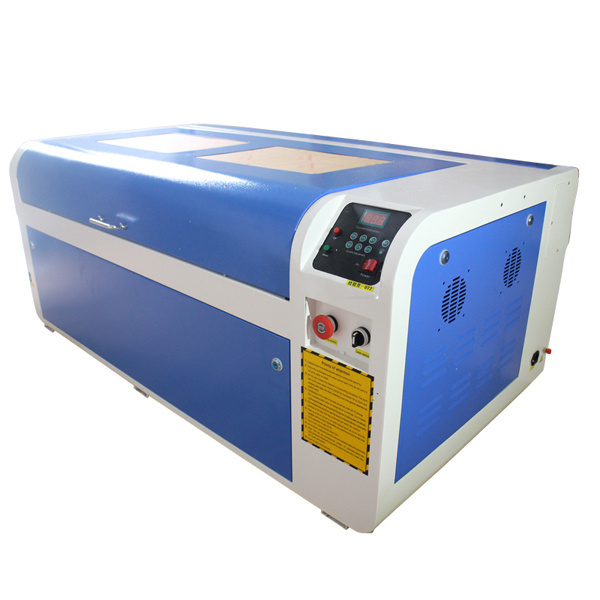

CO2 Laser Engrave Machine 1040 1060 80W Wood Machine For Artistic Design
CO2 Laser Engrave Machine 1040 1060 80W Wood Machine For Artistic Design
CO2 Laser Engrave Machine 1040 1060 80W Wood Machine For Artistic Design
CO2 Laser Engrave Machine 1040 1060 80W Wood Machine For Artistic Design
CO2 Laser Engrave Machine 1040 1060 80W Wood Machine For Artistic Design
CO2 Laser Engrave Machine 1040 1060 80W Wood Machine For Artistic Design
CO2 Laser Engrave Machine 1040 1060 80W Wood Machine For Artistic Design
CO2 Laser Engrave Machine 1040 1060 80W Wood Machine For Artistic Design

CO2 Laser Engrave Machine 1040 1060 80W Wood Machine For Artistic Design

FOB Reference Price: Get Latest Price
≥2 Sets
US $1500
Free Inquiry
Customized Request
Contact us For product pricing, customization, or other inquiries:
Contact Us
  • Product Details
  • {{item.text}}

Quick Details

Graphic Format Supported:
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
Cooling Mode:
WATER COOLING
Place of Origin:
Guangdong, China
Brand Name:
ChinaCNCzone
Dimension(L*W*H):
157*94*78 cm
Weight (KG):
145 KG
Total power:
<300W
Laser type:
CO2
Laser power:
80W
Working area:
400*1000 mm
Lifting platform:
0-250 mm Honeycomb Worktable
Engraving depth:
0-20 mm
Cutting depth:
0-20 mm
Engraving speed:
0-600 mm/s
Cutting speed:
0-600 mm/s
Min shaping character:
Character: 2*2mm, Letter: 1*1mm

Quick Details

Engraving Area:
400*1000 mm
Laser Type:
CO2
Engraving Speed:
0-600mm/s
Graphic Format Supported:
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
Cooling Mode:
WATER COOLING
Place of Origin:
Guangdong, China
Brand Name:
ChinaCNCzone
Dimension(L*W*H):
157*94*78 cm
Weight (KG):
145 KG
Total power:
<300W
Laser type:
CO2
Laser power:
80W
Working area:
400*1000 mm
Lifting platform:
0-250 mm Honeycomb Worktable
Engraving depth:
0-20 mm
Cutting depth:
0-20 mm
Engraving speed:
0-600 mm/s
Cutting speed:
0-600 mm/s
Min shaping character:
Character: 2*2mm, Letter: 1*1mm
Product Description
Chinacnczone 1040 80w/100w CO2 small laser machine
1. Adjustable Speed and Power, Smooth and Precise Engraving and Cutting
2. USB Interface
3. Air Assist, Remove heat and combustible gases from the cutting surface.
18W Air pump, flow can be 38L/Min.
4. Embedded Exhaust Fan, Easier install, Safer transport.
40W exhaust fan, flow can be 5.27m³\Min.
5. Rotary Axis, Engrave any cylindrical object.
6. Cellular platform, Leave no chippings on working area.
7. Intuitive Control Panel, Set Speed, power and more controls directly from the laser.
8. Water Cooling and Protection System with a chiller.
9. Laser position.
10. Emergency Stop Buttom.
11. Larger Size, 400*1000mm working area.
12. Lifting platform is electric control.
13. Drag - and - chain transmission line
14. Laser focal length: 5CM
15. A limit switch let it can only work when the cover is closed.
16. Machine service life: 7200H at least for laser tube, 5-8 years for machine body.
Specification Sheet
* Stable stock, CE certified factory, fast delivery for max production. Offer one-stop solution for engraving business.
Total power
<300W
Laser power
80W
Laser type
CO2 laser engraving machine
Power supply
AC 220V/110V
Working area
400*1000 mm
Engraving depth
0-10 mm (different material differ)
Cutting depth
0-10 mm
Engraving speed
0-600mm/s
Cutting speed
0-600mm/s
Lifting platform
0-250 mm Honeycomb Worktable
Locating precision
<0.01 mm
Min shaping character
Character: 2*2mm, Letter: 1*1mm
Working temperature
5℃-45℃
Working humidity
5%-95%
Resolution ratio
≤2000dpi
Data transfer interface
USB 2.0 (offline)
System environment
Windows XP / Win 7 / Win 8
Cooling
Water Cooling and protection system with chiller
Graphic Format Supported
The Files which CorelDraw & WinsealXP can identify
(BMP,JPEG,PLT,CDR,AI,) TIFF,PCX,DIB,TIF
Compatible software
CorelDraw,WinsealXP
Color separation
NO
Sloping engraving
NO
Protection
Emergency stop buttom and Stop working when water broken
Machine Dimensions
140*75*58 cm
Packing
Wooden box with foam inside
Package Dimension
157*94*78 cm
Package Weight
230 kg
Tips : 4th Axis for optional，4axis can engrave cylindrical objects
Our Advantages
CW-300 Chiller
CW-3000 is not only equipped with anti-clogging chiller heat exchanger,
Also has a water flow detection alarm, over temperature alarm protection, low power consumption.
High efficiency, long life, durable, easy to operate.
Heat dissipation: 50W / ℃
Product packaging
packing list
1 PCS 80w/100w laser CO2 machine
1. Rotary Axis
2. Honeycomb Table
3. Air Pump
4. Water Pump
5. USB Key/USB Cable
6. 4 Wheels
7. Exhaust Port
8. CW-3000 Chiller
