Quick Details
-
Smart Control:
-
By cellphone
-
MTBF:
-
10 Million Cycles
-
Speed:
-
0.9~6 sec. adjustable
-
Boom Length:
-
Max. 6mtr
-
DC Servo Motor:
-
100% duty cycle
-
Boom Direction:
-
Exchangeable
-
Safety 1:
-
Auto-reversing on obstacle
-
Safety 2:
-
Swing-off
-
Boom Detecting:
-
Alarm against Swing-off
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
DASHOU
-
Communication:
-
TCP/IP RS485
-
Smart Control:
-
By cellphone
-
MTBF:
-
10 Million Cycles
-
Speed:
-
0.9~6 sec. adjustable
-
Boom Length:
-
Max. 6mtr
-
DC Servo Motor:
-
100% duty cycle
-
Boom Direction:
-
Exchangeable
-
Safety 1:
-
Auto-reversing on obstacle
-
Safety 2:
-
Swing-off
-
Boom Detecting:
-
Alarm against Swing-off
Product Description
10 Million Cycles Automated Parking Barrier for Car Park
Description

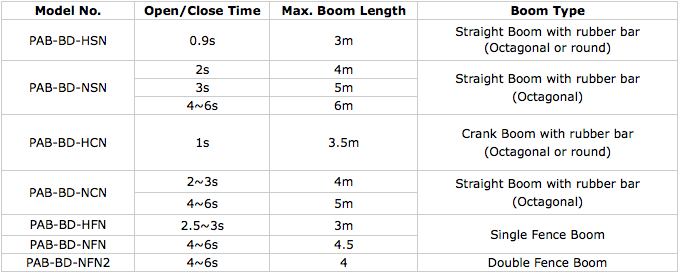

1) Opening/closing time: 0.9~6 sec. adjustable
2) Max. 6m straight arm
Max. 5m folding arm
Max. 4.5m fence arm
3) Inclusive of arm, 2 remoter, air switch and "push button"
4) Exclusive of LED light bar, boom bracket and swing-off: need to buy extra
5) Optional housing color: yellow or customized

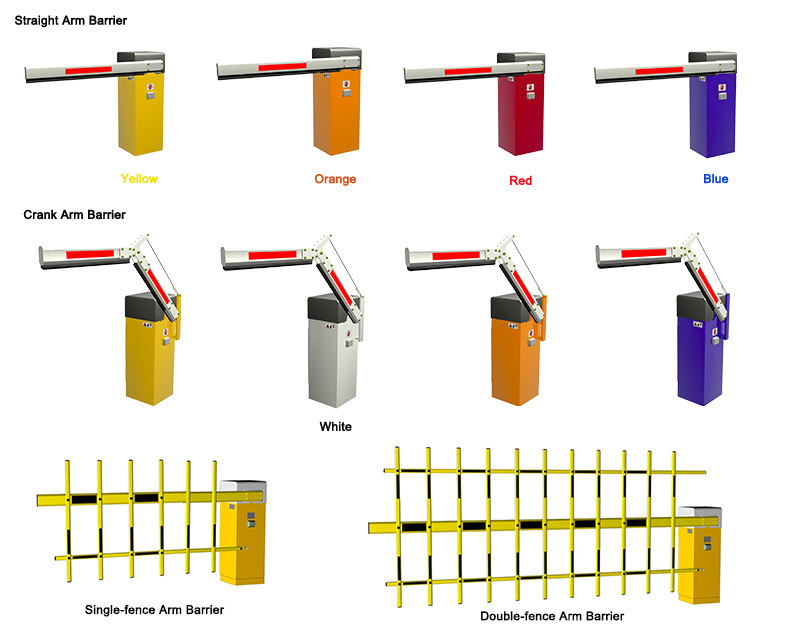

6) Easily change different boom type (straight/crank/fence) without replacing any parts
7) Boom direction is exchangeable without replacing any parts
8) Price shown in this product for model PAB-BD-NSN only
Control Barrier On Smartphone (Optional)
TCP-IP Port for Easy Integration (Optional)
Free-maintenance DC Brushless Motor
10 million cycles MTBF & 100% duty cycle
Manually Control When Power Is Off
Automatically Check Status & Report Error
Boom Auto-reverse On Obstacle
LED Illumination Makes Boom Visible
Backup Solar Panel or Lead-acid Cell
56 Hours Aging Test Ensures Quality
Boom Swing-off Protects Boom & Vehicle
Boom Direction Is Exchangeable
Without Replacing Any Part
1. Alarm when boom swing-off (Optional)
2. Different types of boom can be changed without replacing any parts
3. Backup Solar Panel or Lead-acid Cell provides you continuous power supply
4. Variable frequency controller automatically optimizes boom moving, ensures smooth moving without shake
5. Boom automatically open up fully in case of power failure (Optional)
6. Boom will be automatically locked when power is off (Can not work together with function 5 at the same time)
7. Safety for Vehicle--- Anti-hit by Loop Detector (Optional)
8. Safety for Vehicle--- Anti-hit by IR photocell (Optional)
9. Safety for Vehicle--- Anti-hit by "Opening Priority"
10. Automatically close in given time (Programmable)
11. Automatically close or open by loop detector (Optional)
12. Disable/enable function of “Alway-open Mode of remoter” on controller
13. Disable/enable function of “Memory of Repeated Opening”
14. Anti-condensation in cold climate
15. Simplified design, easy installation and maintenance reduces your labor cost
2. Different types of boom can be changed without replacing any parts
3. Backup Solar Panel or Lead-acid Cell provides you continuous power supply
4. Variable frequency controller automatically optimizes boom moving, ensures smooth moving without shake
5. Boom automatically open up fully in case of power failure (Optional)
6. Boom will be automatically locked when power is off (Can not work together with function 5 at the same time)
7. Safety for Vehicle--- Anti-hit by Loop Detector (Optional)
8. Safety for Vehicle--- Anti-hit by IR photocell (Optional)
9. Safety for Vehicle--- Anti-hit by "Opening Priority"
10. Automatically close in given time (Programmable)
11. Automatically close or open by loop detector (Optional)
12. Disable/enable function of “Alway-open Mode of remoter” on controller
13. Disable/enable function of “Memory of Repeated Opening”
14. Anti-condensation in cold climate
15. Simplified design, easy installation and maintenance reduces your labor cost
|
Open/close time
|
0.9~6 sec. adjustable
|
|
Boom Arm
|
Max. 6mtr 45×100mm Aluminum alloy Octagonal boom
Max. 3m round boom
|
|
Power Supply
|
AC 220/110V±10%,50/60HZ
|
|
Motor
|
50W DC24V brushless servo torque motor
|
|
Duty Cycle
|
100%
|
|
MTBF
(Meantime before failuare)
|
10 Million Cycles
|
|
Controller
|
80C51 MCU, 20MHz, PWM variable frequency servo controller board
|
|
Remote distance
|
20~50mtr.
|
|
RS 485 interface
|
9600bps, ASCII decimal encoded(optional)
|
|
Housing material
|
2mm cold-roller sheet
|
|
Housing Painting
|
Powder coating, 10 years without rust,shedding and fading
|
|
IP level
|
IP 54
|
|
Housing size (H*W*D)
|
950mm×320mm×329mm
|
|
Package size
|
1100mm×480mm×430mm
|
|
G.W
|
46KG
|
|
Operating temperature
|
-40°c -75°c
|
|
Humidity
|
10%-95%
|
