Quick Details
-
Seals Type:
-
OPEN 2RS
-
Place of Origin:
-
Shandong, China
-
Bearing Name:
-
angular contact ball bearing
-
Material:
-
Bearing Steel Gcr15
-
Application:
-
Machinery
-
Brand:
-
YLY CDZZ
-
Bearing Material:
-
Bearing Steel\Gcr15
-
Clearance:
-
C3 C4 C5
-
Bearing Model:
-
7409AC 7410AC 7411AC 7412AC
-
Balls Material:
-
Bearing Steel Gcr15
-
Vibration:
-
V1 V2 V3 V4
-
Delivery Time:
-
spot goods
Quick Details
-
Precision Rating:
-
P6 P5 P4
-
Number of Row:
-
Single row
-
Brand Name:
-
YLY/CDZZ/OEM
-
Seals Type:
-
OPEN 2RS
-
Place of Origin:
-
Shandong, China
-
Bearing Name:
-
angular contact ball bearing
-
Material:
-
Bearing Steel Gcr15
-
Application:
-
Machinery
-
Brand:
-
YLY CDZZ
-
Bearing Material:
-
Bearing Steel\Gcr15
-
Clearance:
-
C3 C4 C5
-
Bearing Model:
-
7409AC 7410AC 7411AC 7412AC
-
Balls Material:
-
Bearing Steel Gcr15
-
Vibration:
-
V1 V2 V3 V4
-
Delivery Time:
-
spot goods
Product Paramenters

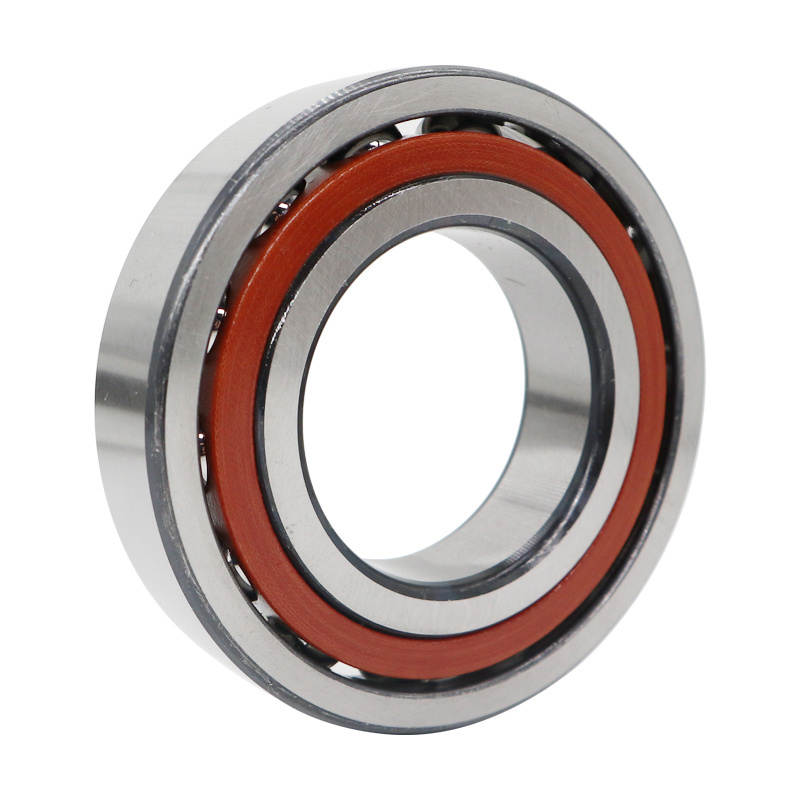

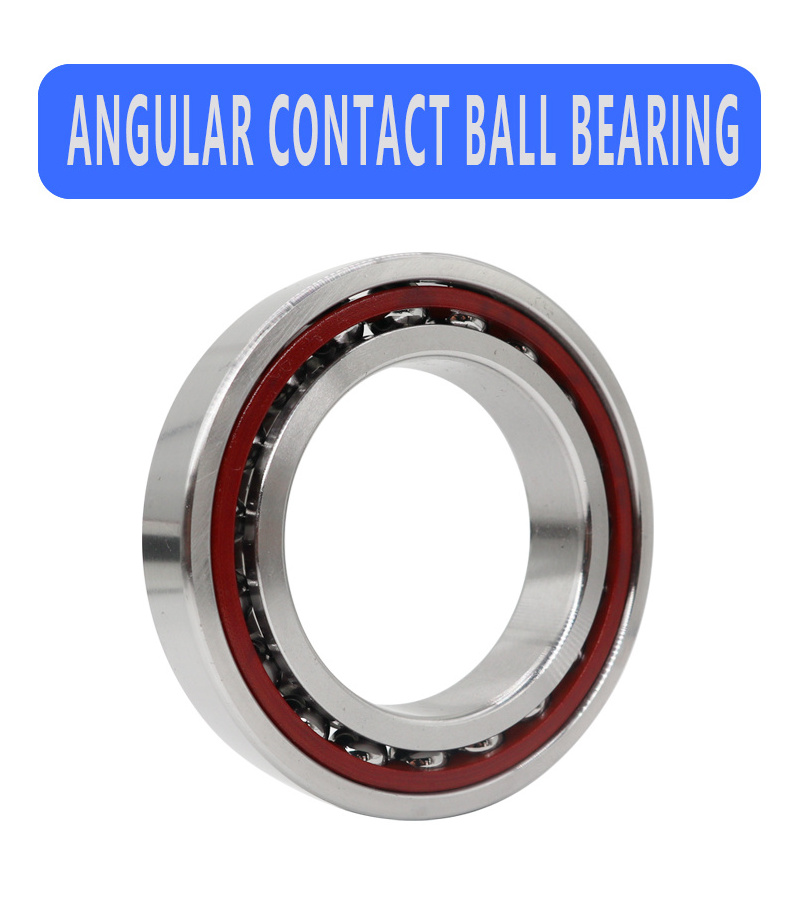

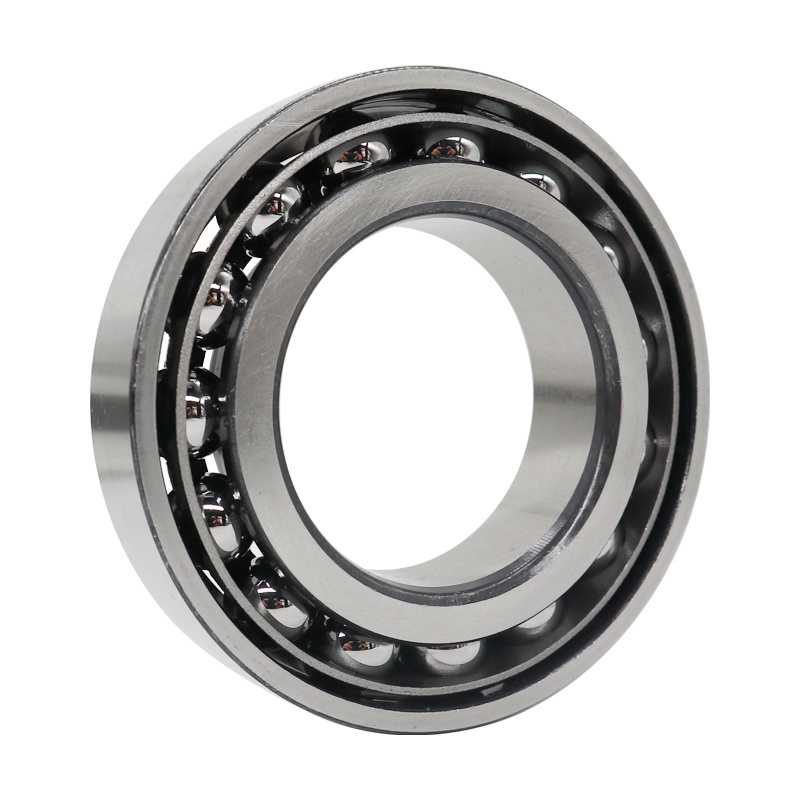

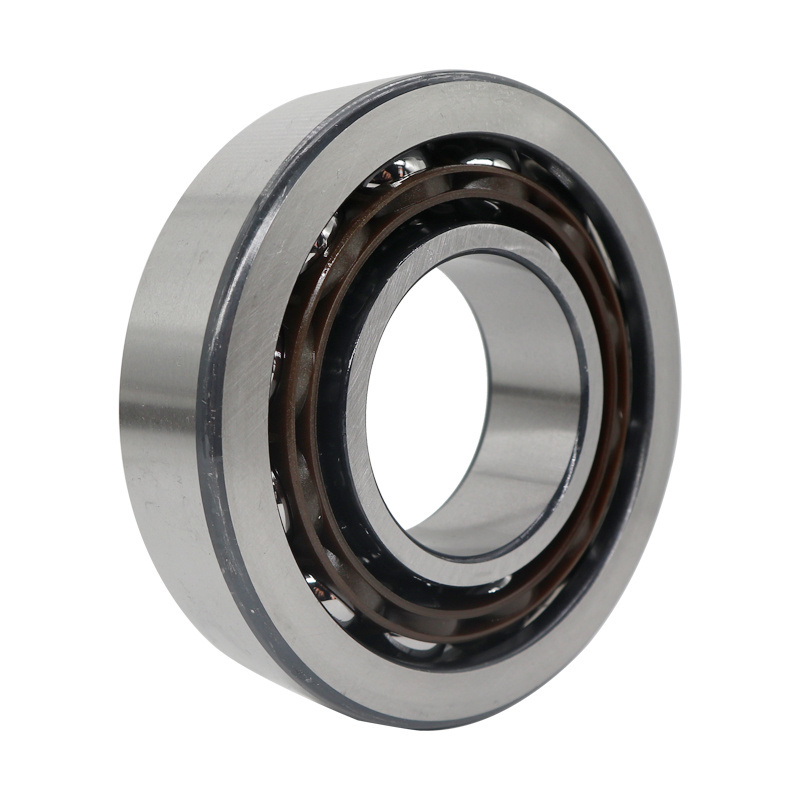

High precision angular contact ball bearing 7409AC 7410AC 7411AC 7412AC High quality angular contact ball bearing
Angular contact ball bearing
introduce
There are raceways on the inner and outer rings of angular contact ball bearings, and the inner and outer rings can make opposite displacement along the axial direction of the bearing. This kind of bearing is especially suitable for bearing compound loads, that is, radial and axial loads acting simultaneously. The axial load bearing capacity of angular contact ball bearing increases with the increase of contact Angle α. The contact Angle is the Angle between the contact point connection of the ball and raceway and the vertical line of the bearing axis in the radial plane.
Angular contact ball bearing models are divided into: α=15° angular contact ball bearing (70000C type); Angular contact ball bearing (70000AC type) with α=25°; Angular contact ball bearing (type 70000B) with α=40°; Back-to-back pairs double angular contact ball bearings [70000C(AC, B)/DB type]; Face to face paired double angular contact ball bearings [70000C(AC, B)/DF type]; Series paired double angular contact ball bearings [70000C (AC, B)/DT type]; Double row angular contact ball bearings with ball filling notches (type 00000); Double row angular contact ball bearings without ball notches (Type 00000A); Double row angular contact ball bearing (type 00000A-Z) with dust-proof cover without ball notch; Double row angular contact ball bearings (type 00000A-2Z) with dust-proof covers on both sides without ball notches; Double row angular contact ball bearing (type 00000ARS) with sealing ring on one side without ball notch; Double row angular contact ball bearings (type 00000A-2RS) with sealing rings on both sides without ball notches; Four point angular contact ball bearings (QJ0000 type), 13 kinds
.
Product characteristics
1, general with set of bearing
General distribution group of bearing is through special processing, when the bearing is installed close to each other, any combination can be established internal clearance or preload, and average load distribution, without having to use gaskets or similar device.
Paired bearings are used in: when the load carrying capacity of a single bearing is insufficient (using channeling configuration) or when to bear a combined load or axial load acting in two directions (using back-to-back or face to face configuration).
2, the basic design of bearings (can not be used as general assembly), for the configuration of a single bearing
The basic design of single row angular contact ball bearings is mainly used in the configuration of only one bearing at each position. Its width and protrusion are common tolerances. Therefore, it is not suitable to install two single-row angular contact ball bearings close together
|
Bearing type
|
Angular contact ball bearing
|
|
Brand
|
YLY、CDZZ、OEM
|
|
Business type
|
Manufacturer
|
|
material quality
|
Bearing steel Gcr15, stainless steel, ceramic, high-temperature steel
|
|
packing
|
Carton, wooden box, pallet, OEM
|
|
heat treatment
|
Bainite quenching, martensite quenching, salt bath quenching
|
|
Delivery method
|
Air, sea, express
|
|
delivery time
|
3-7 working days
|
|
Minimum order quantity
|
1 piece
|
|
Inventory Status
|
Large quantity of goods in stock, fast delivery
|
|
Vibrating
|
P6、P5、P4、P3、p2
|
|
Sealing type
|
2RS rubber seal, open type without seal
|
|
service
|
OEM
|
|
specialized
|
20 years of bearing manufacturing experience
|
|
