GOGOATC Pneumatic swing clamp cylinder
GOGOATC Pneumatic swing clamp cylinder
GOGOATC Pneumatic swing clamp cylinder
GOGOATC Pneumatic swing clamp cylinder
GOGOATC Pneumatic swing clamp cylinder
GOGOATC Pneumatic swing clamp cylinder
GOGOATC Pneumatic swing clamp cylinder
GOGOATC Pneumatic swing clamp cylinder

GOGOATC Pneumatic swing clamp cylinder

FOB Reference Price: Get Latest Price
≥1 Pieces
US $10
Free Inquiry
Customized Request
Contact us For product pricing, customization, or other inquiries:
Contact Us
  • Product Details
  • {{item.text}}

Quick Details

Fluid:
Air
Operating Temperature:
0~60°C
Thread:
BSP
Port:
M5 M6 1/8" 1/4" 3/8"
Working pressure:
0-10bar
Ensured Pressure Resistance:
15bar
Sealing materials:
NBR
For:
pneumatic swing clamp cylinder
Body material:
Aluminum ,Steel
Can be customized:
yes

Quick Details

Weight (KG):
1
Place of Origin:
Zhejiang, China
Brand Name:
pneumatic swing clamp cylinder
Fluid:
Air
Operating Temperature:
0~60°C
Thread:
BSP
Port:
M5 M6 1/8" 1/4" 3/8"
Working pressure:
0-10bar
Ensured Pressure Resistance:
15bar
Sealing materials:
NBR
For:
pneumatic swing clamp cylinder
Body material:
Aluminum ,Steel
Can be customized:
yes

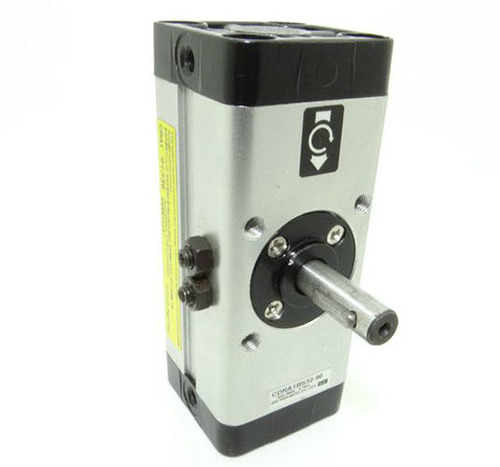

Specification: SMC type rotary actuator CRA1 Series
Bore size(mm) 30 50 63 80 100
Fluid Air
Action Double acting
Minimum operating pressure 0.1 MPa
Maximum operating pressure 1.0 MPa
Ambient and fluid temperature 0 to 60°C (No freezing)
Cushion None Adjustable air cushion at both ends
Lubrication Non-lube
Output (N·m) 1.9 9.3 17 32 74
Auto Swith(Option) Solide state switch(3-wire, 2-wire)
Port Size M5x0.8 1/8 1/4 3/8
Note 1: Output under the operating pressure at 0.5 MPa.
Component Parts Material: CRA1 Series Rotary Pneumatic Actuator
No. Description Material Note
1 Body Aluminum alloy Hard anodized
2 Cover Aluminum alloy Hard anodized
3 Piston Aluminum alloy Chromated
4 Shaft Chrome molybdenum steel -
5 Rack Carbon steel -
6 Piston seal NBR -
1: Various style for each products and completely series pneumatic products for you to choose from.
2: Large stock for fast shipping.
3: High quality with competitive price
4: Sample order & small quantity order is ok
5:Customize according to your special demand.
6: Provide free products information.
7. Reliable quality assured and active after-sell service

Feel free to contact us at anytime if you have any problems or questions on your purchase. We will resolve any problems such as damaged, not as described, missing parts, and lost items. All emails will be replied within 24 hours except Saturday. & Sunday and Chinese holidays. If you have any other requirements or questions, welcome to visit our website, or just contact with us directly. Thank you!
