Quick Details
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Perfectlaser
-
Dimension(L*W*H):
-
2690*1990*1080MM
-
Weight (KG):
-
200 KG
-
Machine name:
-
large vision laser cutting machine for fabric digital printing
-
Laser Power:
-
100W(Standard) 60W/80W/130W/150W/180W(Optional)
-
Working Area:
-
1400*1000MM
-
Max Cutting Speed:
-
0-10000mm/min
-
Max Engraving Speed:
-
1-60000mm/min
-
Cutting Platform:
-
Honeycomb or Flat Stripe
-
Voltage:
-
220V, 50HZ/60HZ
-
USB Interface:
-
Yes
-
Delivery:
-
5-7 Working Days by sea or air
-
Certification:
-
ce, ISO
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Video technical support, Online support, Field maintenance and repair service
-
Local Service Location:
-
None
-
Showroom Location:
-
None
-
Marketing Type:
-
New Product 2020
Quick Details
-
Engraving Area:
-
1400*1000mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
0-60000mm/min
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Perfectlaser
-
Dimension(L*W*H):
-
2690*1990*1080MM
-
Weight (KG):
-
200 KG
-
Machine name:
-
large vision laser cutting machine for fabric digital printing
-
Laser Power:
-
100W(Standard) 60W/80W/130W/150W/180W(Optional)
-
Working Area:
-
1400*1000MM
-
Max Cutting Speed:
-
0-10000mm/min
-
Max Engraving Speed:
-
1-60000mm/min
-
Cutting Platform:
-
Honeycomb or Flat Stripe
-
Voltage:
-
220V, 50HZ/60HZ
-
USB Interface:
-
Yes
-
Delivery:
-
5-7 Working Days by sea or air
-
Certification:
-
ce, ISO
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Video technical support, Online support, Field maintenance and repair service
-
Local Service Location:
-
None
-
Showroom Location:
-
None
-
Marketing Type:
-
New Product 2020
Product Description

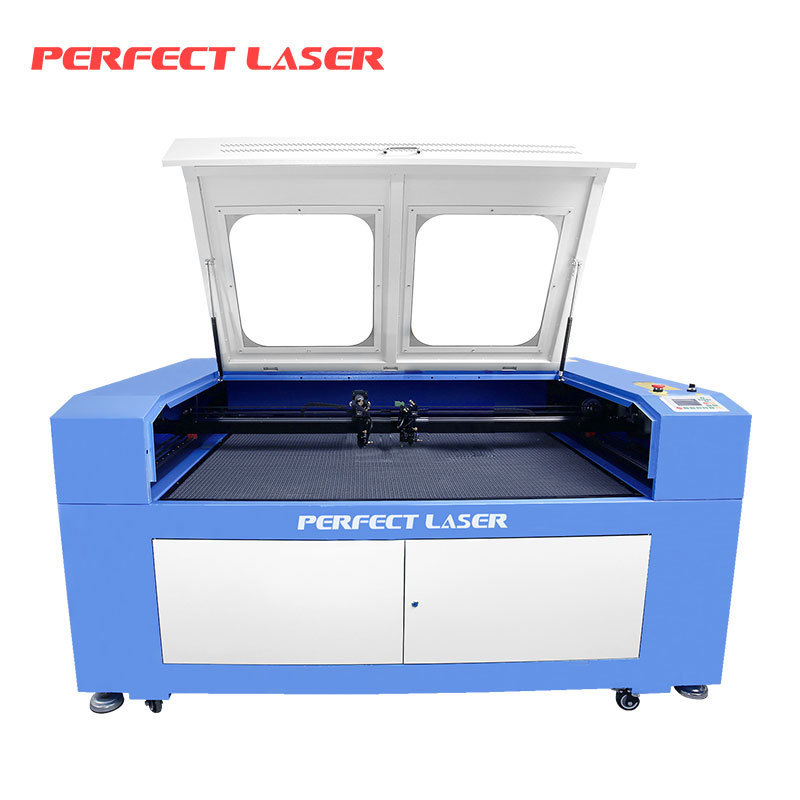

large vision laser cutting machine for fabric digital printing
(Model: PEDK-140100II)
Advantages of Laser Engraving & Cutting Machine
Technicial Data
|
SPECIFICATIONS FOR CO2 ENGRAVEING MACHINE
|
|
|
|
|||
|
Laser Type
|
Hermetic and detached CO2 laser tube
|
|
|
|||
|
Model
|
PEDK-140100II
|
|
|
|||
|
Laser Power
|
100W(Standard) 60W/80W/130W/150W/180W(Optional)
|
|
|
|||
|
Engraving Area
|
1400*1000mm
|
|
|
|||
|
Engraving Speed
|
1-60000mm/min
|
|
|
|||
|
Cutting Speed
|
1-10000mm/min
|
|
|
|||
|
Repeating Location Accuracy
|
± 0.0125mm
|
|
|
|||
|
Laser Power Controlling
|
1-100% Manual Adjustment and Software Controlling
|
|
|
|||
|
Voltage
|
220V(±10%) 50Hz
|
|
|
|||
|
Controling System
|
Original Perfect Laser Engraving & Cutting Software
|
|
|
|||
|
Supporting Graphics Formats
|
BMP, HPGL, JPEG, GIF, TIFF, PCX, TAG, CDR, DWG, DXF Compatible HPG Order To Support DXF, WMF, BMP, DXT
|
|
|
|||
|
Cooling Mode
|
CNC Professional Control System
|
|
|
|||
|
Cutting Platform
|
Professional Thickening Strip or Honeycomb Work Table
|
|
|
|||
|
Power Control Mode
|
Laser Energy Combining Movement Control System
|
|
|
|||
|
Control Software
|
Original Perfect Laser Engraving & Cutting Software
|
|
|
|||

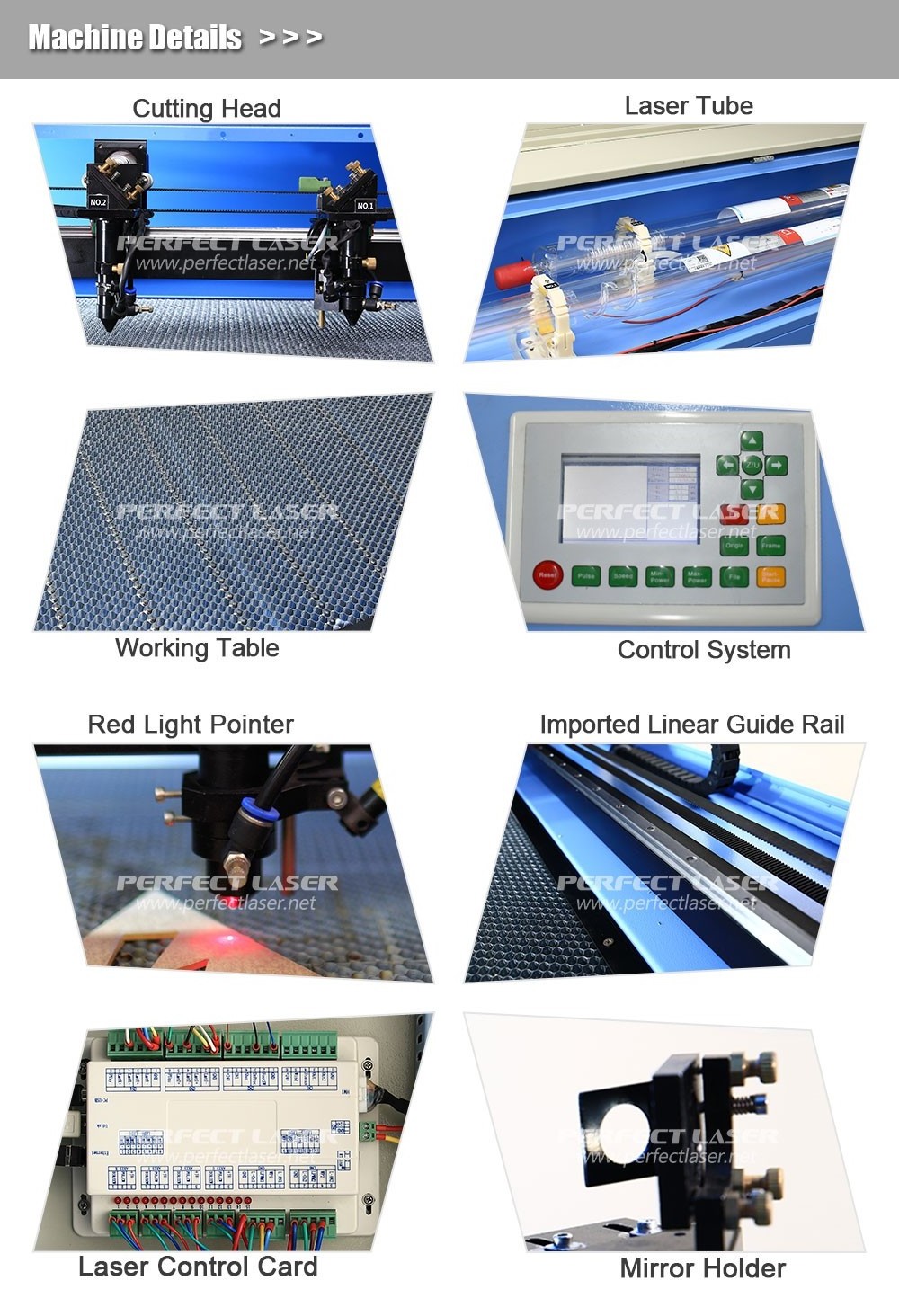

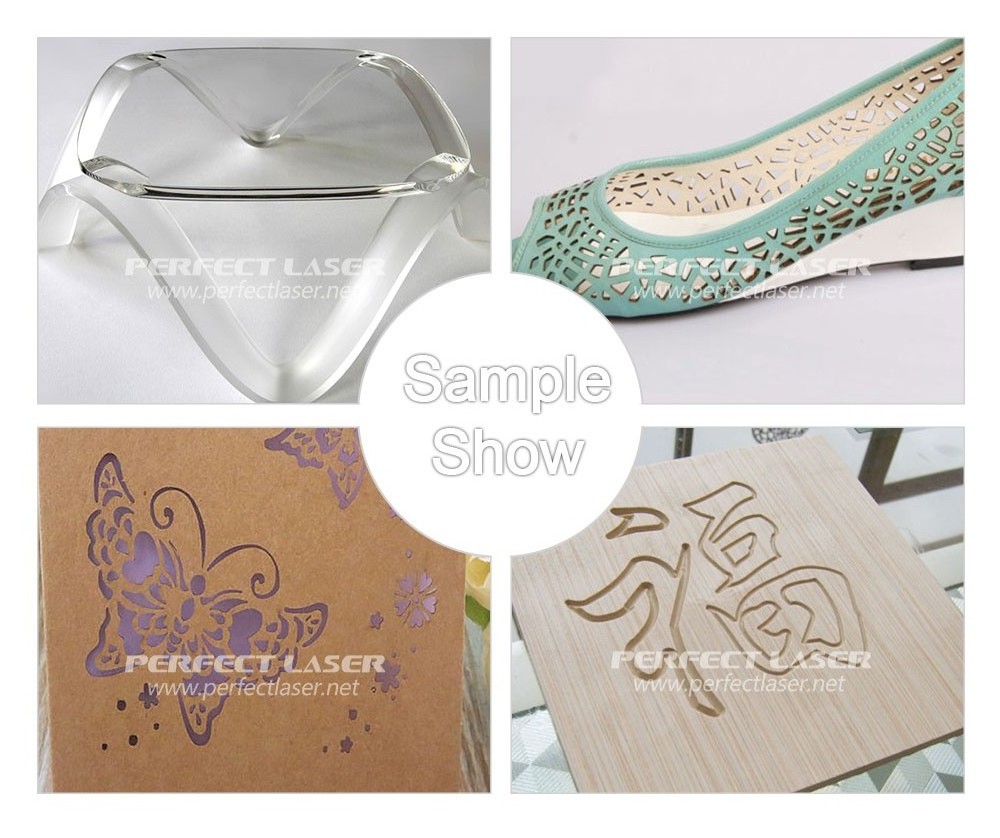

Samples & Detailes
Application
|
Material
|
Engraving
|
Cutting
|
|
Acrylic
|
√
|
√
|
|
MDF
|
√
|
√
|
|
Wood
|
√
|
√
|
|
PVC
|
√
|
√
|
|
Double Color Board
|
√
|
√
|
|
Rubber
|
√
|
√
|
|
Leather, Fabric
|
√
|
√
|
|
Cloth
|
√
|
√
|
|
Paper
|
√
|
√
|
|
Stone
|
√
|
√
|
|
Marble
|
√
|
√
|
|
Granite
|
√
|
√
|
|
Stainless steel
|
√
|
√
|
|
Carbon steel
|
√
|
√
|
Packing & Delivery
|
Packaging
|
|
|
|
|||
|
Packaging Details
|
1. We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
2. Air-Worthy Packing or Sea Packing which comply with international standard. |
|
|
|||
