EPA Approved!!! POWERGEN Air Cooled Electric Start 186F Single Cylinder Diesel Engine 10HP
EPA Approved!!! POWERGEN Air Cooled Electric Start 186F Single Cylinder Diesel Engine 10HP
EPA Approved!!! POWERGEN Air Cooled Electric Start 186F Single Cylinder Diesel Engine 10HP
EPA Approved!!! POWERGEN Air Cooled Electric Start 186F Single Cylinder Diesel Engine 10HP
EPA Approved!!! POWERGEN Air Cooled Electric Start 186F Single Cylinder Diesel Engine 10HP
EPA Approved!!! POWERGEN Air Cooled Electric Start 186F Single Cylinder Diesel Engine 10HP
EPA Approved!!! POWERGEN Air Cooled Electric Start 186F Single Cylinder Diesel Engine 10HP
EPA Approved!!! POWERGEN Air Cooled Electric Start 186F Single Cylinder Diesel Engine 10HP

EPA Approved!!! POWERGEN Air Cooled Electric Start 186F Single Cylinder Diesel Engine 10HP

FOB Reference Price: Get Latest Price
≥1 Pieces
US $185
Free Inquiry
Customized Request
Contact us For product pricing, customization, or other inquiries:
Contact Us
  • Product Details
  • {{item.text}}

Quick Details

Dimension(L*W*H):
417*441*494
Weight:
48kg
Warranty:
1 year
Certification:
EPA,CE,ISO
Advantage:
Low Fuel Consumption

Quick Details

Place of Origin:
Fujian, China
Brand Name:
POWERGEN
Model Number:
BD186F(E)
Dimension(L*W*H):
417*441*494
Weight:
48kg
Warranty:
1 year
Certification:
EPA,CE,ISO
Advantage:
Low Fuel Consumption
Product Description

Product Application

Specifications of Diesel Engine 10HP
Model No.
BD186FA(E)
Engine Type
Air-cooled, 4-stroke, Single Cylinder, Direct Injection
Bore x Stroke (mm)
86x72
Displacement (cc)
418
Compression Ratio
19:1
Peak Power (HP/RPM)
10/3600
Rotation (View from Flywheel)
Clockwise
Fuel Type
0#, -10# diesel
Fuel Tank Capacity (Liter)
5.5
Fuel Consumption (g/kW.H)
320
Lub. oil Type
SAE10W30(Above CD grade)
Lub Oil Capacity (Liter)
1.65
Starting System
Recoil Start, Electric Start
Dimensions (LxWxH)mm
417 x 441 x 494
Net weight (Kgs)
Recoil start: 48Kg ; With electric starter: 53Kg

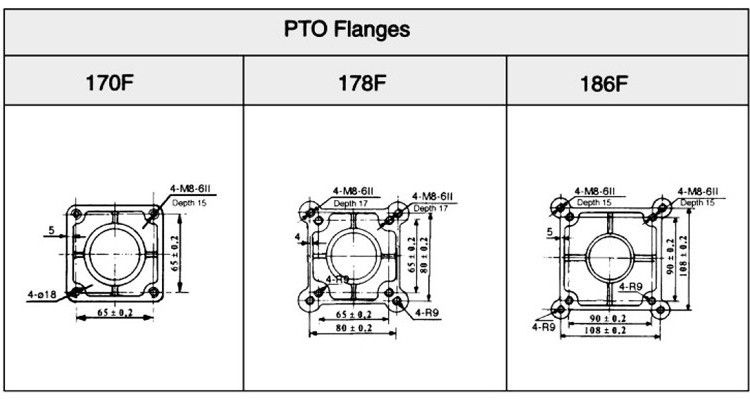

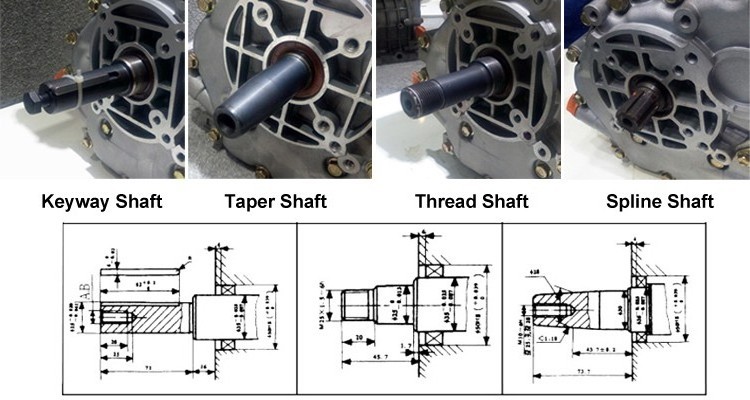

Diagram & Shaft

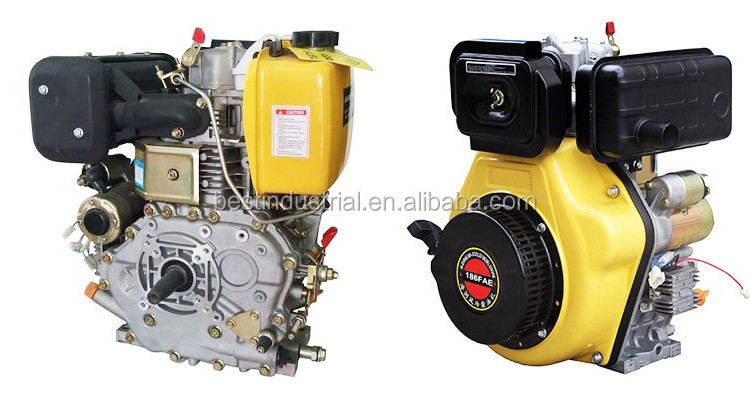

Complete Engine
Applications

Diesel Generator 5KW

Water Pump 3 inch or 4 inch

Construction Equipments

Packing
Packaging
Size (mm)
530 (L) * 480 (W) * 560 (H)
Gross Weight
55Kg (with Electric Start)



Packaging
Details


1) Inner Packaging: Polybag & Foam
2) Outer Packaging: Carton
3) Wrapping tape
Assembly Line
Certifications
Our Service

Pre-Sales Service

After-Sales Service
