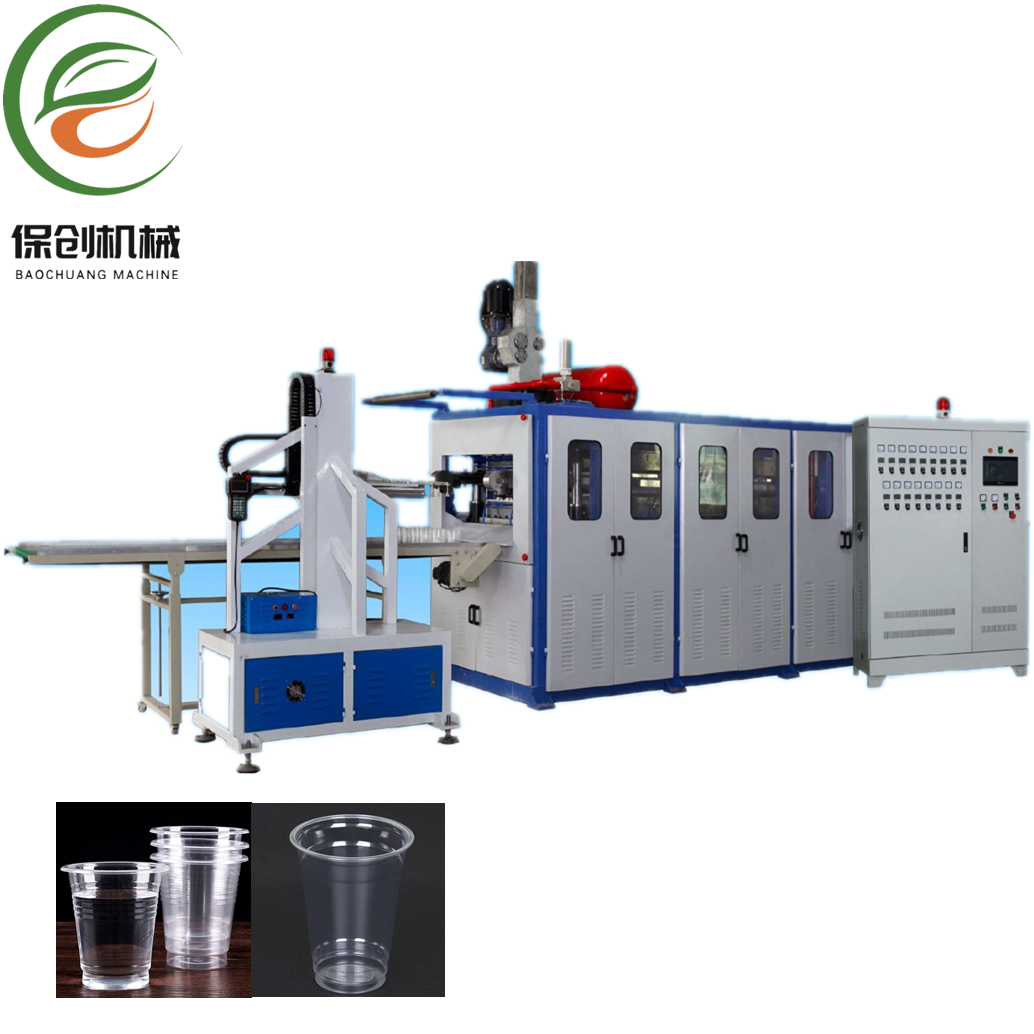

BC Fully Automatic cup making Machine adopts hydraulic pressure and air pressure technique.It has below features: working firmly,low noisy,intensively locking mold,high output capacity etc.It is composed by main forming machine, feeding part, rolling scrap part and controller. Daily produce 1,000,000 pieces of plastic cups.
Contact us For product pricing, customization, or other inquiries:
Contact Us
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Production Speed(Cycles/min):
-
20-30
-
Air Pressure(MPa):
-
0.7 MPa
-
Sheet Thickness(mm):
-
0.2 - 2.5 mm
-
Heating Power (kW):
-
65 kW
-
Air Comsumption(L/min):
-
3000 L/min
-
Water Comsumption(L/min):
-
8 L/min
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Baochuang
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
5000mm*1600mm*2300mm
-
Weight (T):
-
8 T
-
Power(KW):
-
150
-
Suitable material:
-
PP PS PET PVC, Corn Starch
-
Application:
-
Cup, Bowl, Plate,food box
-
Material:
-
PP, PS, Starch, Rice Husk, Bamboo
Quick Details
-
Max.Forming Height(mm):
-
190 mm
-
Forming Width (mm):
-
750 mm
-
Forming Length (mm):
-
450 mm
-
Production Speed(Cycles/min):
-
20-30
-
Air Pressure(MPa):
-
0.7 MPa
-
Sheet Thickness(mm):
-
0.2 - 2.5 mm
-
Heating Power (kW):
-
65 kW
-
Air Comsumption(L/min):
-
3000 L/min
-
Water Comsumption(L/min):
-
8 L/min
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Baochuang
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
5000mm*1600mm*2300mm
-
Weight (T):
-
8 T
-
Power(KW):
-
150
-
Suitable material:
-
PP PS PET PVC, Corn Starch
-
Application:
-
Cup, Bowl, Plate,food box
-
Material:
-
PP, PS, Starch, Rice Husk, Bamboo
Machinery Introduction
The Advantages of Machine
|
Machine Parameters
|
|
|
|
|||
|
Voltage
|
380V/3P/50Hz(Adjustable)
|
Air Consumption
|
2200L/min
|
|||
|
Material
|
PP,PS,PET,Starch,Rice Husk, Calcium Etc
|
Molding speed
|
≦30 Time/min
|
|||
|
Drive Mode
|
Rear Cam, Air Compressor
|
Working pressure
|
0.6～0.8Mpa
|
|||
|
Sheet Size
|
L＝750mm(Adjustable)
|
Mold Installed
|
800mm*530m
|
|||
|
Air Compressor
|
2200～3000L/min
|
Forming Area
|
750mm*450mm
|
|||
|
PLC Encoder
|
Omron
|
Forming Depth
|
≦190mm
|
|||
|
Machine Size
|
5000mm*1600mm*2300mm
|
Machine Weight
|
8T
|
|||
|
Rated Powder
|
150kw
|
Actual Power
|
60kw
|
|||
Application
