Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Yaoke
-
Model Number:
-
YK-O501
-
Focal Length:
-
spectroradiometer spectromet
-
Wavelength Range:
-
200nm~1050nm
-
Product name:
-

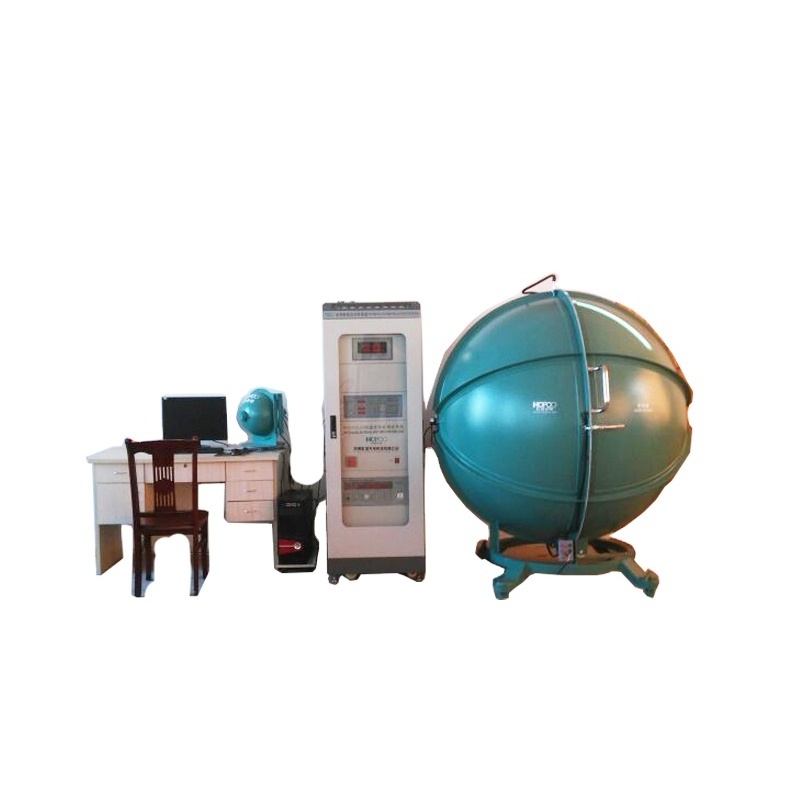

High precision integrating sphere spectroradiometer
-
Standard::
-
CIE, EN and LM-79 clause 9.1
-
Colorimetric::
-
Chromaticity coordinates, CCT, CRI, etc.
-
Photometric::
-
Luminous Flux, Luminous Efficient
-
Electrical::
-
Voltage, Current, Power, Power Factor
-
Range of wavelength:
-
200nm-1050nm
-
Accuracy of wavelength::
-
±0.5nm
-
Photometric linear::
-
±0.5%
-
Stray light::
-
<0.015%(600nm) and <0.03%(435nm)
-
Accuracy::
-
Class 1
Quick Details
-
Warranty:
-
3 years
-
Size:
-
57*53*28cm
-
Weight:
-
20kg
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Yaoke
-
Model Number:
-
YK-O501
-
Focal Length:
-
spectroradiometer spectromet
-
Wavelength Range:
-
200nm~1050nm
-
Product name:
-
High precision integrating sphere spectroradiometer
-
Standard::
-
CIE, EN and LM-79 clause 9.1
-
Colorimetric::
-
Chromaticity coordinates, CCT, CRI, etc.
-
Photometric::
-
Luminous Flux, Luminous Efficient
-
Electrical::
-
Voltage, Current, Power, Power Factor
-
Range of wavelength:
-
200nm-1050nm
-
Accuracy of wavelength::
-
±0.5nm
-
Photometric linear::
-
±0.5%
-
Stray light::
-
<0.015%(600nm) and <0.03%(435nm)
-
Accuracy::
-
Class 1
Product Description
| Range of wavelength | 20 0nm-1050nm |
| Accuracy of chromaticity coordinates | ±0.0015(x, y) |
| Range of dominant wavelength (λD) | 380nm-780nm |
| Accuracy | ±0.3nm |
| Range of correlated color temperature (CCT) | 1000K-100000K |
| Accuracy | ±3% |
| Range of luminous flux (ΦV) | 10mlm-20000.0lm |
| Range of luminous intensity | 10mcd-3000cd |
| Accuracy | class1 |
| Forward current (I F ) | 0.01mA-5000.0mA |
| Accuracy | ±0.5% |
| Forward voltage (V F ) | 0.01V-40.0V |
| Accuracy | ±0.5% |
| Reverse current ( I R ) | 0.01μA-200.00μA |
| Accuracy | ±0.5% |
| Reverse voltage (V R ) | 0.01V-30.0V |
| Accuracy | ±0.5% |
