Mustard/almond/sesame/seeds vibrate sieving grading machine
Mustard/almond/sesame/seeds vibrate sieving grading machine
Mustard/almond/sesame/seeds vibrate sieving grading machine
Mustard/almond/sesame/seeds vibrate sieving grading machine
Mustard/almond/sesame/seeds vibrate sieving grading machine
Mustard/almond/sesame/seeds vibrate sieving grading machine
Mustard/almond/sesame/seeds vibrate sieving grading machine
Mustard/almond/sesame/seeds vibrate sieving grading machine

Mustard/almond/sesame/seeds vibrate sieving grading machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $1600
≥10 Sets
US $1500
Free Inquiry
Customized Request
Contact us For product pricing, customization, or other inquiries:
Contact Us
  • Product Details
  • {{item.text}}

Quick Details

Commodity:
vibrate sieving grading machine
Diameter:
800mm
Mesh size:
2-500mesh or 0.025mm-20mm
Layer:
1-5 layers available
Material:
Stainless Steel 304/316L
Capacity:
less than 50t/h
Function:
Screening/separating/cleaning/grading
vibration motor:
50/60HZ 3phase
customizing:
ultrasonic vibrating screen
Certification:
CE ISO SGS

Quick Details

Type:
Circular
Place of Origin:
Henan, China
After-sales Service Provided:
Free spare parts, Online support, Video technical support
Commodity:
vibrate sieving grading machine
Diameter:
800mm
Mesh size:
2-500mesh or 0.025mm-20mm
Layer:
1-5 layers available
Material:
Stainless Steel 304/316L
Capacity:
less than 50t/h
Function:
Screening/separating/cleaning/grading
vibration motor:
50/60HZ 3phase
customizing:
ultrasonic vibrating screen
Certification:
CE ISO SGS
Product Description
Mustard/almond/sesame/seeds vibrate sieving grading machine

Main Features

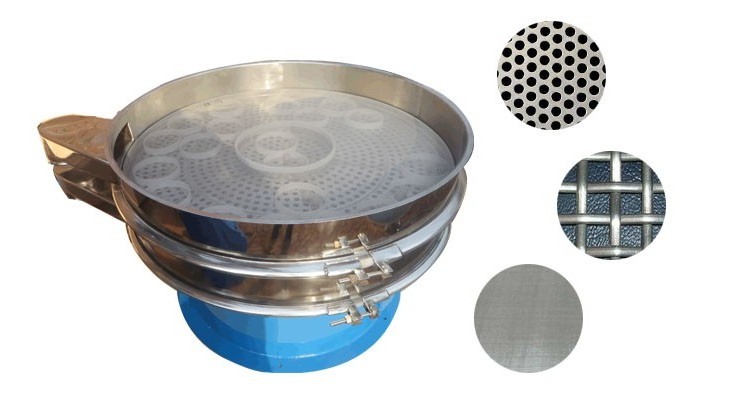

Detailed Images
1. Perforated plate
2. Woven wire mesh-big hole
3. Woven wire mesh-small hole
Vibrating sieve machine specifications table
Model
XZS500
XZS600
XZS800
XZS1000
XZS1200
XZS1500
XZS1800
XZS2000
Diameter (mm)
500
600
800
1000
1200
1500
1800
2000
Layer
1 layer, 2 layers, 3 layes, 4 layers, 5 layers available
Mesh size(mm)
600mesh-2mesh or 0.025mm-20mm
Rated speed(rpm)
1460rpm
Power (kw)
0.25
0.25
0.55
0.75
1.1
1.5
2.2
2.2
Sieve structure
Perforated plate, screen frame with bounce balls, screen frame without bounce balls.
material
All stainless steel 304 or 316, or contacting part stainless steel 304 or carbon steel Q235A material
Voltage
110V/220V/240V380V/450V or others,
50HZ or 60HZ
Single phase or three phase

Showcase

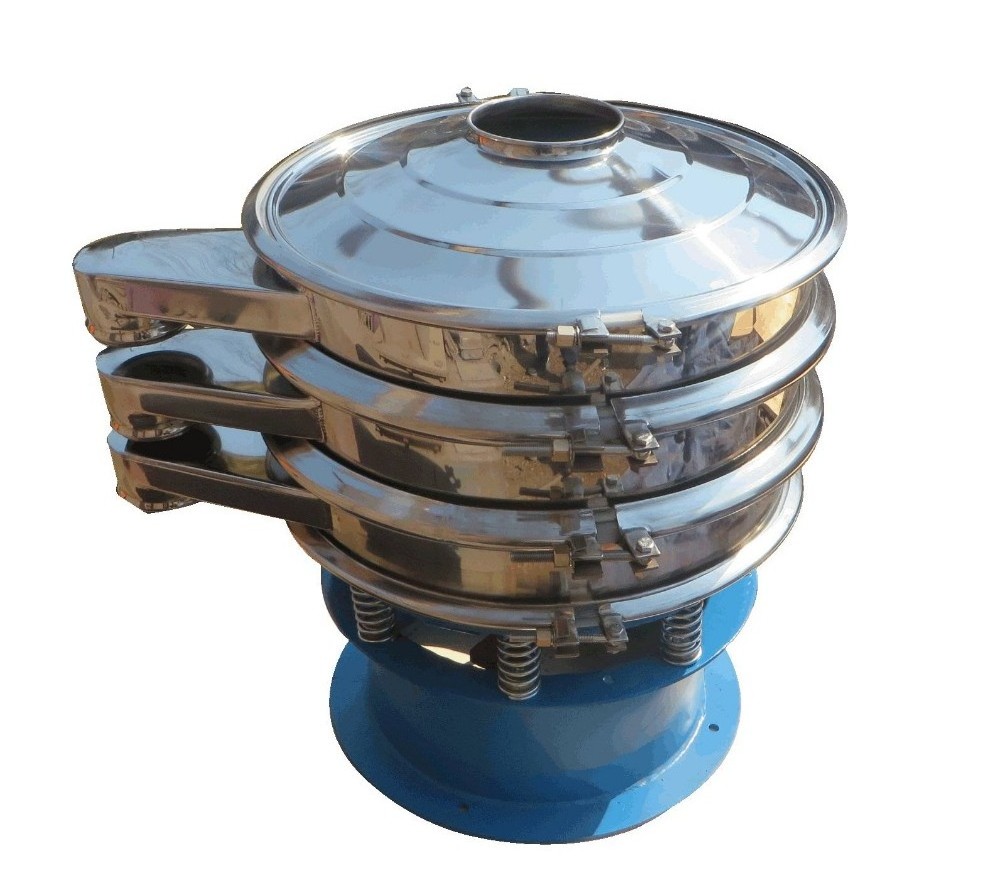

XZS600-1 Rotary vibrating sieve machine
Diameter
600mm
Layer
1 layer with 2 discharging outlets
Mesh size
50mesh


Application
Fields
1) Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.
2) Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.
3) Chemical industry: resin pigment, medicine, grease, paint, palette, etc.
XZS1500-4 circular vibrating screen machine
Diameter
1500mm
Layer
4 layer with 5 discharging outlets
Mesh size
0.1mm, 0.5mm, 3mm, 6mm



Application
Fields
1) Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.
2) Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder, etc.
3) Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry, etc.
Customizing service
