Quick Details
-
Model Number:
-
UKF 1P 63A
-
Max. Current:
-
63A
-
Type:
-
Disconnect Switch
-
Certificate:
-
CCC
-
Color:
-
White
-
Rated voltage:
-
500V
-
Pole:
-
1P/2P/3P/4P
-
Rated current:
-
20A-63A
-
Operation type:
-
Manual Operation
-
Function:
-
ON-OFF
-
Material:
-
Plastic
-
Warranty:
-
12 Months
Quick Details
-
Max. Voltage:
-
500V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Worldsunlight
-
Model Number:
-
UKF 1P 63A
-
Max. Current:
-
63A
-
Type:
-
Disconnect Switch
-
Certificate:
-
CCC
-
Color:
-
White
-
Rated voltage:
-
500V
-
Pole:
-
1P/2P/3P/4P
-
Rated current:
-
20A-63A
-
Operation type:
-
Manual Operation
-
Function:
-
ON-OFF
-
Material:
-
Plastic
-
Warranty:
-
12 Months
Product Description
Application

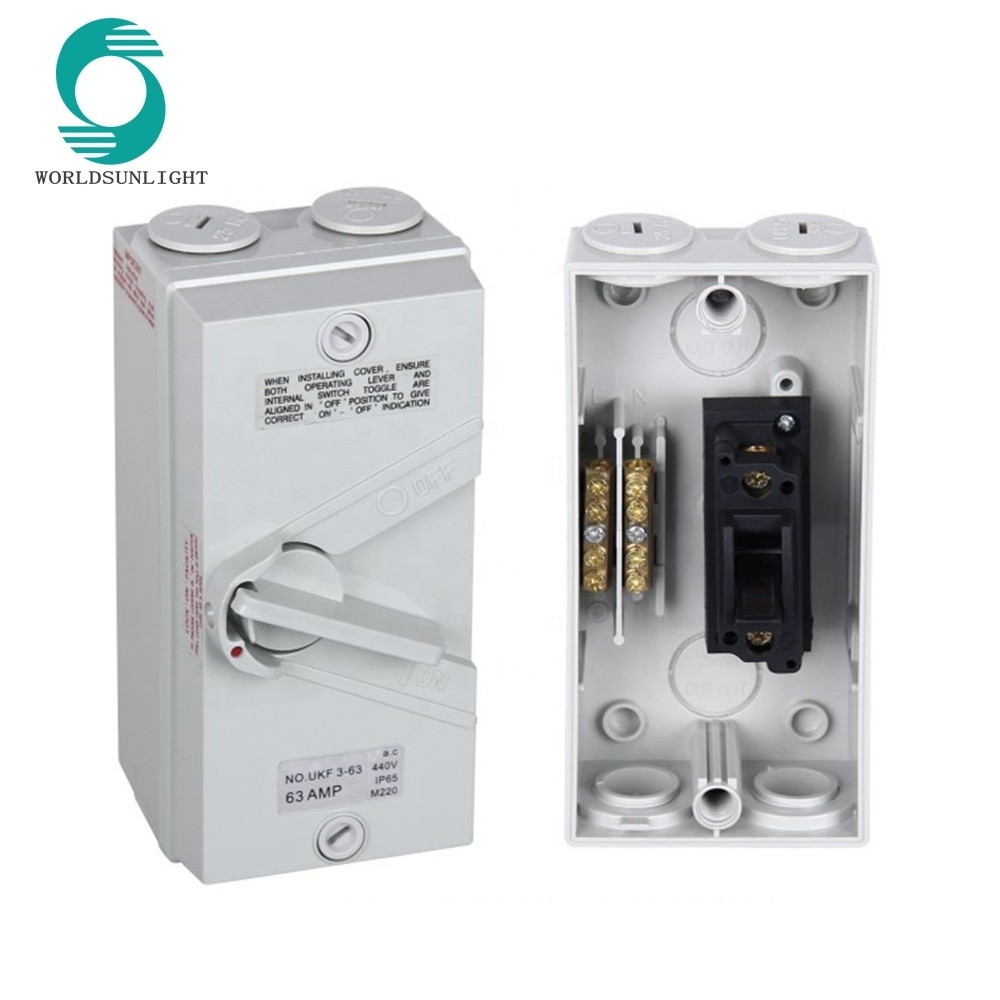

* The UKF Series of Weatherprotected Isolating Switches is a robust range of switches suitable for virtually any external
application.
* Included in the range are single, double and triple pole switches from 20 to 80 Amps.
* The base mounted mechanism provides for easier thrmnation and more wiring room.

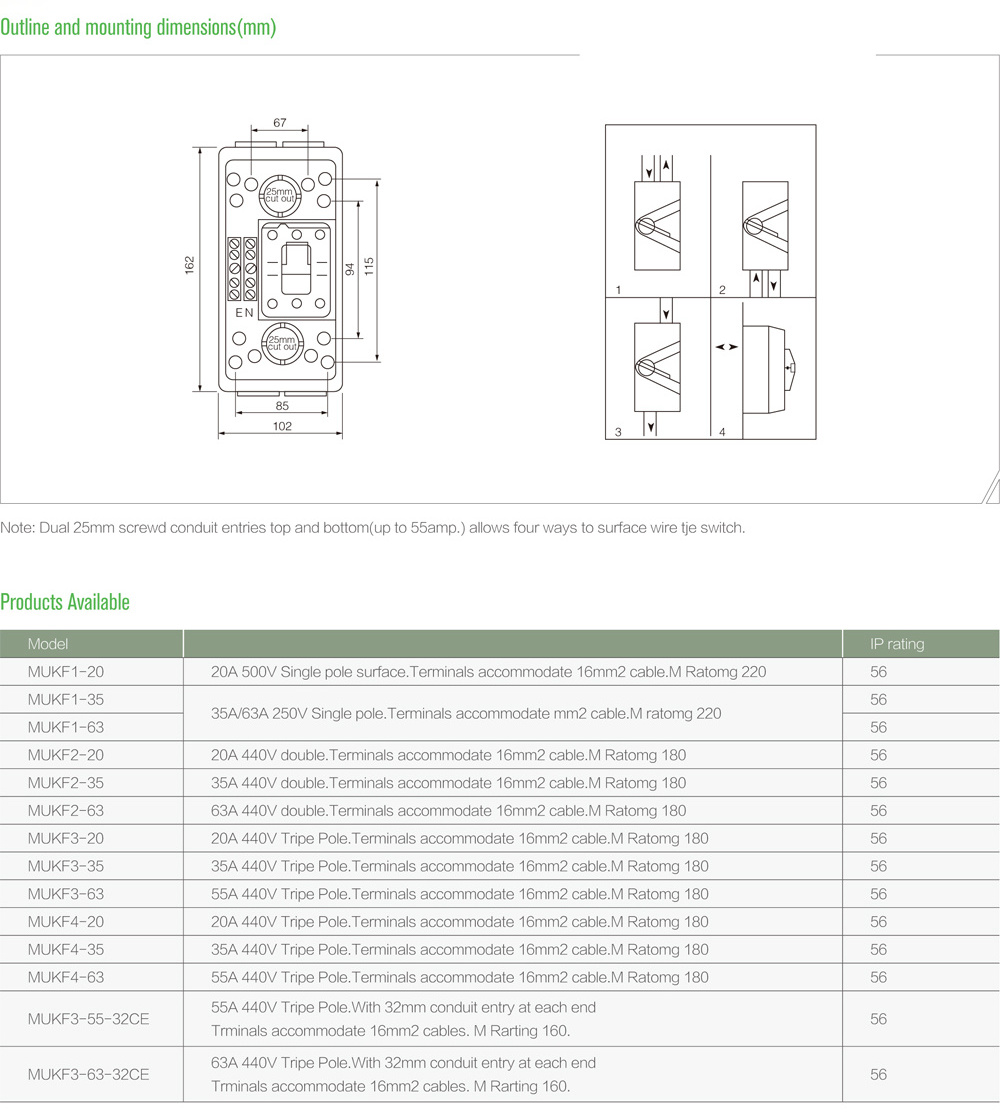

* Switch dimensions are 165mm x 82mm with an voerall height of 85mm.
application.
* Included in the range are single, double and triple pole switches from 20 to 80 Amps.
* The base mounted mechanism provides for easier thrmnation and more wiring room.
* Switch dimensions are 165mm x 82mm with an voerall height of 85mm.
Features
* Switching ON & OFF on-load
* Padlockable handle with 7mm hole in OFF position Dual 25mm threaded conduit entries on top and bottom IP66 rating prevents from
heavy dust and water ingress.
* Padlockable handle with 7mm hole in OFF position Dual 25mm threaded conduit entries on top and bottom IP66 rating prevents from
heavy dust and water ingress.
Shipment
AC ISOLATOR Delivery Time:
Inner box:22.5*9*8.5cm,1.48KG
AC ISOLATOR Delivery Time:
AC ISOLATOR Shipping:
