Quick Details
-
Weight (KG):
-
350
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DESSION
-
Dimension(L*W*H):
-
640*700*1580
-
Main Function:
-
Filling Sealing Packing
-
Sealing type:
-
Back Sealing pillow bag
-
Optional Devices:
-
Punching Device
-
Machine material:
-
Stanless Steel
-
Machine type:
-

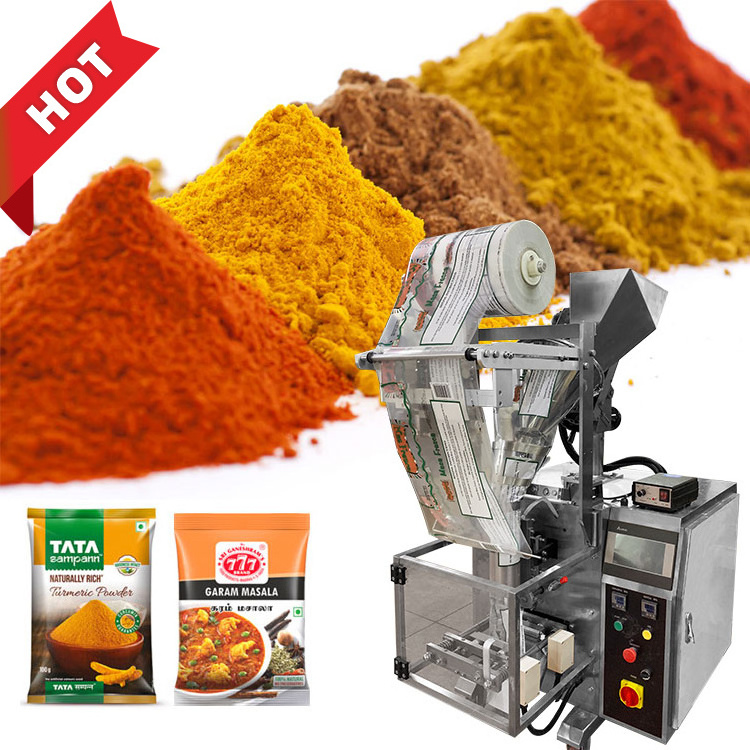

Vertical Automatic Packing Machine
-
Packing material:
-
Laminated Film
-
Feature:
-
Easy Opperation
-
Advantage:
-
Long Life
-
Control system:
-
PLC+English Screen
-
Suitable for:
-
cereal powder packing,curry masala milk powder
Quick Details
-
Function:
-
FILLING, Sealing
-
Packaging Type:
-
Bags, Pouch
-
Packaging Material:
-
Plastic
-
Weight (KG):
-
350
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DESSION
-
Dimension(L*W*H):
-
640*700*1580
-
Main Function:
-
Filling Sealing Packing
-
Sealing type:
-
Back Sealing pillow bag
-
Optional Devices:
-
Punching Device
-
Machine material:
-
Stanless Steel
-
Machine type:
-
Vertical Automatic Packing Machine
-
Packing material:
-
Laminated Film
-
Feature:
-
Easy Opperation
-
Advantage:
-
Long Life
-
Control system:
-
PLC+English Screen
-
Suitable for:
-
cereal powder packing,curry masala milk powder
* Available from stock, quick delivery in 7 days
Product Description
|

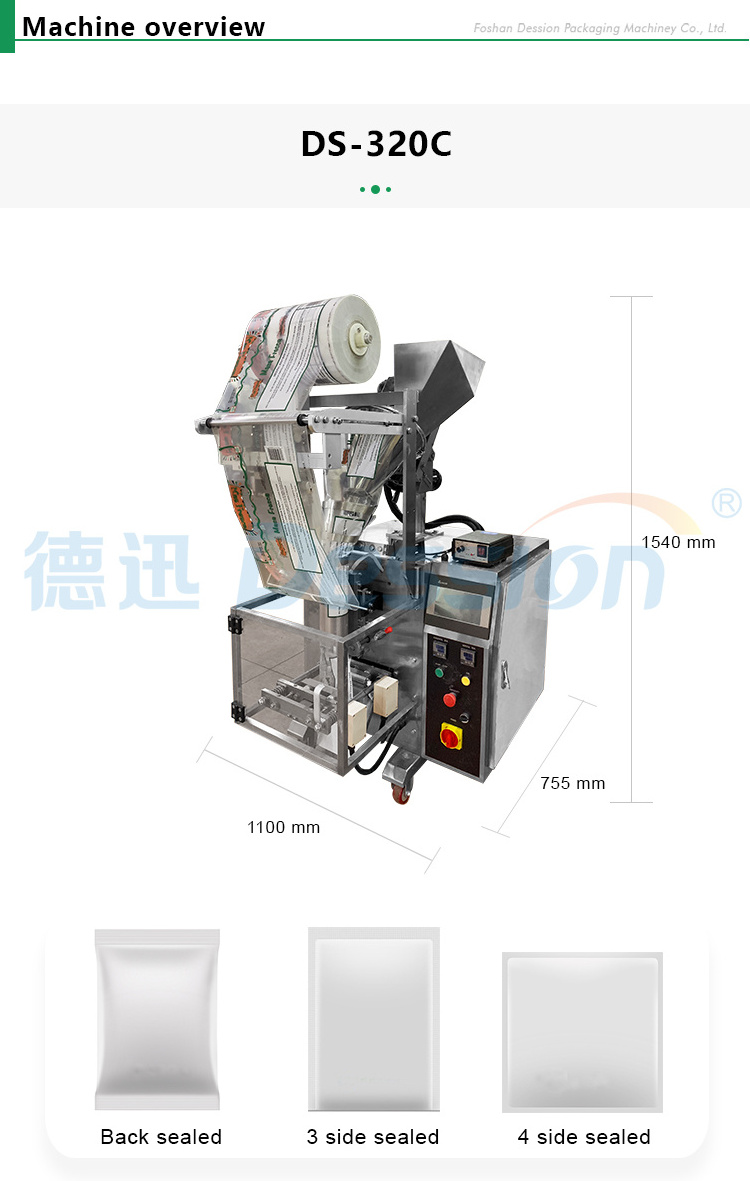

Model NO.
|
DS-320C
|
|
Measuring
|
Screw metering
|
|
Bag Shape
|
Back Sealing / 3 sides sealing/4 sides sealing
|
|
Packing Speed
|
10~60 bags/min
|
|
Roll Width
|
Max.320 mm
|
|
Bag Length
|
40~200 mm
|
|
Bag Width
|
50~150 mm
|
|
Machine Size
|
L)1100*W)755*H)1540mm
|
|
Machine Weight
|
300kg
|
|
Power
|
220V,50HZ,1.2KVA
|
Details Images
1. The section where the material contact is stainless steel as the body of machine is optional for complete or partial stainless steel and all out equipments have passed the CE Standard.
2. Optional English or other languages screen display, easy and simple operation.
3. High-sensitivity photoelectric color tracing and digital input of cutting position get more accuracy.
2. Optional English or other languages screen display, easy and simple operation.
3. High-sensitivity photoelectric color tracing and digital input of cutting position get more accuracy.
4. Packaging speed and length of bags can be set to some extent without further adjustment and parts changing packaging speed and length of bags can be set to some extent without further adjustment and parts changing.
5. Bag-making, filling, sealing, cutting, counting can be achieved automatically and straightly.
6. Bag-making equipment can be changed according to specific requirement of customers and products.
Depending on your needs, you can choose to replace or add the following configuration. For example, 3 sides sealing device, 4 sides sealing device, linking bag device, gas-filled device, easy tearing device and hole device.
