Quick Details
-
Ejector Force(kN):
-
13 kN
-
Theoretical Shot Volume(cm³):
-
34 cm³
-
Injection Rate (g/s):
-
28 g/s
-
Machine Type:
-
Mechanical
-
Injection Weight (g):
-
128 g
-
Screw Speed (rpm):
-
0 - 220 rpm
-
Screw diameter (mm):
-
34 mm
-
Screw L/D Ratio:
-
22
-
Distance between Tie Bars:
-
450*250
-
Weight (KG):
-
600 kg
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
330 mm
-
Model Number:
-
DLB-150
-
Brand Name:
-
Plastar
-
Power (kW):
-
4 kW
-
Plastic Type:
-
Thermoplastic
-
Product name:
-
Plastic Injection Moulding Machine
-
Name:
-
Vertical Plastic Injection Molding Machine
-
Color:
-
Blue
-
Function:
-
Plstic Injection Molding Machinery
-
Injection pressure:
-
1625kgf/cm3
-
Used for:
-
Plasic Products
-
Product:
-
PP PVC ABS TPE
-
Application:
-
Inserting Plastic Products
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Mold Height(mm):
-
33 - 200 mm
-
Ejector Number:
-
Other
-
Ejector Stroke(mm):
-
28 mm
-
Ejector Force(kN):
-
13 kN
-
Theoretical Shot Volume(cm³):
-
34 cm³
-
Injection Rate (g/s):
-
28 g/s
-
Machine Type:
-
Mechanical
-
Injection Weight (g):
-
128 g
-
Screw Speed (rpm):
-
0 - 220 rpm
-
Screw diameter (mm):
-
34 mm
-
Screw L/D Ratio:
-
22
-
Distance between Tie Bars:
-
450*250
-
Weight (KG):
-
600 kg
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
330 mm
-
Model Number:
-
DLB-150
-
Brand Name:
-
Plastar
-
Power (kW):
-
4 kW
-
Plastic Type:
-
Thermoplastic
-
Product name:
-
Plastic Injection Moulding Machine
-
Name:
-
Vertical Plastic Injection Molding Machine
-
Color:
-
Blue
-
Function:
-
Plstic Injection Molding Machinery
-
Injection pressure:
-
1625kgf/cm3
-
Used for:
-
Plasic Products
-
Product:
-
PP PVC ABS TPE
-
Application:
-
Inserting Plastic Products
-
Marketing Type:
-
Ordinary Product

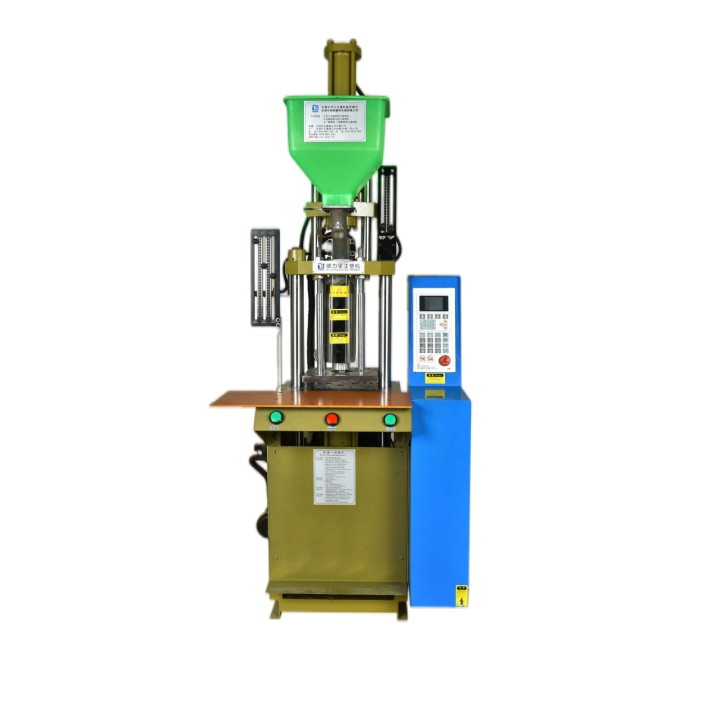

Injection Molding Machine
DLB-150
Professional Injection Molding Machine Supplier,
Service The Global Factories More Than 5000+
Service The Global Factories More Than 5000+
VIP Services
We Will Help You Choose The Most Suitable Machinery
To Win Business Opportunities
Contact us
To Win Business Opportunities
Contact us
1.Professional Engineers On-site Diagnosis
2.countries:Peru, Colombia, Ecuador
2.countries:Peru, Colombia, Ecuador
3.
Welcome To Visit Our Factory o make an Appointment
4.
Invitation Letter
5.0n-site preferential price
5.0n-site preferential price
6.
Contact UsTo Get The Latest Industry Information And Technical vices
Main Specifications
1. Machine vertical lock mold/vertical to cast, is suitable the common electric appliance plug,the electronic components and so on small
in lays to take shape.
2. 2 sections the temperature control/projects the speed/back pressure and so on not to have the section adjustment, suits components of the precise revert to take shape.
3. The fast lock mold/low pressure idling speed closes the mold, locks the mold exceptionally when then automatic tight open the mold. This special safe design, and so on can get up the protective function to the mold.
4. The stamping die fixed/top die activity type, to takes shape inlays to have the very good localization in the mold. The end product has the fluid capping to leave the installment, the end product takes out extremely facilitates easily.
5. Electric control parts/hydraulic parts adopt domestic famous brand, precision and durable operation noise is low. The clamping force is 1 5TON〜35TON, and can be controlled by single or double ratio computer.
|
Model
|
|
Unit
|
DLB-150
|
|
||
|
|
Screw Diameter
|
mm
|
22
|
26
|
||
|
|
Max. Injection Pressure
|
kgf/cm3
|
1625
|
1164
|
||
|
|
Theoretical Shot Volumn
|
cm3
|
39/1.4
|
55/1.9
|
||
|
|
Injection Rate
|
g/oz
|
28
|
39
|
||
|
|
Screw Speed
|
cm3/sec
|
0-150
|
|
||
|
|
Screw Stroke
|
mm
|
90
|
|
||
|
|
Nozzle Retraction Stroke
|
mm
|
/
|
|
||
|
|
Number of Temperature Control
|
-
|
2
|
|
||
|
|
Clamping Force
|
ton
|
15
|
|
||
|
|
Opening Force
|
ton
|
7
|
|
||
|
|
Plate Size
|
mm
|
450*250
|
|
||
|
|
Rotary Table Diamter
|
mm
|
/
|
|
||
|
|
Space Between Tie-Bar
|
mm
|
310
|
|
||
|
|
Min.Mold Thickness
|
mm
|
33
|
|
||
|
|
Opening Stroke
|
mm
|
200
|
|
||
|
|
Open Daylight
|
mm
|
233
|
|
||
|
|
Ejector Force
|
ton
|
1.3
|
|
||
|
|
Ejector Stroke
|
mm
|
28
|
|
||
|
Electrical
|
Max. Hydaulic Pressure
|
kg/cm3
|
140
|
|
||
|
|
Pump Output
|
l/min
|
23
|
|
||
|
|
Oul Tank Capacity
|
l
|
82
|
|
||
|
|
Cooling Water Consumption
|
liter/h
|
400-600
|
|
||
|
|
Electrical Power
|
kw
|
2.2
|
|
||
|
|
Barrel Heating Power
|
kw
|
1.8
|
|
||
|
|
Total Watt
|
kw
|
4
|
|
||
|
|
Machine Dimension
|
m
|
1.25*0.9*2.15
|
|
||
|
|
Machine Weight
|
kg
|
600
|
|
||
|
|
Packing Dimension
|
m
|
1.3*0.95*2.3
|
|
||
|
|
Packing Weight
|
kg
|
700
|
|
||
Compatible
A variety of mold
