Quick Details
-
Dimension(L*W*H):
-
650*470*620mm
-
Weight:
-
290, 290KG
-
Power (kW):
-
3
-
Name:
-
hydraulic hose crimper repairs and maintenance
-
Model:
-
JYC-P32
-
Color:
-
Blue
-
Crimping range:
-
6-51mm
-
Application:
-
Crimp Hose
-
Type:
-
automatic
-
Crimping force:
-
320Ton
-
SYSTEM PRESSURE:
-
31.5mpa
-
Power:
-
3KW/4KW
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JYC
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
650*470*620mm
-
Weight:
-
290, 290KG
-
Power (kW):
-
3
-
Name:
-
hydraulic hose crimper repairs and maintenance
-
Model:
-
JYC-P32
-
Color:
-
Blue
-
Crimping range:
-
6-51mm
-
Application:
-
Crimp Hose
-
Type:
-
automatic
-
Crimping force:
-
320Ton
-
SYSTEM PRESSURE:
-
31.5mpa
-
Power:
-
3KW/4KW

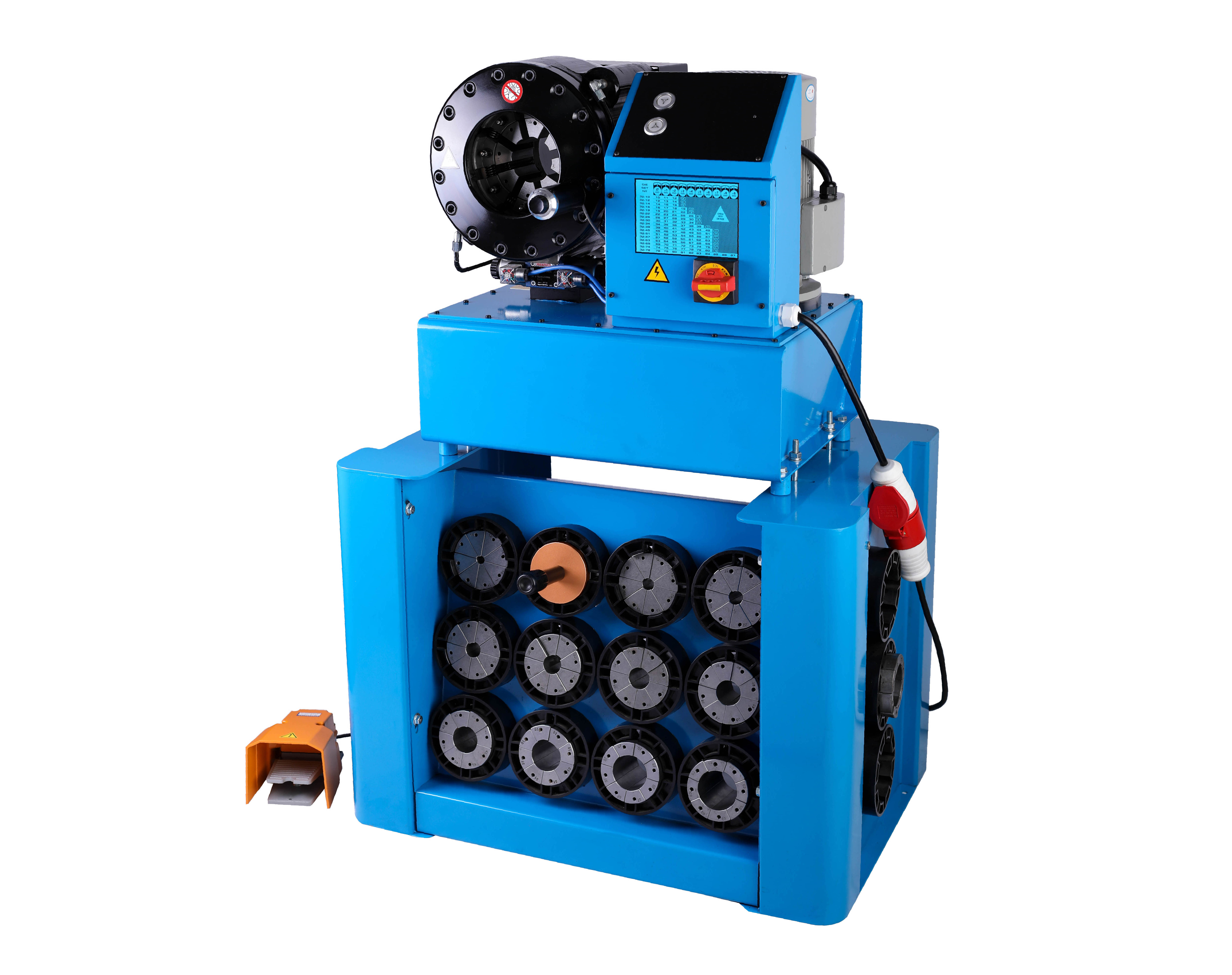

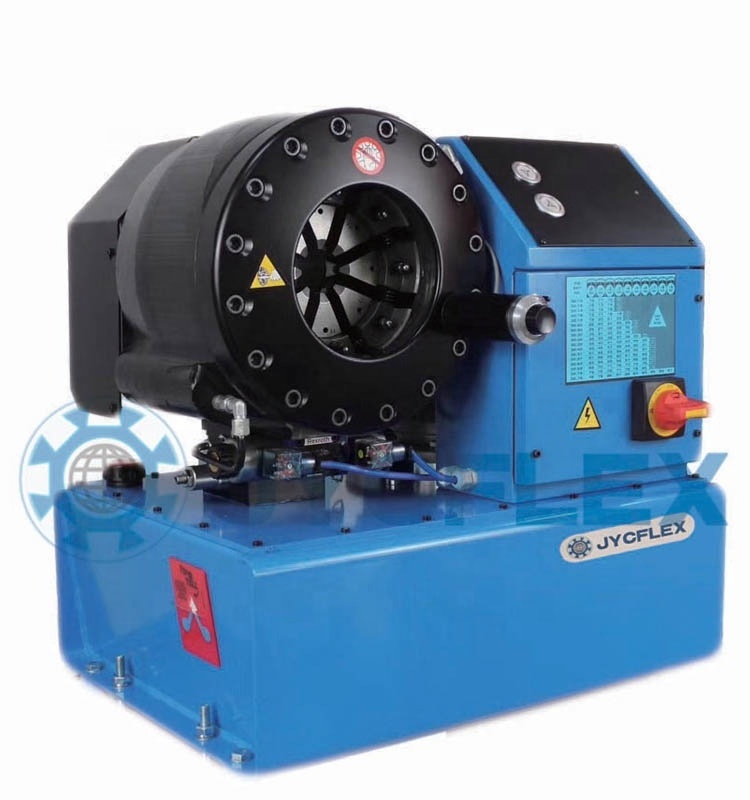

MACHINE Description
Hydraulic hose crimping machine Application
|
SPECIFICATIONS FOR HYDRAULIC HOSE CRIMPING MACHINE
|
|
|
|
|||
|
Production name
|
hose crimping machine
|
Machine model
|
JYC-P32
|
|||
|
Machine type
|
hydraulic crimping tool
|
Application
|
crimping hose
|
|||
|
Crimping range
|
6-51mm(1/4--2 inch)
|
System pressure
|
31.5Mpa
|
|||
|
Crimping force
|
3200kN
|
Operation mode
|
electrical
|
|||
|
Dies set
|
13 sets
|
Die length
|
75mm
|
|||
|
Dimension
|
650*470*620mm
|
Weight
|
290KG
|
|||
|
Voltage
|
220V/380V
|
Power
|
3KW/4KW
|
|||
|
Rated Flow
|
10ml/r
|
Prodection Class
|
IP54
|
|||
P32 Hose Crimping Machine Features
This machine features small and portable appearance, big force, low noise and easy to operate. The buckling amount can be precise adjusted through a scale. It makes the mould base division to be more even through the double inclined plane eight-flap mould seat equipped with a high accuracy guiding device.
1) Using forge steel machine head, more durabler than general steel.
2) High crimp accuracy which is within 0.01mm.
3) Equipped with a foot pedal, very convenient for free hand operate.
4) Magnetic dies (Patented), very convenient to remove and install dies.
1) Using forge steel machine head, more durabler than general steel.
2) High crimp accuracy which is within 0.01mm.
3) Equipped with a foot pedal, very convenient for free hand operate.
4) Magnetic dies (Patented), very convenient to remove and install dies.
Our enterprise built up for
16 years
! Made up of
10 years
experienced professional R & D Worker and QC persons. Our hydraulic products will be
checked in each step
, then
double checked by QC
, last packed and delivered to warehouse.Our hydraulic crimping machines get the
CE certification
. Our factory have advanced industrial production process to save expenses,and offer all our customers a
good price
to win in their market!We have the deep desire to cooperate with you, we are experienced and have the faith to make you satisfaction with our hydraulic products and service. We have customers in UK, US, Russia, Australia,UAE,Kenya,Bolivia,Philippines, etc.Email me or call me directly, we can't wait to see you!
