Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
cgy
-
Voltage:
-
380
-
Year:
-
2023
-
Power (kW):
-
37
-
Weight (KG):
-
7600 KG
-
Name:
-
open roller mill mixing machine
-
After-sales Service Provided1:
-
Engineers available to service machinery overseas
-
The material of the roll:
-
Chilled cast Iron
-
Two kind of bush:
-
Nylonbush,bearing bush
-
Weight:
-
1t-22t
-
Power:
-
1.5KW - 75 KW
-
After-sales Service Provided2:
-
Online support
-
After Warranty Service:
-
Online support
-
Certification:
-
CE ISO
-
COLOR:
-
Customers' Demand
Quick Details
-
Diameter of Roll(mm):
-
400 mm
-
Length of Roll(mm):
-
1000 mm
-
Roll Ratio(Front/Back):
-
1:1.27
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
cgy
-
Voltage:
-
380
-
Year:
-
2023
-
Power (kW):
-
37
-
Weight (KG):
-
7600 KG
-
Name:
-
open roller mill mixing machine
-
After-sales Service Provided1:
-
Engineers available to service machinery overseas
-
The material of the roll:
-
Chilled cast Iron
-
Two kind of bush:
-
Nylonbush,bearing bush
-
Weight:
-
1t-22t
-
Power:
-
1.5KW - 75 KW
-
After-sales Service Provided2:
-
Online support
-
After Warranty Service:
-
Online support
-
Certification:
-
CE ISO
-
COLOR:
-
Customers' Demand

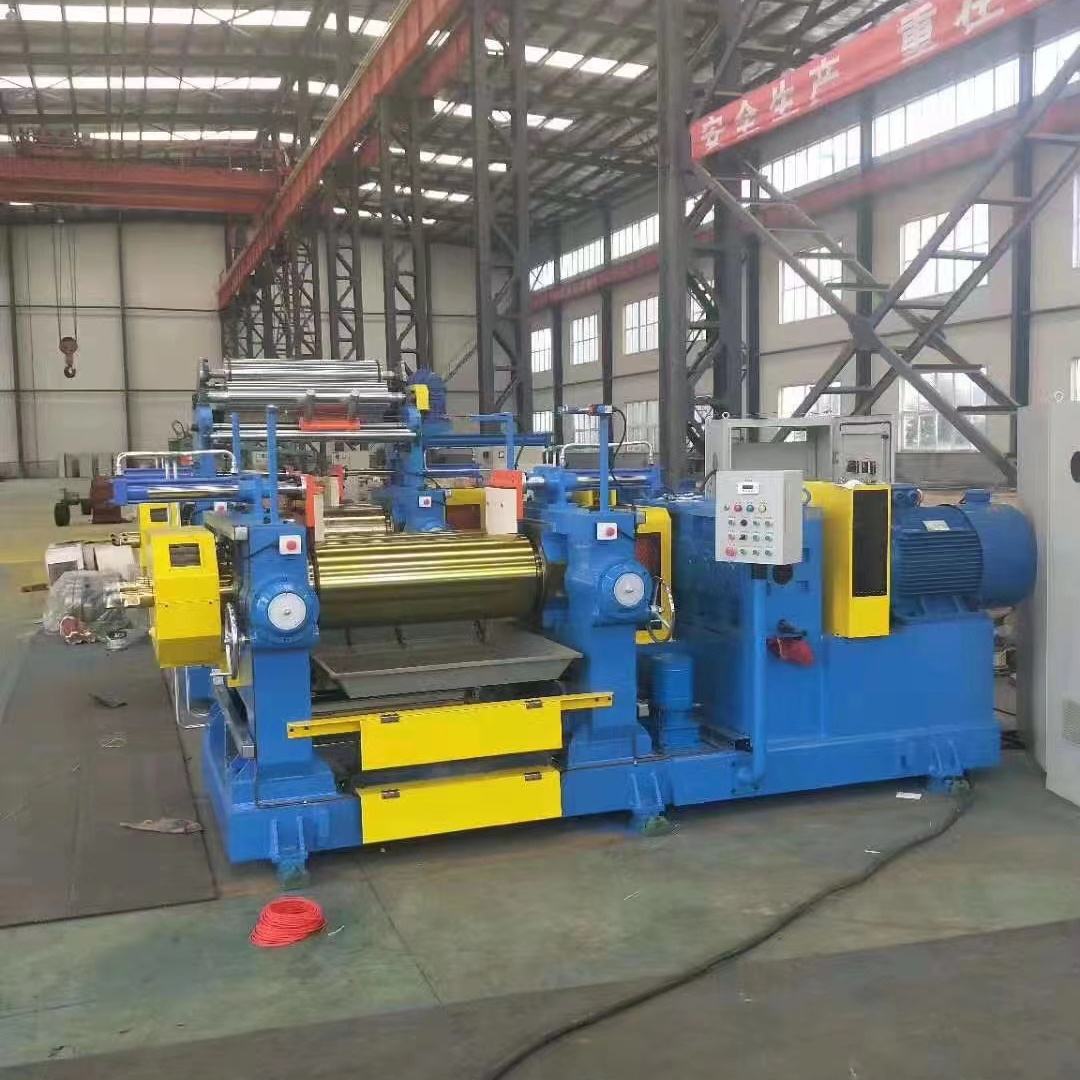

Product Pictures
Features & Parameter
| Model | XK-160 | XK-250 | XK-300 | XK-360 | XK-400 | XK-450 | XK-560 | XK-610 |
| Working diameter of F.&B.rolls(mm) | 160 | 250 | 300 | 360 | 400 | 450 | 560 | 610 |
| Working length of F.&B. rolls(mm) | 320 | 620 | 750 | 900 | 1000 | 1200 | 1500 | 2000 |
| Linear speed of F.roll(m/min) | 8.95 | 14.9 | 15.1 | 17.4 | 19.3 | 23 | 28.8 | 27 |
| Linear speed ratio of F.&B. rolls | 1:1.35 | 1:1.1 | 1:1.27 | 1:1.27 | 1:1.27 | 1:1.27 | 1:1.19 | 1:1.23 |
| Maximum Nip(mm) | 4.5 | 10 | 10 | 10 | 10 | 10 | 15 | 15 |
| Nip regulating mode | Manual or electric | |||||||
| Batch capacity(kg/batch) | 1-2 | 10-15 | 15-20 | 20-25 | 25-35 | 30-50 | 50-60 | 120-140 |
| Main motor power(kw) | 5.5 | 15 | 22 | 30 | 45 | 55 | 90/110 | 160 |
| Speed reducer | NGW planetary hardened-gear speed reducer | |||||||
| Overall dimension(mm) | ||||||||
| Weight(kg) | 1200 | 4200 | 5200 | 7600 | 9000 | 11500 | 20400 | 26500 |
