Quick Details
-
Voltage:
-
220V 50/60HZ
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
HG
-
Dimension(L*W*H):
-
2800(L)*1100(W)*1360(H)
-
Weight:
-
250 KG
-
Machinery Capacity:
-
60-200pcs/min
-
Name:
-
Automatic double side labeling machine
-
Advantage:
-
Economy but durable with good configuation
-
Thickness of object:
-
20-200mm
-
Label Length:
-
25-300mm
-
option:
-
with or without coding machine for date printing
-
keywords:
-
double side labeling machine
-
After Warranty Service:
-
Video technical support
Quick Details
-
Application:
-
APPAREL, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Textiles
-
Packaging Type:
-
Wooden box
-
Packaging Material:
-
Wood
-
Voltage:
-
220V 50/60HZ
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
HG
-
Dimension(L*W*H):
-
2800(L)*1100(W)*1360(H)
-
Weight:
-
250 KG
-
Machinery Capacity:
-
60-200pcs/min
-
Name:
-
Automatic double side labeling machine
-
Advantage:
-
Economy but durable with good configuation
-
Thickness of object:
-
20-200mm
-
Label Length:
-
25-300mm
-
option:
-
with or without coding machine for date printing
-
keywords:
-
double side labeling machine
-
After Warranty Service:
-
Video technical support

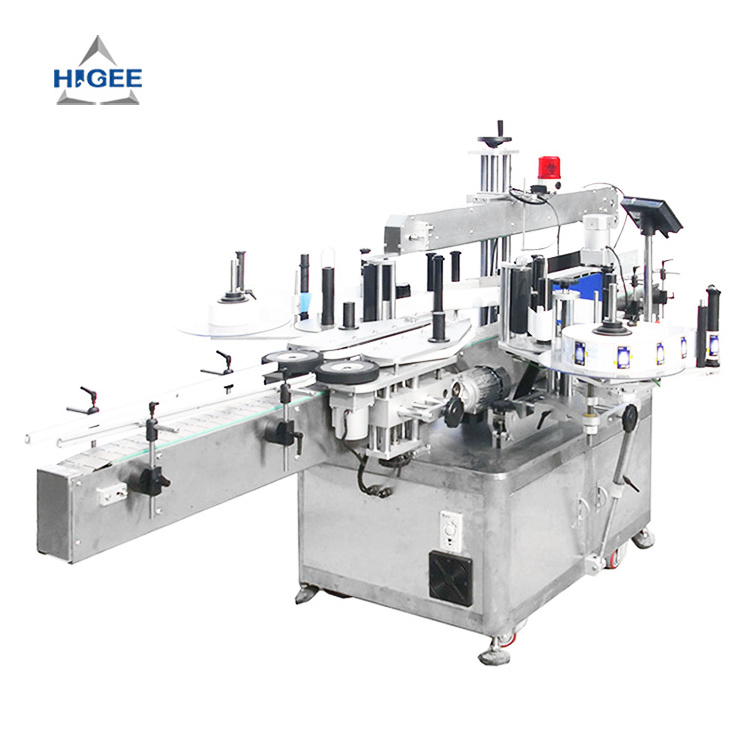

Automatic double side labeling machine,square bottle labeling machine,automatic labeler application front and back side labeling
Flat surface labeling machine
【a
uto label machine price 】【double sided label labeling machine] [factory price labeling machine]
sticker labeling machine/
labeller machinery automatic/glass bottle labeling machine
HIGEE VARIOUS LABELING SOLUTION FOR YOUR CHOICE
Product Description
Sticker Labeling Machine for Square Bottles or Flat Surface
--
double side labeling machine can simultaneously achieve double-sided circumferential surface labeling to satisfy the flat bottles, square bottles single-sided and double side labeling, widely used cosmetics industry, daily chemical industry.
-- Structure: With Side Labeling Device (single side or double side) + Option (with round bottle labeling device)
-- Advantage: stability system is used to fix the bottle body when labeling the front and back of the bottle body, labeling accurate and stable
1. HAS3500
-- Structure: With Side Labeling Device (single side or double side) + Option (with round bottle labeling device)
-- Advantage: stability system is used to fix the bottle body when labeling the front and back of the bottle body, labeling accurate and stable
|
Model
|
HAS3500
|
|
Size of Machine
|
2800(L)×1450(W)×1360(H)mm
|
|
Labeling Speed
|
60-200pcs/min
|
|
Height of Product
|
30-280mm
|
|
Diameter of Product
|
20-200mm
|
|
Height of Label
|
5-150mm
|
|
Length of Label
|
25-300mm
|
|
Accuracy of Labeling
|
±1mm
|
|
Label roll inside diameter
|
76mm
|
|
Label roller outside diameter
|
320mm
|
|
Options
|
Added for Round bottle labeling:
1. with roller belt
2. with three points roller
|
Famous brand Servo motor control. Ensure the stable running and good performance of the machine.
Bottle correction system is for making all bottles into a line, to ensure the label is applied on same position for each bottle.
Pressing system is for ensuring the bottle can stand firmly on the conveyor to get a high accurate labeling effect.
2. HAP200
--
flat labeling machine labeling on the top surface of different kind objects, such as box, carton, bags and so on.
-- Structure:
With Top Labeling Device
--
Advantage:
add a labeling head to label the top and bottom of the object at the same time
|
Model
|
HAP200
|
|
Size of Machine
|
1600(L)×550(W)×1600(H)mm
|
|
Labeling Speed
|
20-200pcs/min(depends on the size of product and label
|
|
Height of Product
|
30-200mm
|
|
Width of Product
|
15-110mm
|
|
Length of Label
|
25-300mm
|
|
Accuracy of Labeling
|
±0.8mm (excluding product and label error)
|
|
Label roller inside diameter
|
76mm
|
|
Label roller outside diameter
|
350mm
|
|
Options
|
1. With Double labeling heads
2. With Paging device
3. With label Folding device
4. With Top and Bottom Labeling
|
label sensor is normally for paper label, if your label is transparent or clear, we will change a sensor for it.
labeling head: one top labeling head for top labeling needs, can cusomized to one top&one bottom labeling head, two top labeling head to meets labeling needs for more sides.
paging device: paging device is suitable for automatic feeding of paper, envelope, plastic bags, etc. Thin and hard thing, to achieve high speed labeling.
3. HBP50
--
The machine is a table type semi-automatic machine suitable for different size of adhesive label or on all kinds of square bottle and flat surface container to self-adhesive labeling,High accuracy and high speed
-- Advantage:
simple operation, when changing the labeling of different diameter bottles, just move the card position
|
Model
|
HBP50
|
|
Size of Machine
|
440(L)×250(W)×600(H)mm
|
|
Labeling Speed
|
20-50pcs/min
|
|
Height of Product
|
30-180mm
|
|
Diameter of Product
|
20-180mm
|
|
Height of Label
|
15-100mm
|
|
Length of Label
|
25-100mm
|
|
Accuracy of Labeling
|
±0.5mm
|
|
Label roller inside diameter
|
76mm
|
|
Label roller outside diameter
|
280mm
|
manual labeling machine is suitable for all of flat surface product such as flat bottle,top products. Boxes etc.
semi automatic flat labeling machine ,we use famous brand of motor and Omron brand of magic eye part . more reliable and stable
manual top side labeling machine.small space ,more economic ,easy to operation .
Sticker Labeling Machine for
Round Bottles
4. HAY200
--
automatic round bottle labeling machine apply adhesive or sticker labels onto a wide variety of round containers, from small glass bottles to a larger tin cans made with most materials such as PVC, PET, ceramics etc
-- Structure:
With Roller Belt Device
--
Advantage:
It can increase the screw into the bottle for separating bottles at the entrance, with high precision
|
Model
|
HAY200
|
|
Size of Machine
|
2200(L)×1100(W)×1300(H)mm
|
|
Labeling Speed
|
20-200 bottles/min (Depends on the size of label and bottle)
|
|
Height of Product
|
30-280mm
|
|
Diameter of Product
|
30-150mm
|
|
Height of Label
|
15-140mm
|
|
Length of Label
|
25-300mm
|
|
Accuracy of Labeling
|
±1mm (excluding the error of bottle and label)
|
|
Inside diameter of Label roller
|
76mm
|
|
Outside diameter of Label roller
|
320mm
|
screw bottle separator, to make the bottle more evenly distributed when labeling
Taiwan brand of Servo motor device ,ensure the stable running and good reliable of the machine
spoker device can make sure all of the bottles into a line , to ensure the label is applied on the same position for each bottle .
5. HDY200
--
It is one of the round bottle labeling machine, be specially used to label, can be for one piece or double pieces, front and back label can be flexible adjustment. Has function to label for taper bottle. Select setting up position fixed mechanism, can be true for labeling at a fixed place.
-- Structure:
With Three Point Roller Device
--
Advantage:
fixed position device fixed bottle body, high labeling accuracy
|
Model
|
HDY200
|
|
Size of Machine
|
2000(L)×1000(W)×1250(H)mm
|
|
Labeling Speed
|
20-40pcs/min
|
|
Height of Product
|
30-200mm
|
|
Diameter of Product
|
30-90mm
|
|
Height of Label
|
15-140mm
|
|
Length of Label
|
25-300mm
|
|
Accuracy of Labeling
|
±0.5mm
|
|
Label roller inside diameter
|
76mm
|
|
Label roller outside diameter
|
380mm
|
6. HBY50
--
Semi-automatic round labeling machine for labeling of various sizes rounded objects, mainly hosts, feeder, delivery, bottles positioning mechanism. By manually positioning mechanism into the bottle, the bottle after the positioning, press handle switch will automatically label on the bottle.
-- Advantage:
with the use of timing belt traction, the mechanical stability is greatly improved
|
Model
|
HBY50
|
|
Labeling Speed
|
20-50bottles/min
|
|
Height of Project
|
30-200mm
|
|
Diameter of Project
|
30-90mm
|
|
Height of Label
|
15-180mm
|
|
Length of Label
|
25-300mm
|
|
Accuracy of Labeling
|
±0.5mm
|
|
Label roller inside diameter
|
76mm
|
|
Label roller outside diameter
|
280mm
|
|
Option
|
with coding machine for date printing
|
7. HAW200
--
horizontal labeling machine, suit for samll round shape products that can not stand stably on conveyor when labeling, such as ampoule ,vials,blood collection tube, pen,sausage.
-- Structure:
With Top Roller Belt Device
--
Advantage:
suitable for labeling of small cylindrical bottles, the minimum diameter of the bottle body should be ≥9.5mm, accuracy of labeling ±0.5mm
|
Model
|
HAW200
|
|
Size of Labeling Machine
|
1900(L)×750(W)×1650(H)mm
|
|
Labeling Speed
|
60-200pcs/min (Depends on label and bottle size)
|
|
Height of Product
|
25-95mm
|
|
Diameter of Product
|
12-25mm
|
|
Height of Label
|
20-90mm
|
|
Length of Label
|
25-80mm
|
|
Label Roller Inside Diamete
|
76mm
|
|
Label Roller Outside Diameter
|
360mm
|
|
Accuracy of Labeling
|
±0.5mm
|
automatic feeding: the feeder can put the bottles automatically on the conveyor, save the time and manpower.
roller: roller shape can be change, the labeling position is at the entrance of the roller to make sure every label is applied nicely and correctly on the bottles.
conveyor: conveyor is make of small rollers, so one machine is just suitable for one diameter of bottles, of course, there is a compatible range of diameter, normally ±5mm will be no problem.
