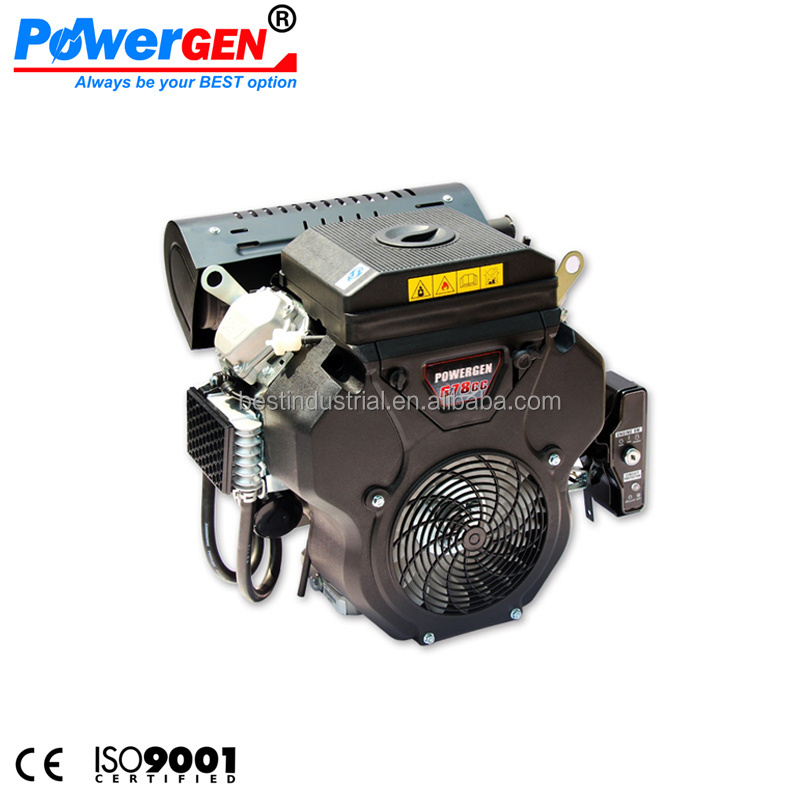

Best Seller!!! POWERGEN Air Cooled Electric Start 4 Stroke Horizontal Shaft V Twin 2 Cylinder 22HP Gasoline Engine
Best Seller!!! POWERGEN Air Cooled Electric Start 4 Stroke Horizontal Shaft V Twin 2 Cylinder 22HP Gasoline Engine
Best Seller!!! POWERGEN Air Cooled Electric Start 4 Stroke Horizontal Shaft V Twin 2 Cylinder 22HP Gasoline Engine
Best Seller!!! POWERGEN Air Cooled Electric Start 4 Stroke Horizontal Shaft V Twin 2 Cylinder 22HP Gasoline Engine
Best Seller!!! POWERGEN Air Cooled Electric Start 4 Stroke Horizontal Shaft V Twin 2 Cylinder 22HP Gasoline Engine
Best Seller!!! POWERGEN Air Cooled Electric Start 4 Stroke Horizontal Shaft V Twin 2 Cylinder 22HP Gasoline Engine
Best Seller!!! POWERGEN Air Cooled Electric Start 4 Stroke Horizontal Shaft V Twin 2 Cylinder 22HP Gasoline Engine
Best Seller!!! POWERGEN Air Cooled Electric Start 4 Stroke Horizontal Shaft V Twin 2 Cylinder 22HP Gasoline Engine

Best Seller!!! POWERGEN Air Cooled Electric Start 4 Stroke Horizontal Shaft V Twin 2 Cylinder 22HP Gasoline Engine

FOB Reference Price: Get Latest Price
≥1 Pieces
US $550
Free Inquiry
Customized Request
Contact us For product pricing, customization, or other inquiries:
Contact Us
  • Product Details
  • {{item.text}}

Quick Details

Dimension(L*W*H):
455x400x450
Weight:
45KG
Warranty:
1 year
Certification:
CE,ISO,EPA
Advantage:
Low Fuel Consumption

Quick Details

Place of Origin:
Fujian, China
Brand Name:
POWERGEN
Model Number:
BG680E
Dimension(L*W*H):
455x400x450
Weight:
45KG
Warranty:
1 year
Certification:
CE,ISO,EPA
Advantage:
Low Fuel Consumption
Product Description
Specifications of Gasoline Engine 22HP
Model No.
BG680E
Engine Type
Air-cooled, 4-stroke, V-twin 2 Cylinder, OHV
Bore x Stroke (mm)
78x71
Displacement (cc)
678
Compression Ratio
8.5:1
Peak Power (HP/RPM)
22/3600
Idle speed (RPM)
1500 +/-150
PTO shaft rotation
Anti-clockwise(from PTO side)
Speed fluctuation ratio
<10%
Max. Torque (N.M/RPM)
43.5/2500
Fuel Consumption (g/kW.H)
<374
Spark Plug
F7TC
Crank Shaft
1"
Ignition system
Transistorized magneto ignition
Starting System
Electric/Key Start
Lubrication system
Splash
Governor system
Centrifugal mass type
Air cleaner
Semi-dry, dual element
Oil capacity (L/gal.)
1.2/0.32
Carburetor
Butterfly
Dimensions (LxWxH)mm
510 x 400 x 450 (with muffler)
Net weight (Kgs)
43

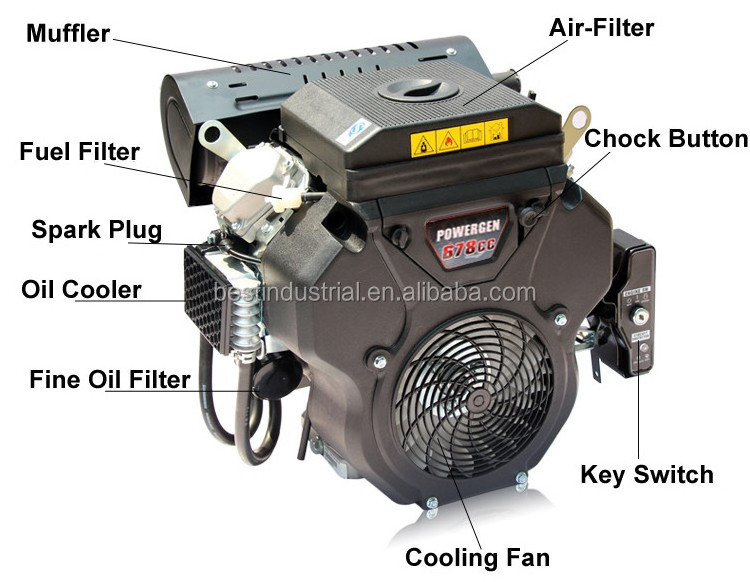

Features

ENGINE SWITCH


OiL COOLER


* Lowering the oil temperature.

SECONDARY OiL FILTRATION SYSTEM



MUFFLER


COOLING FAN

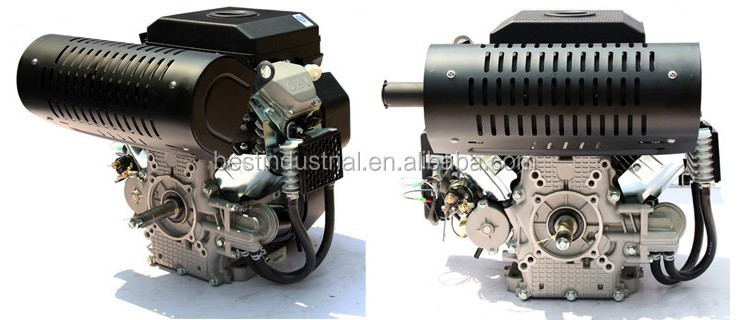

Diagram and Shaft
Packing
Packaging
Size (mm)
600 (L) * 450 (W) * 500 (H)
Gross Weight
52Kg



Packaging
Details


1) Inner Packaging: Polybag & Foam
2) Outer Packaging: Wooden Case
3) Wrapping tape
