Quick Details
-
Injection Rate (g/s):
-
2 g/s
-
Injection Weight (g):
-
1 g
-
Screw diameter (mm):
-
1 mm
-
Weight (KG):
-
40 kg
-
Place of Origin:
-
China
-
Open Stroke(mm):
-
1 mm
-
Model Number:
-
LM1100
-
Brand Name:
-
Lamieux
-
Power (kW):
-
11 kW
-
LPM Application:
-
Flat Cable, Connectors, LED, Micro Switch
-
LPM Size:
-
44 * 36 * 51 cm
-
LPM Weight:
-
40 kg
-
LPM Packing:
-
Styrofoam inside, Carton outside
-
LPM Color:
-
Depends
-
LPM Engine Type:
-
Air Pressure Power
-
LPM Place of Origin:
-
TAIWAN
-
LPM OEM Service:
-
Available
-
LPM Feature:
-
Short cycle time
-
LPM Advantage:
-
Increase efficiency of production
Quick Details
-
Ejector Stroke(mm):
-
5 mm
-
Ejector Force(kN):
-
100 kN
-
Theoretical Shot Volume(cm³):
-
1 cm³
-
Injection Rate (g/s):
-
2 g/s
-
Injection Weight (g):
-
1 g
-
Screw diameter (mm):
-
1 mm
-
Weight (KG):
-
40 kg
-
Place of Origin:
-
China
-
Open Stroke(mm):
-
1 mm
-
Model Number:
-
LM1100
-
Brand Name:
-
Lamieux
-
Power (kW):
-
11 kW
-
LPM Application:
-
Flat Cable, Connectors, LED, Micro Switch
-
LPM Size:
-
44 * 36 * 51 cm
-
LPM Weight:
-
40 kg
-
LPM Packing:
-
Styrofoam inside, Carton outside
-
LPM Color:
-
Depends
-
LPM Engine Type:
-
Air Pressure Power
-
LPM Place of Origin:
-
TAIWAN
-
LPM OEM Service:
-
Available
-
LPM Feature:
-
Short cycle time
-
LPM Advantage:
-
Increase efficiency of production
Products Description
Range of Application:
For small production, Desktop Type,
Design for Cable or Small Part Molding

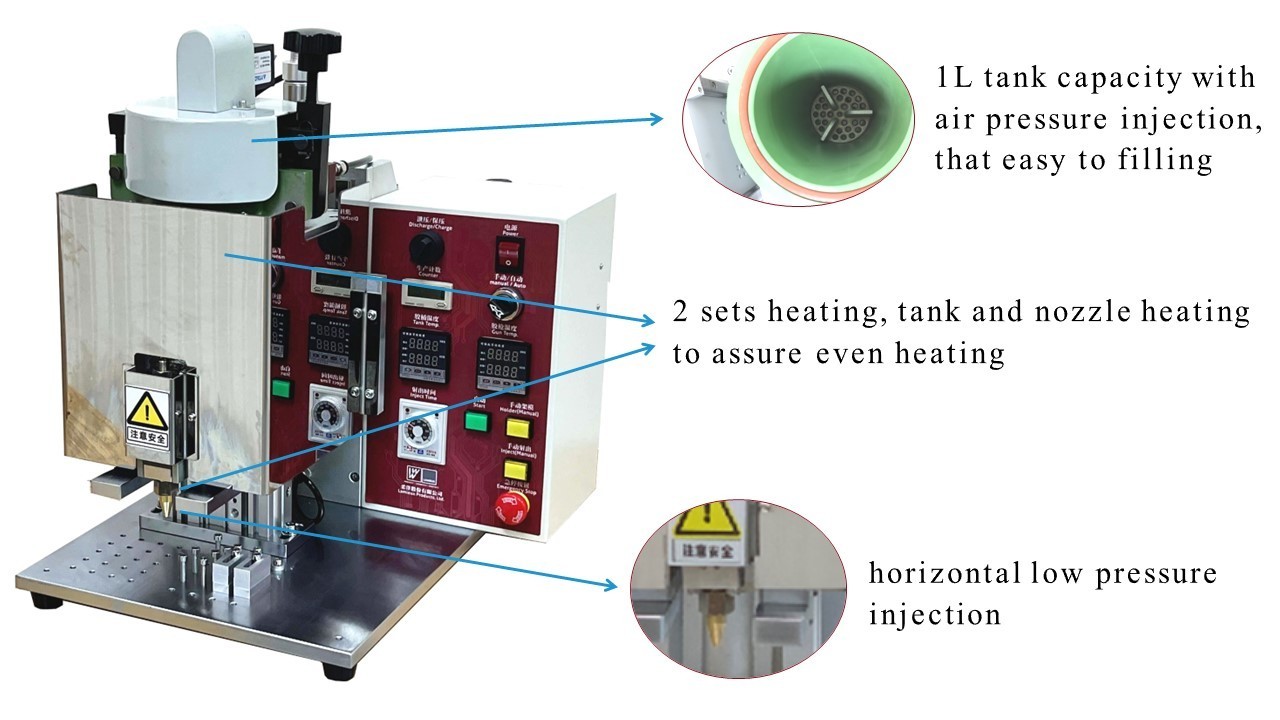

Feature：
1. Light and handy, small size, easy to move.
2. Easy to open the tank and filling raw material, convenient and safty to operate.
3. Pneumatic power system.
4. Easy to maintenance with simple structure.
5. Air pressure and flow can be adjusted.
6. Effective melting rate.
7. Failure rate is very low.
8. Wide range of operating temperature can be choosen.
Control Panel

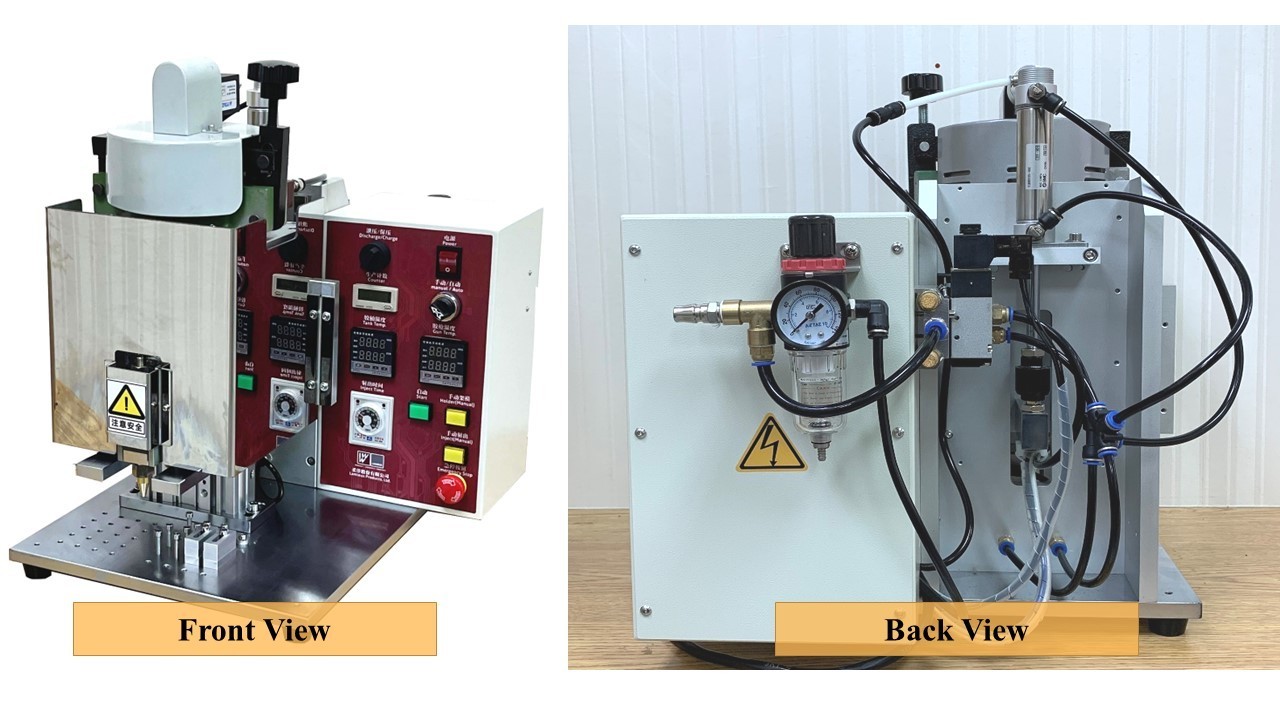

Machine Size
Parameter
|
Item
|
|
Specification
|
|
|
|||
|
Tank Capacity
|
|
1 Liter
|
|
|
|||
|
Max. Melting Rate
|
|
2.5kg
/ h
|
|
|
|||
|
Max. Operation Temp.
|
|
250℃
|
|
|
|||
|
Max. Closing Force
|
|
50kg
|
|
|
|||
|
Air Pressure
|
|
5~6kg/cm²
|
|
|
|||
|
Max. Viscosity
|
|
20,000CPS
|
|
|
|||
|
Nozzle Quantity
|
|
1 Set
|
|
|
|||
|
Size (L*W*H)
|
|
440*360*510mm
|
|
|
|||
|
Weight
|
|
40kg
|
|
|
|||
|
Power
|
|
1100 Watt
|
|
|
|||
|
Power Requirements
|
|
AC 220V/ 6A 50/60 Hz 1.0φ
|
|
|
|||
