Quick Details
-
Type:
-
Automatic Transfer Switch for Generator
-
Certificates:
-
IEC, CCC, CE
-
Feature:
-
Double complex Contact,Zero Arc,distinct on&off Position indicator
-
Pole:
-
3P,4P
-
Voltage:
-
400V
-
Max current:
-
160-250A
-
Operation type:
-
Auto&Manual, or Manual
-
Quality guarantee:
-
3Years
-
Change over time:
-
Less than 800A 1S/0.5S, 800A~300A1.2S/2.4S
-
COC:
-
China, Automatic change-over switch
-
Certification:
-
IEC, CCC, CE
-
Max. Current:
-
3200A
-
Max. Voltage:
-
400V
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Xinchi/OEM
-
Model Number:
-
SQ5
-
Type:
-
Automatic Transfer Switch for Generator
-
Certificates:
-
IEC, CCC, CE
-
Feature:
-
Double complex Contact,Zero Arc,distinct on&off Position indicator
-
Pole:
-
3P,4P
-
Voltage:
-
400V
-
Max current:
-
160-250A
-
Operation type:
-
Auto&Manual, or Manual
-
Quality guarantee:
-
3Years
-
Change over time:
-
Less than 800A 1S/0.5S, 800A~300A1.2S/2.4S
-
COC:
-
China, Automatic change-over switch
-
Certification:
-
IEC, CCC, CE
-
Max. Current:
-
3200A
-
Max. Voltage:
-
400V
About Suntree

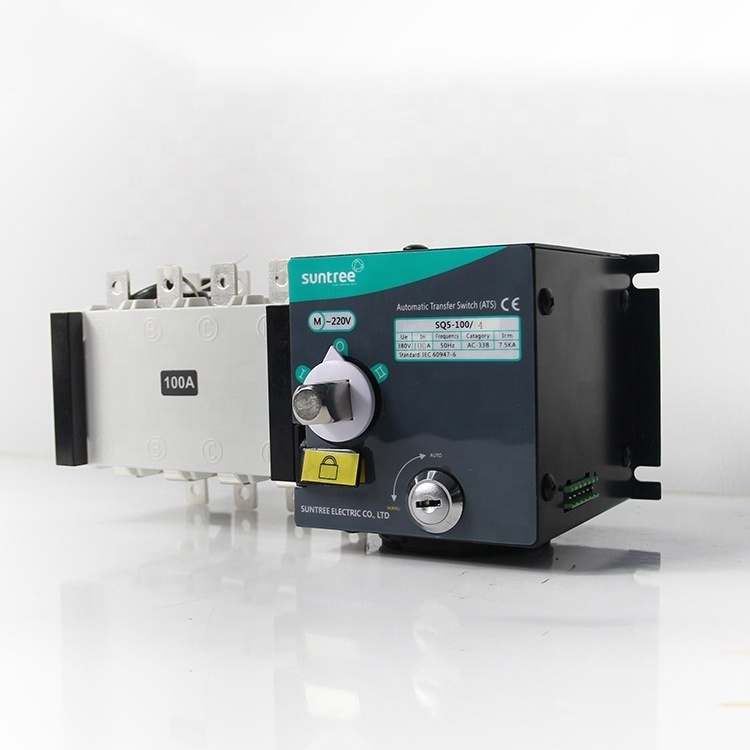

SQ5 Description
|
Conventional thermal current lth A
|
|
|
SQ5 Series
|
|
|
||||
|
Rated current ln(A)
|
|
|
63A
|
80A
|
100A
|
||||
|
Rated impulse withstand voltage Ui(A)
|
|
|
500
|
500
|
500
|
||||
|
Dielectric strength(V)
|
|
|
3000
|
3000
|
5000
|
||||
|
|
380A
|
AC-31
|
63
|
80
|
100
|
||||
|
|
|
AC-33
|
40
|
63
|
80
|
||||
|
|
|
AC-35
|
63
|
80
|
100
|
||||
|
|
220A
|
DC-31
|
63
|
80
|
100
|
||||
|
|
|
DC-33
|
40
|
63
|
80
|
||||
|
|
|
DC-35
|
63
|
80
|
100
|
||||
|
Motor power P(380V)kW
|
|
|
30
|
30
|
32
|
||||
|
Rated breaking capbility(A Rms)AC33 380V
|
|
|
500
|
640
|
800
|
||||
|
Rated making capability(A Rms)AC33 380V
|
|
|
630
|
800
|
1000
|
||||
|
Rated short-current making capability lcm(kA peak value)
|
|
|
10
|
10
|
10
|
||||
|
Electric durability
|
|
COSφ=0.65 AC33
|
2000
|
2000
|
2000
|
||||
|
Change-oner time
|
|
I-0-II or II-0-I (s)
|
1
|
1
|
1
|
||||
|
|
|
I-0 or II-0 (s)
|
0.5
|
0.5
|
0.5
|
||||
|
Power wer consumption of electrical control
|
|
24V(DC)(w)
|
25
|
25
|
25
|
||||
|
Moment of operation(Nm)
|
|
|
25
|
25
|
25
|
||||
