Quick Details
-
Brand Name:
-
TEAM WORK
-
Model Number:
-
XLPP - I
-
Max. Current:
-
5A
-
Product name:
-
BELT-SWAY-SWITCH
-
Output mode and quantity:
-
2*SPDT
-
Certificate:
-
CE ISO
-
Ambient temperature:
-
(-40℃~ 50℃)
-
Relative humidity:
-
0 ~ 95%
-
Contact rating:
-
AC380V 5A DC24V 5A
-
Protection level:
-
IP67
-
Atmospheric pressure:
-
80 kPa ~110kPa
-
Action force:
-
75~100N
-
First-level action angle:
-
15°
Quick Details
-
Whether the smart:
-
Yes
-
Max. Voltage:
-
AC380V 5A DC24V 5A
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
TEAM WORK
-
Model Number:
-
XLPP - I
-
Max. Current:
-
5A
-
Product name:
-
BELT-SWAY-SWITCH
-
Output mode and quantity:
-
2*SPDT
-
Certificate:
-
CE ISO
-
Ambient temperature:
-
(-40℃~ 50℃)
-
Relative humidity:
-
0 ~ 95%
-
Contact rating:
-
AC380V 5A DC24V 5A
-
Protection level:
-
IP67
-
Atmospheric pressure:
-
80 kPa ~110kPa
-
Action force:
-
75~100N
-
First-level action angle:
-
15°
Recommend Products
Products Description

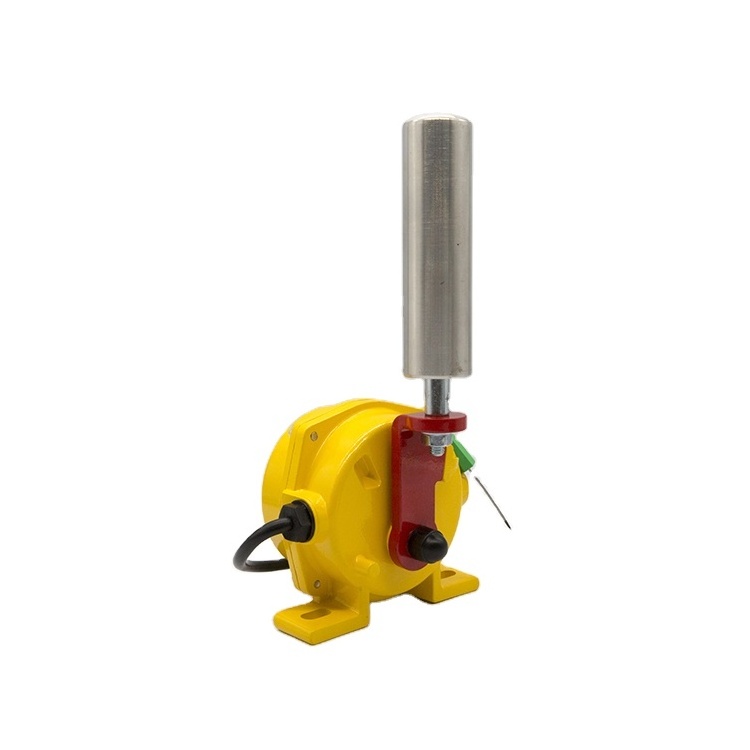

Belt sway switch can prevent material overflow or belt damage caused by belt sway by detecting the belt. This product is easy to install, reliable performance, It is widely used in the field of belt conveyor.
Characteristic
Adopt high-strength A-alloy precise die-casting shell, with strong impact resistant capability.
Adopt two-level action mode of light sway and heavy sway.
The shell has high protection level, good sealing, and can be used in harsh environment.
Large contact capacity, sensitive action and reliable performance.
|
Ambient temperature
|
-40℃~50℃
|
|
Relative humidity
|
0~95%
|
|
Atmospheric pressure
|
80 kPa ~110kPa
|
|
Electrical life
|
>100,000times
|
|
Output mode and quantity
|
2×SPDT
|
|
Contact rating
|
AC380V 5A DC24V 5A
|
|
Action force
|
75~100N
|
|
First-level action angle
|
15°
|
|
Second-level action angle
|
30°
|
|
Limit angle
|
75°
|
|
Reset mode
|
Automatic
|
|
Protection level
|
IP67
|
