Quick Details
-
Weight (KG):
-
500
-
Voltage:
-
220V, 380V 50/60hz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Qisheng
-
Dimension(L*W*H):
-
4000*2000*2100mm
-
Product Name::
-

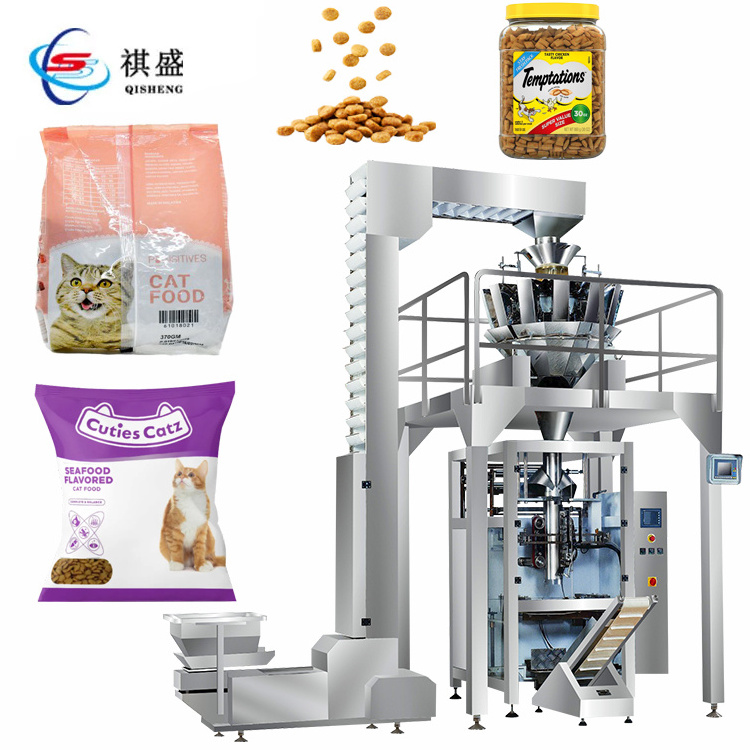

vertical pet food packaging machine
-
Packing Bag Size:
-
standard:L: 100-350mm W : 60-20 0mm Customized
-
Accuracy:
-
±1g (≤100g) / ± 1%( >100g) according to material
-
Feeding System:
-
According to packing material
-
Usage:
-
Bag Making Filling Sealing
-
Control system:
-
PLC+touch Screen Multifunction multi-language
-
Machine Surface material:
-
304-Stainless steel
-
Marketing Type:
-
New Product 2020
Quick Details
-
Function:
-
FILLING, Wrapping, Labeling, Sealing, counting, Bag-feeding
-
Packaging Type:
-
Stand-up Pouch, Bags, Film, Pouch, Zipper Bag,M pouch etc
-
Packaging Material:
-
Plastic, Paper
-
Weight (KG):
-
500
-
Voltage:
-
220V, 380V 50/60hz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Qisheng
-
Dimension(L*W*H):
-
4000*2000*2100mm
-
Product Name::
-
vertical pet food packaging machine
-
Packing Bag Size:
-
standard:L: 100-350mm W : 60-20 0mm Customized
-
Accuracy:
-
±1g (≤100g) / ± 1%( >100g) according to material
-
Feeding System:
-
According to packing material
-
Usage:
-
Bag Making Filling Sealing
-
Control system:
-
PLC+touch Screen Multifunction multi-language
-
Machine Surface material:
-
304-Stainless steel
-
Marketing Type:
-
New Product 2020
| Type | ESS-420A | Bag length | 60-200mm(L) |
| Bag width | 30-300mm(W) | Film width | 420mm |
| Film material | OPP/CPP,OPP/PE,PET/LLDPE | Film Thickness | 0.04-0.20mm |
| Speed | 5-60 bags/min | Weight range | 30-1000g |
| Pressure | 0.65Mpa | Air consumption | 0.65Mpa 0.3m³/min |
| Power | 220V/60Hz single/3 phase | Power | 2.2kw |
| Machine size | (L)1217mm×(w)1015mm×(H)1500mm | Machine weight | 500kg |
| Total powder | Z machine(1kw)+ten head weigh(1.5kw)+the host(2.2kw)+product conveying machine 0.45kw=5.15kw | Total hight | 2.3m |
