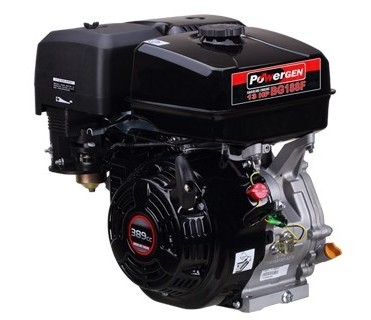

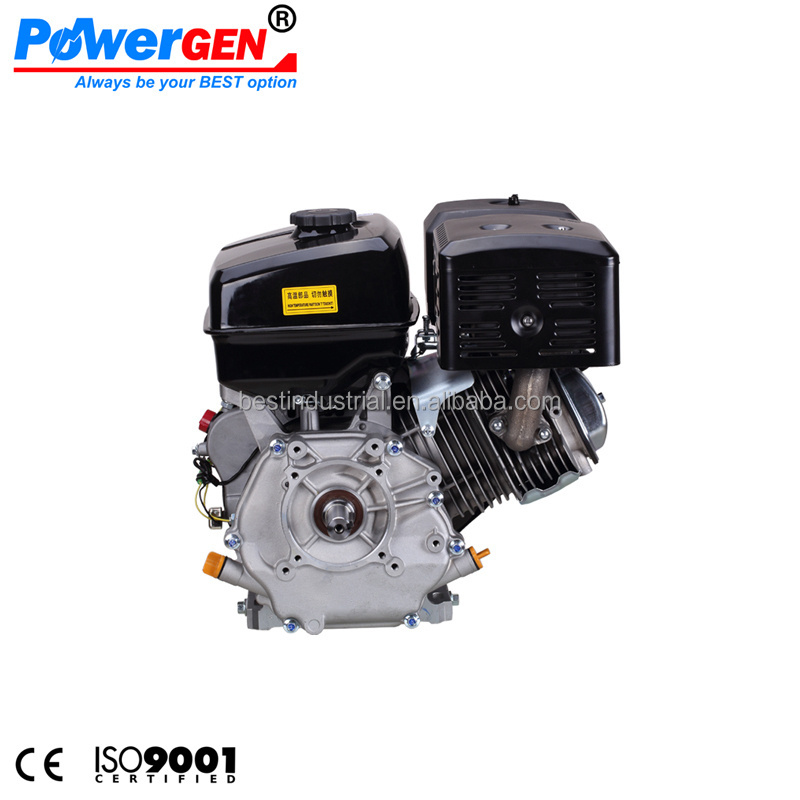

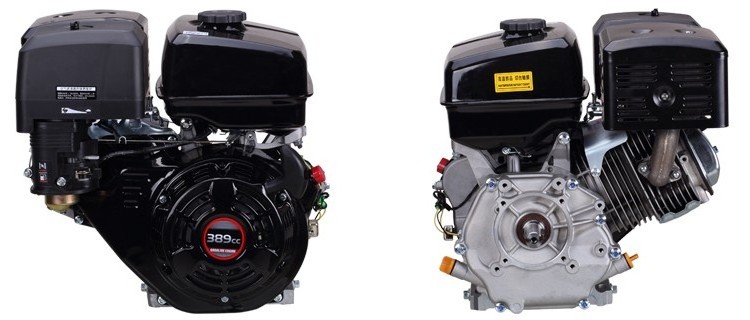

Top Seller!!! POWERGEN 389CC Air-cooled Single Cylinder 4 stroke 13HP Gasoline engine
Top Seller!!! POWERGEN 389CC Air-cooled Single Cylinder 4 stroke 13HP Gasoline engine
Top Seller!!! POWERGEN 389CC Air-cooled Single Cylinder 4 stroke 13HP Gasoline engine
Top Seller!!! POWERGEN 389CC Air-cooled Single Cylinder 4 stroke 13HP Gasoline engine
Top Seller!!! POWERGEN 389CC Air-cooled Single Cylinder 4 stroke 13HP Gasoline engine
Top Seller!!! POWERGEN 389CC Air-cooled Single Cylinder 4 stroke 13HP Gasoline engine
Top Seller!!! POWERGEN 389CC Air-cooled Single Cylinder 4 stroke 13HP Gasoline engine
Top Seller!!! POWERGEN 389CC Air-cooled Single Cylinder 4 stroke 13HP Gasoline engine

Top Seller!!! POWERGEN 389CC Air-cooled Single Cylinder 4 stroke 13HP Gasoline engine

FOB Reference Price: Get Latest Price
≥1 Sets
US $150
Free Inquiry
Customized Request
Contact us For product pricing, customization, or other inquiries:
Contact Us
  • Product Details
  • {{item.text}}

Quick Details

Dimension(L*W*H):
450x405x443
Weight:
31/34kgs
Warranty:
1 year
Certification:
CE,EP
Advantage:
Lower Fuel Consumption

Quick Details

Place of Origin:
Fujian, China
Brand Name:
POWERGEN
Model Number:
BG188F
Dimension(L*W*H):
450x405x443
Weight:
31/34kgs
Warranty:
1 year
Certification:
CE,EP
Advantage:
Lower Fuel Consumption
Product Description
Specifications of Gasoline Engine 13HP
Model No.
BG188F
Engine Type
Single cylinder,4stroke, forced cooling ,OHV25°inclined
Bore x Stroke (mm)
88x64
Displacement (cc)
389
Compression Ratio
8.1:1
Peak Power (HP/RPM)
13/3600
PTO shaft rotation
Anti-clockwise(from PTO side)
Net torque
25.1N.m/2500rpm
Idle speed
1400±150r/min
Ignition system
Transistorized magneto ignition
Starting System
Recoil start/Electic-start
Lubrication system
Splash
Governor system
Centrifugal mass type
Air cleaner
Semi-dry, dual element
Carburetor
Butterfly
Oil capacity (L)
1.1
Fuel tank capcity
6.5
Dimensions (LxWxH)mm
405 x 450 x 443
Net weight (Kgs)
Recoil Start only: 31;  with Electric Starter: 34
Features

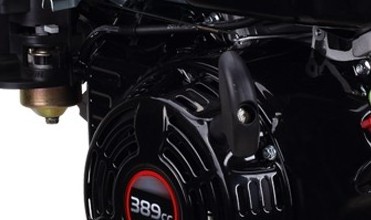

EASY START



LOW OIL LEVEL SHUT DOWN


EXCELLENT DESIGN

PTO Shaft & Curve
Packing
Packaging
Size (mm)
500 (L) * 450 (W) * 480 (H)
Gross Weight
34Kg (Recoil Start)



Packaging
Details


1) Inner Packaging: Polybag & Foam
2) Outer Packaging: Carton
3) Wrapping tape
