- Product Details
- {{item.text}}
Quick Details
-
Graphic Format Supported:
-
AI, BMP, DXF, PLT, GIF/JPEG/PCX/TGA/TIFF/PLT/CDR/DMG/PAT/CDT/CLK/DEX/CSL/CMX/WPG/WMF
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Shenhui Laser
-
Dimension(L*W*H):
-
1900*1550*1080mm
-
Weight (KG):
-
465 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Laser Power:
-
80w 100w 130w (optional)
-
Control Configuration:
-
DSP
-
Data Transfer Interface:
-
USB(offline)
-
System Environment:
-
WINDOWS2000/WINDOWS XP/Vista/Win7/Win8
-
Operating Temperature:
-
5°C-35°C
-
Cutting Thickness:
-
0-10mm(depends on different materials)
-
Product name:
-

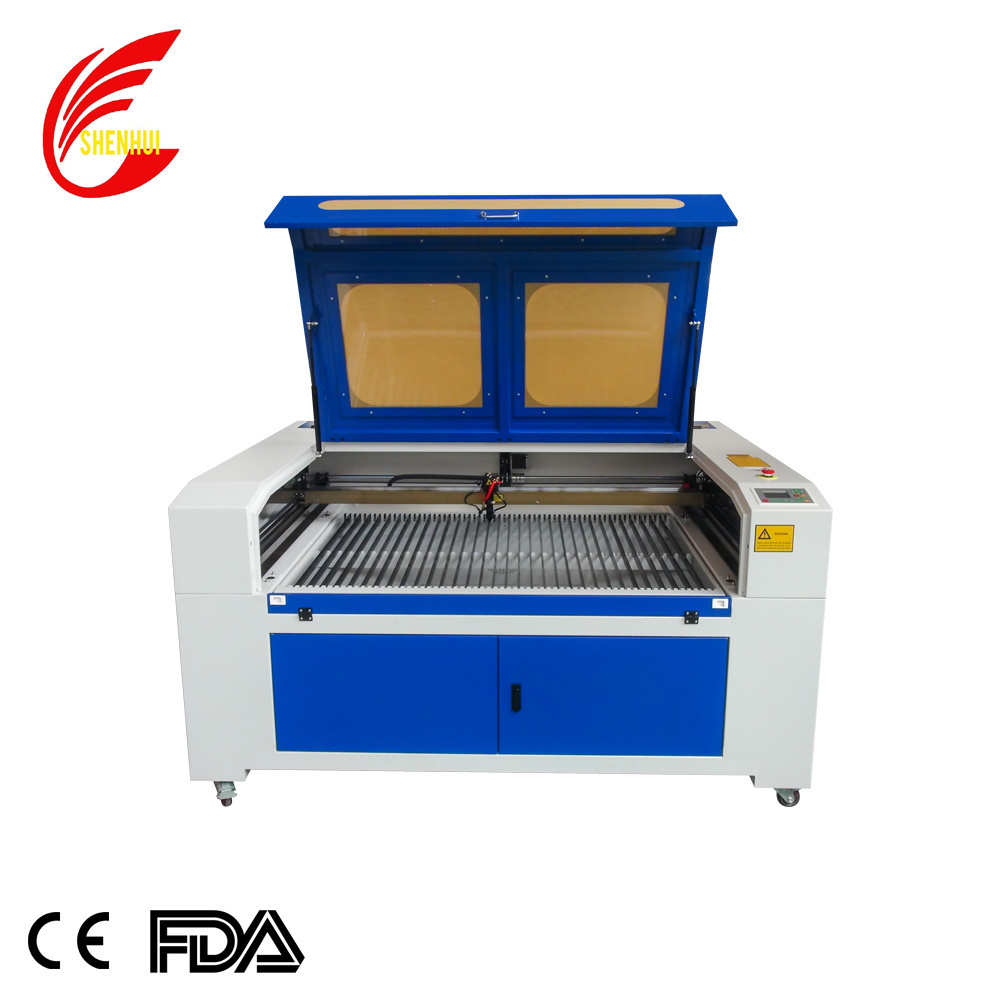

C02 Laser Engraving Cutting Machine
-
Min Shaping Character:
-
character:2x2mm ,letter::1x1.mm
Quick Details
-
Engraving Area:
-
900*1300mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
0-30000mm/min
-
Graphic Format Supported:
-
AI, BMP, DXF, PLT, GIF/JPEG/PCX/TGA/TIFF/PLT/CDR/DMG/PAT/CDT/CLK/DEX/CSL/CMX/WPG/WMF
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Shenhui Laser
-
Dimension(L*W*H):
-
1900*1550*1080mm
-
Weight (KG):
-
465 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Laser Power:
-
80w 100w 130w (optional)
-
Control Configuration:
-
DSP
-
Data Transfer Interface:
-
USB(offline)
-
System Environment:
-
WINDOWS2000/WINDOWS XP/Vista/Win7/Win8
-
Operating Temperature:
-
5°C-35°C
-
Cutting Thickness:
-
0-10mm(depends on different materials)
-
Product name:
-
C02 Laser Engraving Cutting Machine
-
Min Shaping Character:
-
character:2x2mm ,letter::1x1.mm
SH-G570 Wine bottle cork engraver cutter laser machinery from China
Product Description
| Laser Power | 60w/80w(reci brand is optional) |
| Laser Type | Hermetic CO2 glass tube |
| Power Supply | AC220±10% 50HZ/AC110±10% 60HZ |
| Working Area | 500*700mm |
| Max Moving Speed | 0-40000mm/min |
| Worktable | Fixed/ up/down worktable |
| Locating Precision | <0.01 mm |
| Min Shaping Character | Character:3*3mm,letter:2*2mm |
| Resolution Ratio | ≤4500 dpi |
| Control Configuration | DSP |
| Data Transfer Interface | USB (offline) |
| System Environment | WINDOWS 2000/ XP/ Vista/ Win7 |
| Cooling Way | Water cooling |
| Graphic Format Supported | Files which CoreDraw.Photoshop.AutoCAD can identify |
| Compatible Software | CoreIDraw,AutoCAD |
| Cutting Thickness | 0-10 mm (depends on different materials) |
| Color Separation | Separation of cutting up to 256 colors |
| Sloping Engraving | Yes,slop can be designed discretionarily |
| Cuts off the Water Supply the Protection | Yes |
| Machine Dimension | 1480*1000*1170 mm |
| Package Dimension | 1600*1080*1250 mm |
| Net Weight | 200 kg |
| Gross Weight | 360 Kg |
| Optional Parts |
- Laser Engraving software Package (English Version)
- User Manual (CD)
- Water pipe/Air pump, Water pump
- Communication cable
- Inner hexagon spanner
- Double sticky tape paper
Suggested Parameter
| Materials | Power | Mode | Speed(mm/s) | Output(%) | Interval |
| Painted metal matrial | 60w | Scan | 200 | 28-30 | 0.08 |
| 40w | 350 | 15-18 | 0.08 | ||
| 40w | Cut | 6 | 85-90 | ||
| 80w EFR | Scan | 350 | 20-20 | 0.08 | |
| 80W EFR | Cut | 14 | 85-90 | ||
| leather | 40W | Scan | 300 | 11-11 | 0.08 |
| 40W | Cut | 15 | 35 | ||
| 80W EFR | Cut | 80 | 25-25 | ||
| Denim fabric | 40W | Cut | 50 | 50-50 | |
| 40W | Scan | 350 | 10-10 | 0.1 | |
| 80W EFR | Scan | 350 | 16-16 | 0.1 | |
| 80W EFR | Cut | 70 | 35-35 | ||
| 3mm plywood | 40W | Cut | 15 | 65-70 | |
| 40W | Dot | 30 | 9-9 | ||
| 40W | Scan | 350 | 15-15 |
0.08
|
FAQ
Sample making vedio
Package & shipping
| Model | L*W*H | Volume(m³) | Weight |
| SH-K40 | 96*60*40CM | 0.23 | 45kg |
| SH-G350 | 107*76*71CM | 0.58 | 100KG |
| SH-G4040 | 106*86*36CM | 0.35 | 50KG |
| SH-G460 | 160*95*88CM | 1.4 | 160KG |
| SH-G460D | 150*120*130cm | 2.4 | 260kg |
| SH-G570 | 132*100*115CM | 1.52 | 200KG |
| SH-G690 | 160*136*130CM | 2.83 | 320KG |
| SH-G1060 | 174*166*130CM | 3.75 | 420KG |
| SH-G1290 | 191*160*130CM | 4.00CM | 400KG |
| SH-G1390 | 200*190*130CM | 5.00CM | 460KG |
| SH-G1610 | 250*200*140CM | 7.00CM | 700KG |
