Quick Details
-
Ejector Force(kN):
-
111 kN
-
Theoretical Shot Volume(cm³):
-
1810 cm³
-
Injection Rate (g/s):
-
700 g/s
-
Injection Weight (g):
-
1646 g
-
Screw Speed (rpm):
-
1 - 150 rpm
-
Screw diameter (mm):
-
80 mm
-
Weight (KG):
-
15000 kg
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
710 mm
-
Brand Name:
-
LOG
-
Power (kW):
-
37 kW
-
Product name:
-

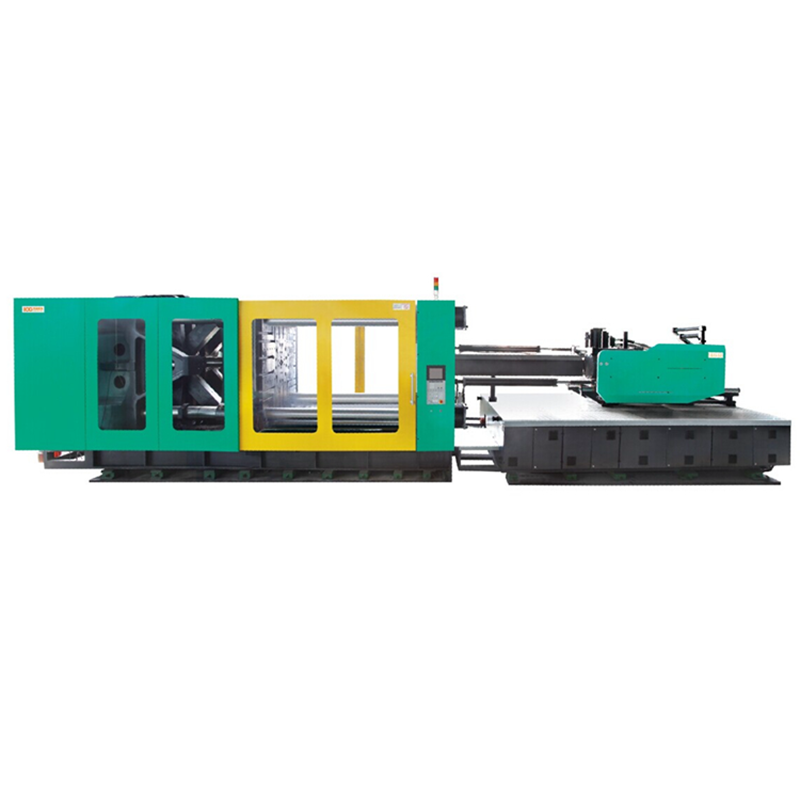

High Quality Good Material Mini Plastic Injection Molding Moulding Mac
Quick Details
-
Distance between Tie Bars(Width)(mm):
-
770mm
-
Distance between Tie Bars(Height)(mm):
-
705mm
-
Ejector Stroke(mm):
-
185 mm
-
Ejector Force(kN):
-
111 kN
-
Theoretical Shot Volume(cm³):
-
1810 cm³
-
Injection Rate (g/s):
-
700 g/s
-
Injection Weight (g):
-
1646 g
-
Screw Speed (rpm):
-
1 - 150 rpm
-
Screw diameter (mm):
-
80 mm
-
Weight (KG):
-
15000 kg
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
710 mm
-
Brand Name:
-
LOG
-
Power (kW):
-
37 kW
-
Product name:
-
High Quality Good Material Mini Plastic Injection Molding Moulding Mac
| LOG PLASTIC INJECTION MOLDING MACHINE | ||
|
MODEL
NO. |
Tie-Bar
Distance (mm) |
B Screw
Injection Weight (g) /PS |
| LOG-90 | 360X360 | 144 |
| LOG-110 | 405X370 | 175 |
| LOG-130 | 410X410 | 239 |
| LOG-160 | 460X460 | 298 |
| LOG-210 | 510X510 | 429 |
| LOG-250 | 560X530 | 625 |
| LOG-300 | 610X590 | 845 |
| LOG-320 | 710X655 | 1120 |
| LOG-400 | 770X705 | 1646 |
| LOG-500 | 830X830 | 1919 |
| LOG-650 | 930X900 | 2488 |
| LOG-800 | 1030X940 | 2907 |
| LOG-900 | 1080X1030 | 3571 |
| LOG-1100 | 1150X1100 | 5403 |
