Quick Details
-
Model Number:
-
flex pcb with metal dome-230423002
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM ODM flex PCB
-
Copper Thickness:
-
1/2 oz to 3 oz
-
Min. Hole Size:
-
0.1mm
-
Min. Line Width:
-
0.04mm
-
Min. Line Spacing:
-
0.04mm
-
Surface Finishing:
-
hard gold plating, ENIG, HASL / OSP as request
-
Product name:
-

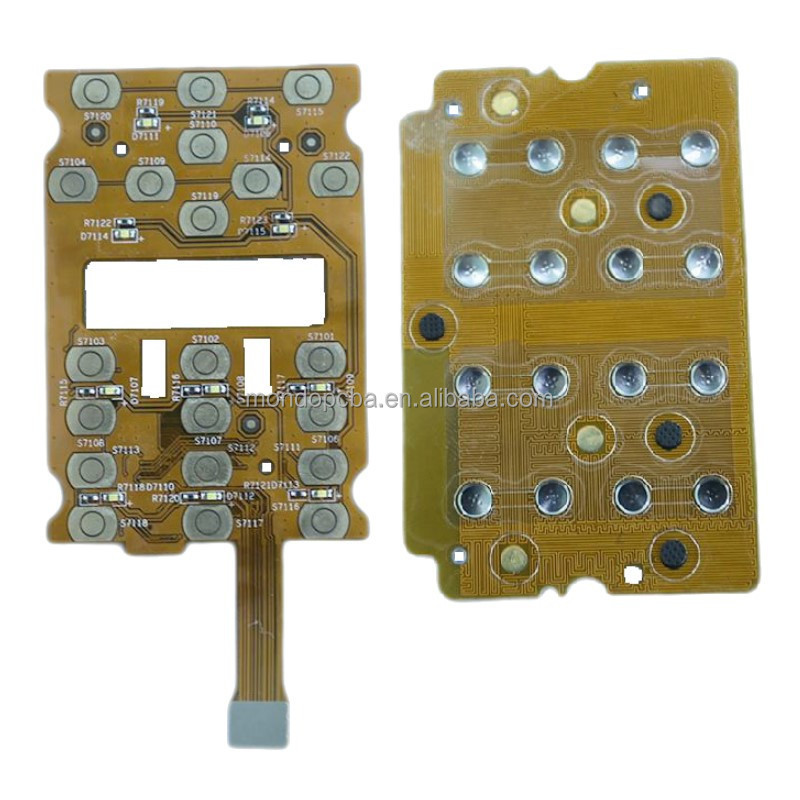

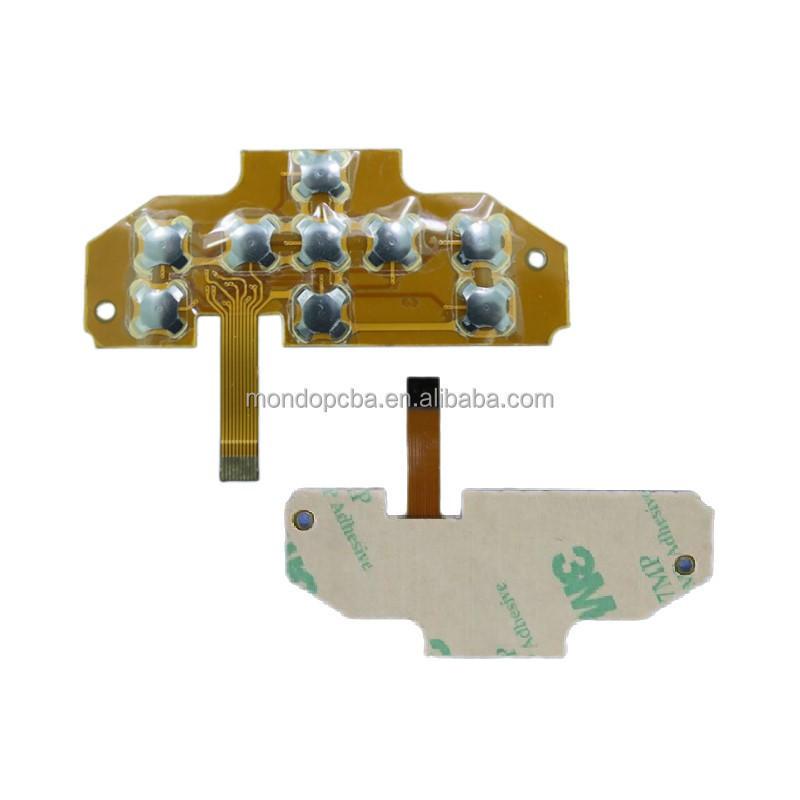

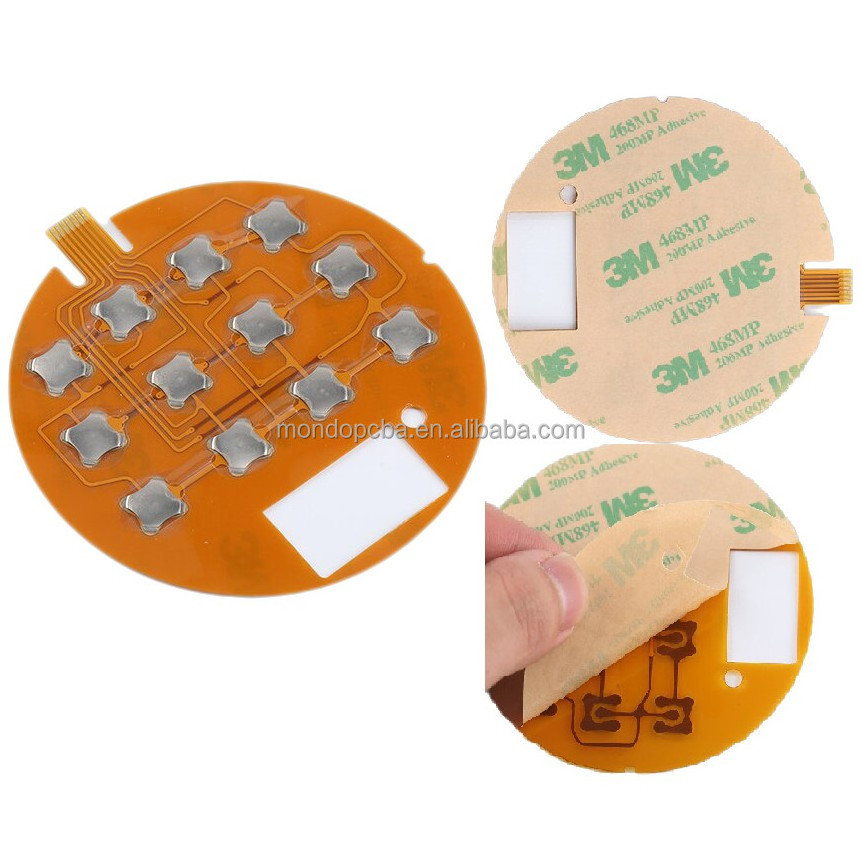

flexibility PCB double layer flexible PCB board with metal dome
-
Application:
-
Consumer Electronics, metal dome button panel switch
-
Board thickness:
-
0.08mm-1mm
-
Max Board Size:
-
400mmX800mm
-
PTH Hole dia. tolerance:
-
0.05mm
-
NPTH Hole dia. tolerance:
-
0.075mm
-
Solder mask color:
-
Blue.green.red.black.white.etc
-
Certificate:
-
ISO9001, ISO14001
-
Outline profile:
-
Punching / Laser cut / Drilled
Quick Details
-
Base Material:
-
polyimide
-
Board Thickness:
-
0.08mm to 0.5mm
-
Board Size:
-
customize flexible printed circuit board
-
Model Number:
-
flex pcb with metal dome-230423002
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM ODM flex PCB
-
Copper Thickness:
-
1/2 oz to 3 oz
-
Min. Hole Size:
-
0.1mm
-
Min. Line Width:
-
0.04mm
-
Min. Line Spacing:
-
0.04mm
-
Surface Finishing:
-
hard gold plating, ENIG, HASL / OSP as request
-
Product name:
-
flexibility PCB double layer flexible PCB board with metal dome
-
Application:
-
Consumer Electronics, metal dome button panel switch
-
Board thickness:
-
0.08mm-1mm
-
Max Board Size:
-
400mmX800mm
-
PTH Hole dia. tolerance:
-
0.05mm
-
NPTH Hole dia. tolerance:
-
0.075mm
-
Solder mask color:
-
Blue.green.red.black.white.etc
-
Certificate:
-
ISO9001, ISO14001
-
Outline profile:
-
Punching / Laser cut / Drilled
customize flexible print circuit board metal dome flex pcb assembly for membrane switch
Product Description
| NO. | FPC, flexible printed circuit board | Manufacture capacity |
| 1 | Layer Counts | 1-8Layer |
| 2 | Base Material | Polyimide/polyeter |
| 3 | Copper foil thickness | 1oz / 1/2oz / 1/3oz |
| 4 | PI thickness | 25μm / 12.5μm |
| 5 | Board thickness | 0.08mm-0.5mm |
| 6 | Adhesive | 13μm |
| 7 | Max. board size | 400*800 mm |
| 8 | Product thickness tolerance | ±0.03mm |
| 9 | Min. Hole Diameter | 0.1mm |
| 10 | Min.Line Width/ Distance | 0.04mm |
| 11 | Etching tolerance | ±0.015mm |
| 12 | PTH Hole dia. tolerance | ±0.03mm |
| 13 | NPTH Hole dia. tolerance | ±0.05mm |
| 14 | Outline Dimension tolerance | ±0.075mm |
| 15 | Stiffener material type | ±0.075mm PI / FR4 / PET / Steel piece |
| 16 | Outline profile | Punching / Laser cut / Drilled |
| 17 | Surface finish | HASL / OSP / ENIG /ENIG+OSP/ Immersion silver/Tin/Ni |
| 18 | Solder mask color | Multi-color |
| 19 | Silkscreen color | White/Black |
| 20 | Acceptable file format | CAD / Gerber file / powerpcb / Autocad Orcad/ P-cad / CAM-350 / CAM2000 |
