Quick Details
-
Rated power::
-
20A / 4500W
-
Working Frequency::
-
45-65Hz
-
Weight:
-
60g
Quick Details
-
Measuring Range:
-
6.5-100 (V)
-
Working voltage::
-
6.5~100V
-
Test voltage::
-
6.5~100V
-
Rated power::
-
20A / 4500W
-
Working Frequency::
-
45-65Hz
-
Weight:
-
60g
-
- 1. electrical parameter measurement function (voltage, current, power, energy).
- 2. The voltage alarm function (over voltage alarm thresholds, backlighting and voltage flicker tips).
- 3. The power button clear function.
- 4. Power-down data storage function.

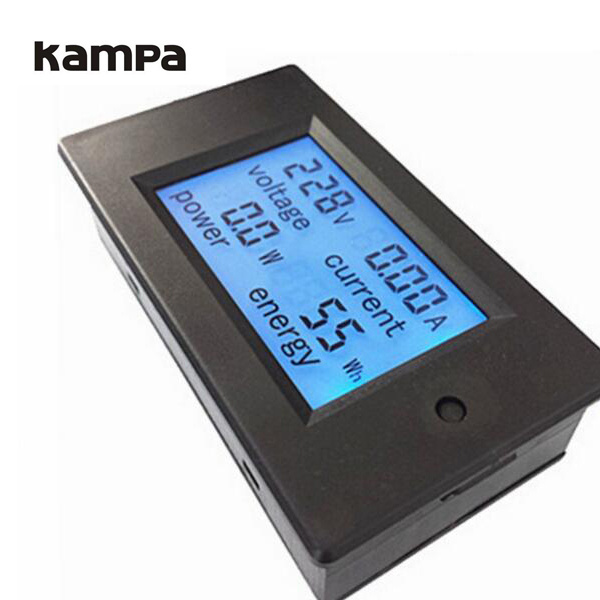

- 5. Large-screen LCD screen full display function (display voltage, current, power, energy).
- 6. backlight.
- Display voltage, current, power, energy parameters from the large-screen LCD screen simultaneously.
- By short press the button to turn on or off the backlight, the backlight status automatic storage.
- Step 1: Press the button until the power area show "CLr" character, then release the button;
- Step 2: At this point in the power consumption flashing indicating the current status is cleared, if short press the button again, the
- consumption data is cleared and cleared quit flashing
- Step 3: If no key is pressed within five seconds, it means that the power does not clear the data and exit cleared.
- Step 1: Press the button until the power area show "SET" character, then release the button;
- Step 2: After entering this state, the voltage of the high pressure area shows the current alarm value, the current area displays the current value of low pressure alarm, and the least significant bit starts flashing, then you can press the button through the +1 bit short, when there is no button operation When more than three seconds, the automatic adjustment of the position switch from high pressure to low pressure alarm alarm value has a value, a total of six, the scope voltage alarm threshold set for the 6.5 ~ 99.9V;
- Step 3: After setting, press the button until the display shows "PASS" character indicates the setting is successful and automatically exit the setting mode.
- 1. This module is suitable for indoor, not outdoor
- 2. applied load can not exceed the rated voltage and current.
- 3. The wiring order can not be wrong.
- 1. Working voltage: 6.5 ~ 100VDC
- 2. Test voltage: 6.5 ~ 100VDC
- 3. Rated power: 20A / 2000W
- 4. Measurement accuracy: 1.0
