Quick Details
-
Travel (X Axis)(mm):
-
400 mm
-
Travel (Y Axis)(mm):
-
400 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Spindle Motor Power(kW):
-
2.2kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Yidiao
-
Voltage:
-
220V
-
Weight (KG):
-
300
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
X Y axis working area:
-
400*400mm
-
Z axis working area:
-
100mm
-
Structure material:
-
aluminum alloy
-
Spindle power:
-
2.2KW water cooling spindle
-
Spindle max rotate speed:
-
20000rpm
-
Motor:
-
servo motor or stepper
-
Transmission mode:
-
Ball screw + Rack rail
-
Carving command:
-
G code( .tap. nc format)
-
G code output software( for tool path):
-
JDpaint, artcam, wentai
Quick Details
-
Working Table Size(mm):
-
400×400
-
Machine Type:
-
CNC Router
-
Positioning Accuracy (mm):
-
0.05 mm
-
Travel (X Axis)(mm):
-
400 mm
-
Travel (Y Axis)(mm):
-
400 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Spindle Motor Power(kW):
-
2.2kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Yidiao
-
Voltage:
-
220V
-
Weight (KG):
-
300
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
X Y axis working area:
-
400*400mm
-
Z axis working area:
-
100mm
-
Structure material:
-
aluminum alloy
-
Spindle power:
-
2.2KW water cooling spindle
-
Spindle max rotate speed:
-
20000rpm
-
Motor:
-
servo motor or stepper
-
Transmission mode:
-
Ball screw + Rack rail
-
Carving command:
-
G code( .tap. nc format)
-
G code output software( for tool path):
-
JDpaint, artcam, wentai
Product Description
Parameters & Sample
| Description | Parameter |
| X,Y Working Area | 300*300mm/ 400*400mm |
| Z Working Area | 100mm |
| Resolution | +0.01mm |
| Lathe Structure | Cast-iron structure |
| X,Y Structure | Rack and gear |
| Z Structure | TBI ball screw, |
| Hiwin square guide rail | |
| Max. Idling Speed | 8m/min |
| Spindle | 2.2KW |
| Spindle Rotate Speed | 0-24000r/min, variable speed |
| Inverter | Fuling |
| Working Voltage | AC220V/50Hz,Single Phase |
| Working Mode | Sub-division Stepper motor |
| Driver | Leadshine860 |
| Command | G code,HPGL,U00,mmg,plt |
| Operating System | Ncstudio or DSP with USB interface |
| Diameter of cutter | φ3.175-φ12.7mm |
| Cooling Mode | Water-cooling |
| Work-holding | By Clamp |
| Net Weight | 300KGS |
| Gross Weight | 350KGS |

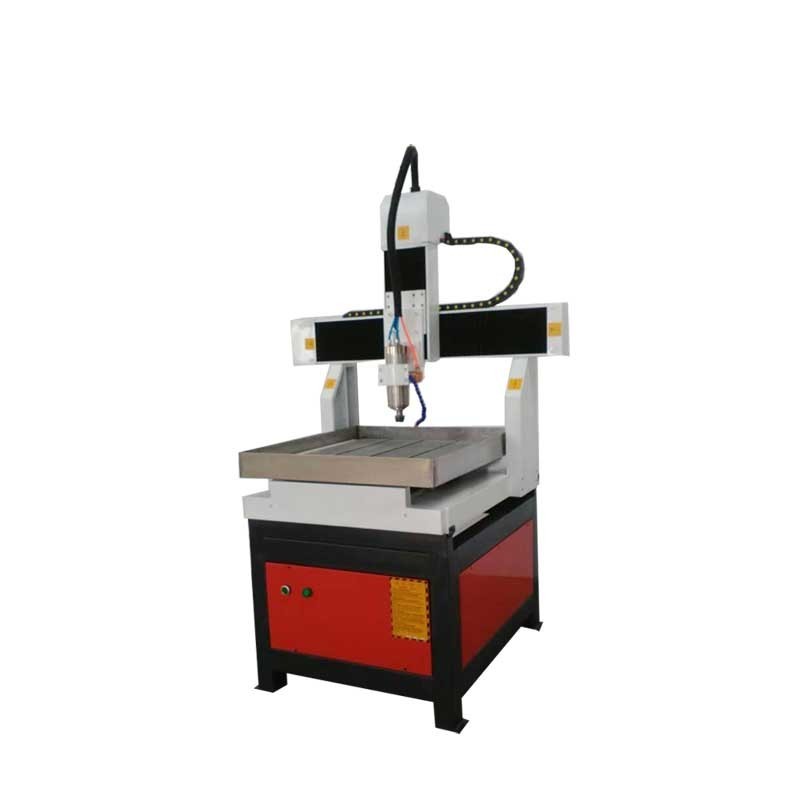

Detail Pictures
